• 8 •
• Wire size must be large enough for the AC ampere rating of charger, as specied:
Length of cord (feet) 25 50 100 150
AWG* size of cord 18 18 18 16
*AWG-American Wire Gauge
9. ASSEMBLY INSTRUCTIONS
9.1 Remove all cord wraps and uncoil the cables prior to using the battery charger.

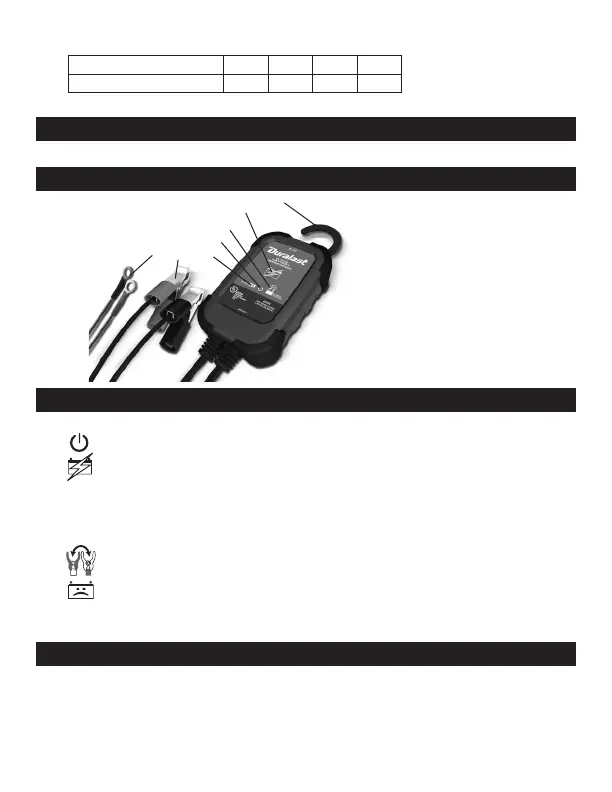

10. FEATURES
1. Ring connectors
(quick-connect)
2. Battery clamps
(quick-connect)
3. Bad Battery LED
4. Power LED
5. Clamps Reversed LED
6. Charging Status LED
7. Hook attachment
2
3
4
5
6
7
1
11. CONTROL PANEL
LED INDICATORS
POWER (green) LED lit: The charger is connected to AC power.
CHARGING STATUS INDICATOR:
Yellow/orange LED lit: The charger is charging the battery.
Yellow/orange LED ashing: The charger is in abort mode.
Green LED pulsing: The battery is fully charged and the charger is in
maintain mode.
CLAMPS REVERSED (red) LED ashing: The connections are reversed.
BAD BATTERY (red) LED lit: The charger has detected a problem
with the battery. See Troubleshooting for more information.
NOTE: See Operating Instructions for a complete description of the charger modes.
12. OPERATING INSTRUCTIONS
IMPORTANT: Do not start the vehicle with the charger connected to the AC outlet,
or it may damage the charger and your vehicle.
NOTE: This charger is equipped with an auto-start feature. Current is supplied
to the battery clamps before a battery is connected, and the clamps may spark if
touched together.
