3SI-188 (8•07)
KEY MODEL MODEL
NUMBER 80 140 DESCRIPTION
1 70.102 40.1030 Shower Base
2 70.207 40.210 Threshold
3 42.309 42.309 Strainer
44242Drain Seal
5 80.140 80.140 Drain Body
6 32.214 32.214 Sealing Washer - 1/16”
7 42.319 42.319 Sealing Washer - 1/8”
8 32.207 32.207 Fiber Washer
9 42.305 42.305 Locknut
Note: For missing or replacement parts, contact Mustee
Customer Service @216.267.3100
PARTS LIST
PART NUMBER
P

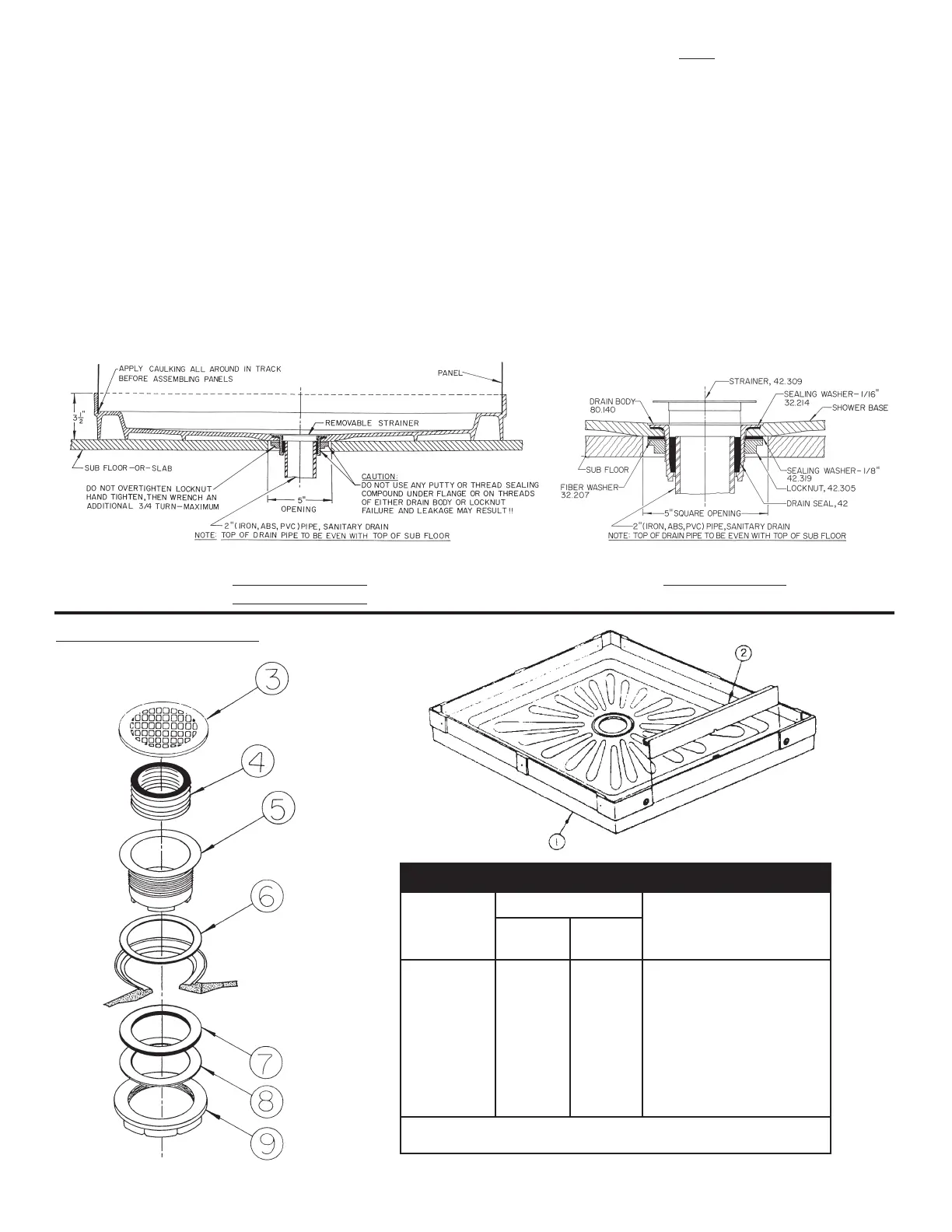

ARTS ILLUSTRATION
SECTIONAL
VIEW
STANDARD BASE
DRAIN SECTION
NOTICE: Standard Base is for use with Mustee free-standing cabinets only! NOT for “built-in” alcoves!
STANDARD BASE
A. Check shower base carefully making sure it is not damaged. Refer to the “rough-in” drawing and
determine location of shower base.
B. Assemble drain to shower base (see illustration) using all washers provided. Do not use any putty or thread
sealant on either drain body or locknut. Hand tighten locknut, then wrench an additional 3/4 turn – maximum.
C. Provide a 5” square opening in sub-floor or slab. This opening is to be located at center of shower base
location. Drain connection requires a 2” waste pipe (Schedule 40 PVC-DWV). Top of waste pipe must be
even with top of sub-floor or slab.
D. Place shower base directly on sub-floor or slab. Make sure it is level!
E. Seal waste by installing drain seal around 2 inch waste pipe. Tamp in place to bottom of drain body using a
1/4 inch diameter rod. Make sure top of drain seal is even with top of 2” waste pipe as shown in sectional
view and in full compliance with local code regulations pertaining to below floor waste connections.
