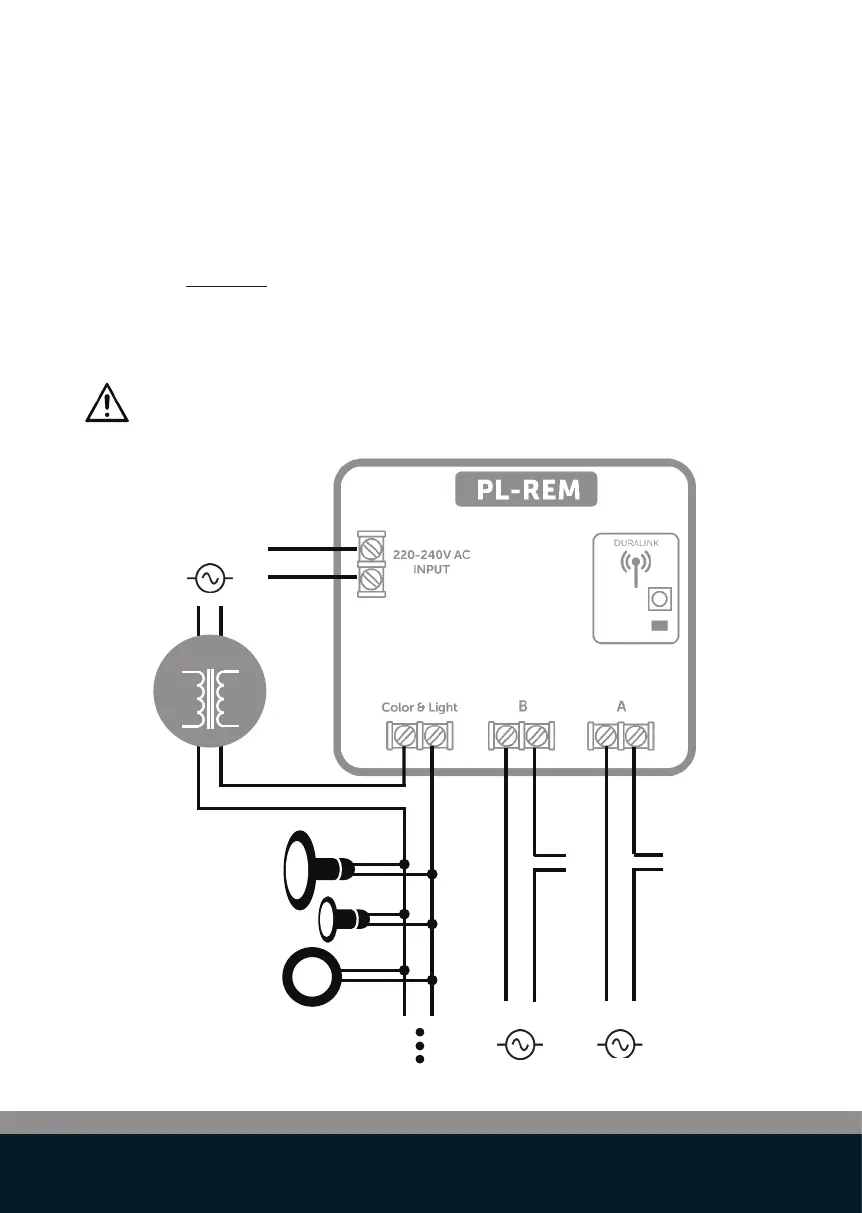

Option 2: PL-REM in transformer secondary
• Connect a 230VAC power source to the “220-240VAC INPUT”
terminal
• Connect the secondary circuit of a 12VAC transformer (sold sepa-
rately) in series with the “Color&Light” terminal of the PL-REM.
The “Color&Light” relay contact has an output of 14A, or 170W on a 12V
transformer secondary (14Ax12V). The total load of pool lights can not
exceed this.
Optional: The “Switch A” & “switch B” terminals can be used to control
auxiliary circuits like a pool cover or garden lights.
230VAC
Garden lights
Pool cover
230VAC
230VAC
12VAC
