DUROMAX XP15000E - Generator Components; Component Identification and Function

9. Ground
Terminal
3. 120V 3 Prong
Twist Lock

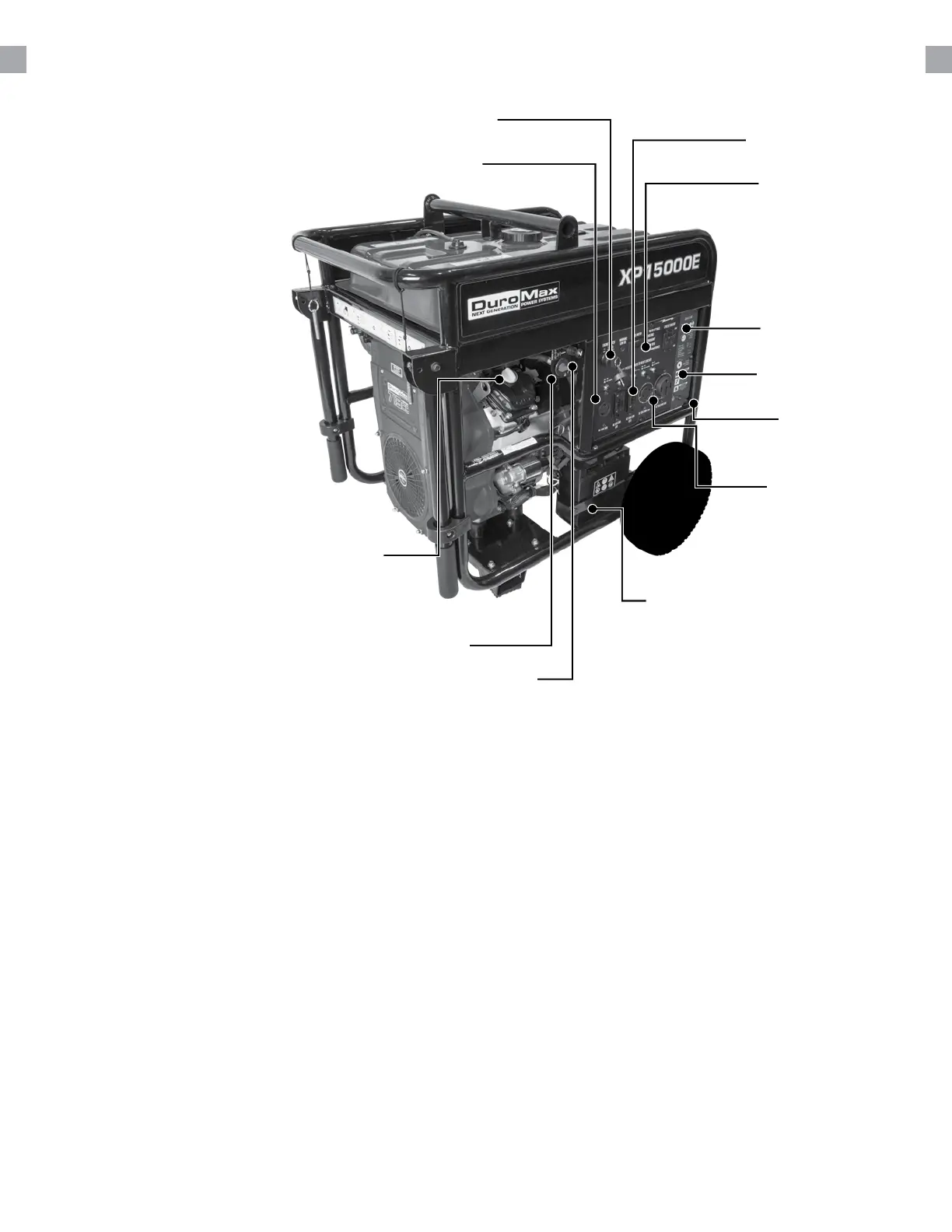

GENERATOR COMPONENTS
12
14. Oil Fill and Dipstick
1. Propane Connector – Connects the LPG tank to the LPG Regulator.
2. Engine Switch – 3 Position Switch to “Start”, “Run”, or turn “O” the generator.
3. 120v 3-Prong Twist Lock - Use to connect electrical devices that run 120 Volt, 60 Hz, single
phase, AC current (L5-30).
4. Fuel Select Switch - Use to select generator fuel source.
5. 120v 3-Prong Receptacle - Use to connect electrical devices that run 120 Volt, 60 Hz, single
phase, AC current (NEMA 5-20).
6. Digital Volt Meter/Hour Meter - Provides reading of voltage output and tracks operating
hours.
7. Circuit Breaker - Resettable switch that protects the generator from electrical overload.
8. 120/240v 4-Prong Receptacle - Use to connect electrical devices that run 120 or 240 Volt, 60Hz,
single phase, AC current (NEMA 14-50).
9. Ground Terminal - Connect a ground wire here to properly ground the generator.
10. 120/240v 4-Prong Twist Lock - Use to connect electrical devices that run 120 or 240 Volt, 60Hz,
single phase, AC current (NEMA L14-30).
11. Battery - 12V DC 7ah Battery that powers the Electric Start System.
8. 120/240v
4-Prong Receptacle
7. Circuit Breaker
11. Battery
10. 120/240v
4-Prong Twist
Lock
5. 120v 3-Prong
Receptacle
2. Engine Switch
6. Digital Volt
Meter/ Hour Meter
12. Choke
13. Fuel Valve
