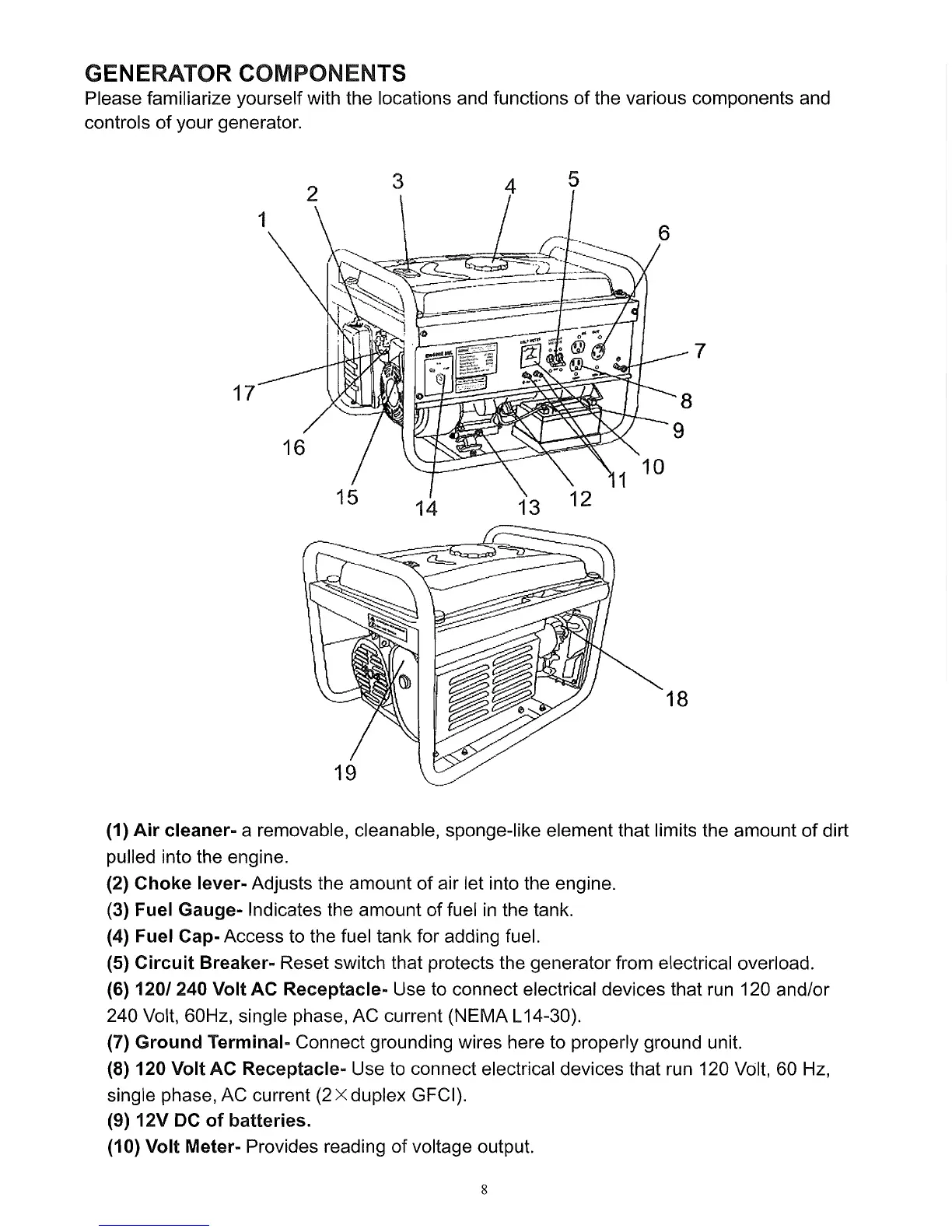

GENERATOR COMPONENTS
Please familiarize yourself with the locations and functions of the various components and
controls of your generator.
17
3
14 13
5
7
18
(1)
Air
cleaner- a removable, cleanable, sponge-like element that limits the amount
of
dirt
pulled into the engine.
(2)
Choke
lever- Adjusts the amount
of
air let into the engine.
(3) Fuel Gauge- Indicates the amount of fuel
in
the tank.
(4) Fuel Cap- Access to the fuel tank for adding fuel.
(5)
Circuit
Breaker- Reset switch that protects the generator from electrical overload.
(6)
120/240
Volt AC Receptacle- Use to connect electrical devices that
run
120 and/or
240 Volt, 60Hz, single phase, AC current (NEMA L14-30).
(7)
Ground
Terminal- Connect grounding wires here to properly ground unit.
(8) 120 Volt AC Receptacle- Use
to
connect electrical devices that
run
120 Volt, 60
Hz,
single phase, AC current
(2
X duplex GFCI).
(9) 12V
DC
of
batteries.
(10) Volt Meter- Provides reading of voltage output.
