ENGINE COMPONENTS
7

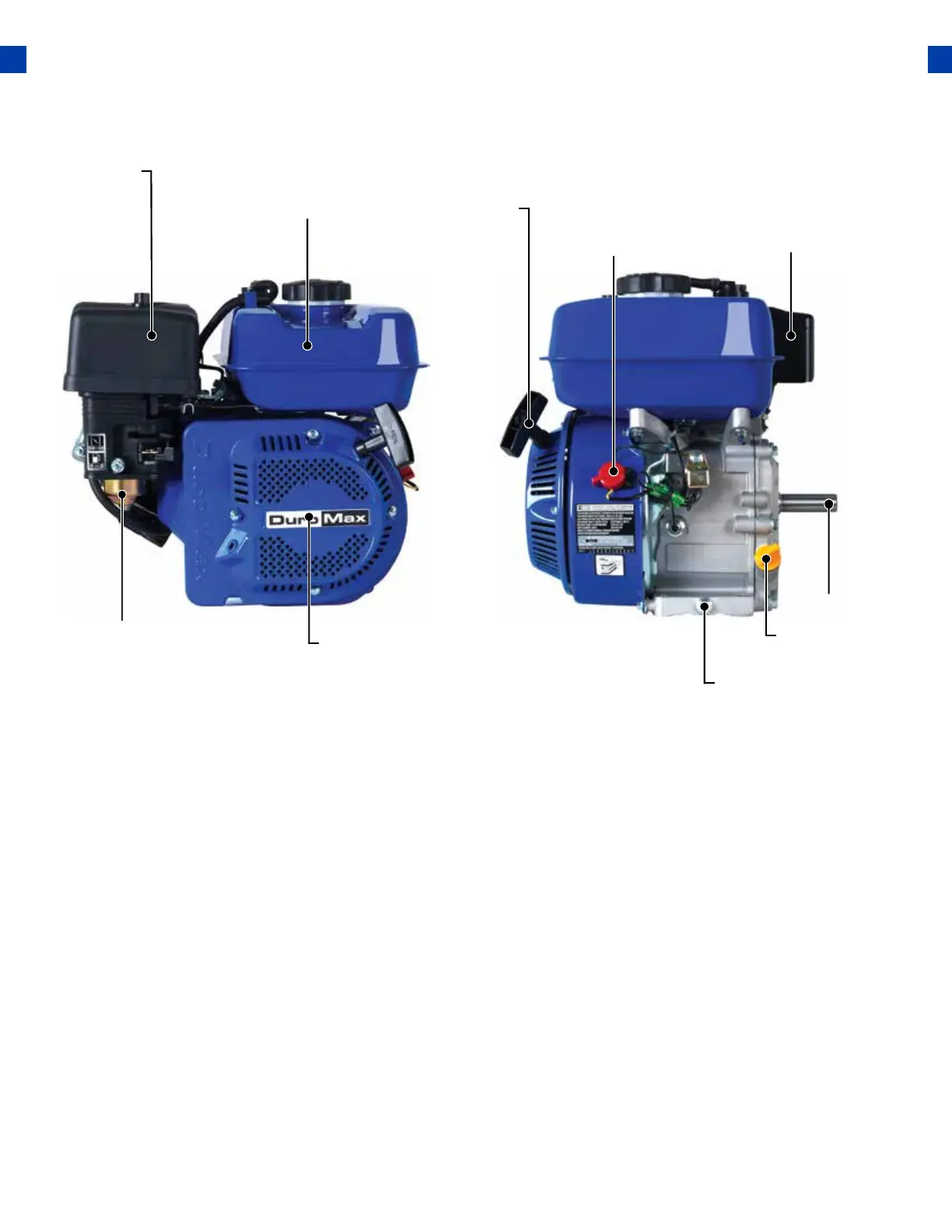

1. Air Filter - A removable, cleanable, oiled, element that cleans the air going into the engine.
2. Carburetor - A component used to control the air fuel mixture of the engine.
3. Fuel Tank - All metal 1 gallon gasoline fuel tank.
4. Recoil Starter - An easy pull recoil start to start the engine without the electric start.
5. Recoil Handle - An easy grip handle used to pull the recoil starter rope.
6. Start Switch - An easy to use switch used to turn the engine on or o.
7. Muer - A noise dampening component that helps lower the engine decibel level.
8. Engine Shaft - A 3/4” diameter, 2-3/8” long, 3/16” key-way.
9. Oil Fill - An easy access location to ll the oil for the engine.
10. Oil Drain Plug - An easy to remove oil plug that is used to drain the oil.
3. Fuel Tank
7. Muer
8. Engine Shaft
9. Oil Fill
4. Recoil Starter
2. Carburetor
1. Air Filter
10. Oil Drain Plug
5. Recoil Handle
6. Start Switch
