Durr Technik KK15 - Page 75

0678106030L02 1411V002 73
Mounting
Permanent-magnet DC motors
(+)
(-)
( )
DC
M
PE
VDC
gb(YE),sw(BK)
bl(BU)
rt(RD),br(BN)
rt(RD)
bl(BU)
gb(YE)
(+)
(-)
VDC
8786 3085
DC
M
PE
-K
-M
-M

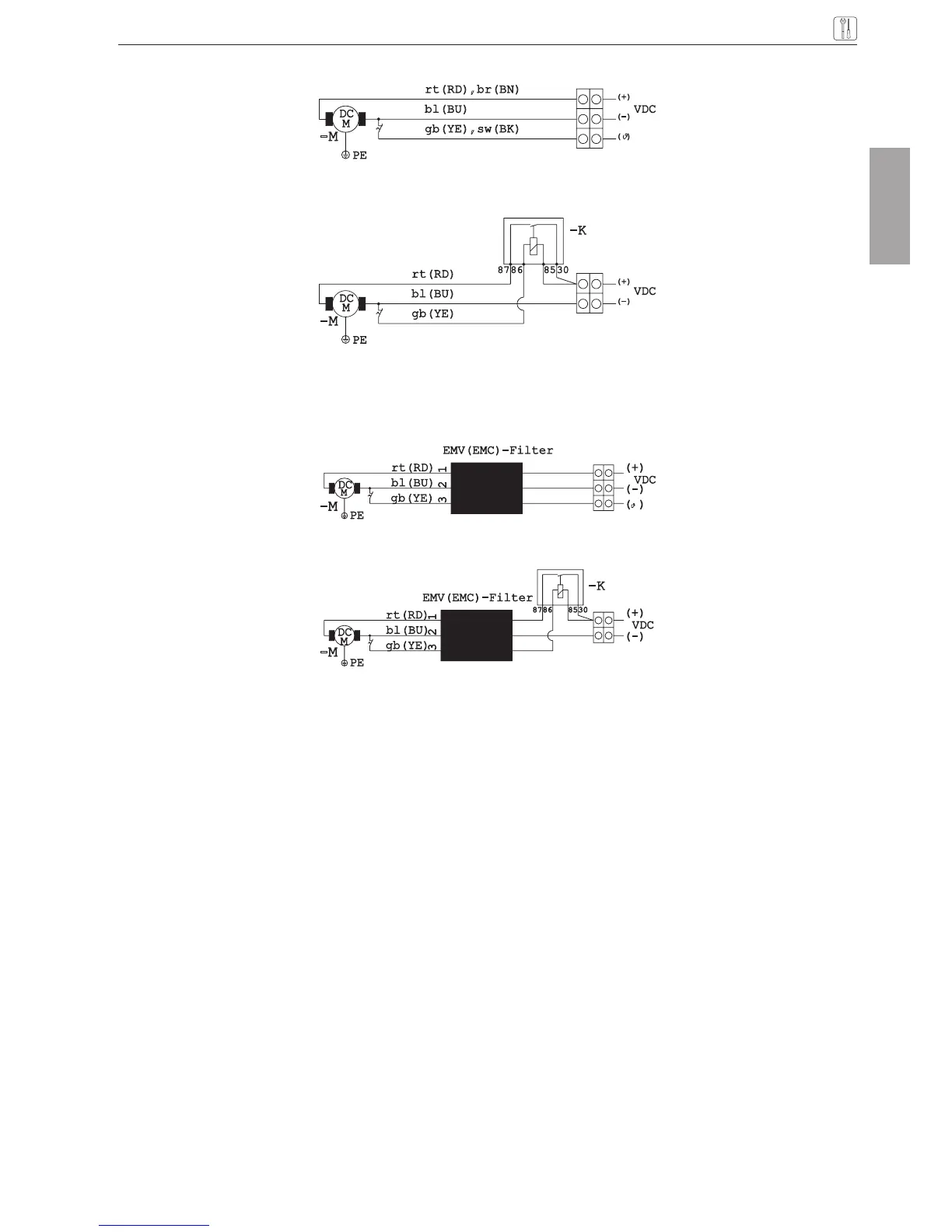

Figure 39: Motor connection of compressor unit with DC permanent-magnet motor
-M Compressor motor
-K Relay
PE
DC
M
123
rt(RD)
bl(BU)
gb(YE)
(+)
VDC
(-)
( )
123
EMV(EMC)-Filter
rt(RD)
bl(BU)
gb(YE)
EMV(EMC)-Filter
(+)
(-)
VDC
8786 3085
DC
PE
M
-M
-M
-K
Figure 40: Connection of suppression filter for compressor units with DC permanent-magnet mo-
tors
-M Compressor motor
-K Relay
