Durr Technik KK15 - Page 74

72 0678106030L02 1411V002
Mounting
P>
5
3 1
6 4 2
-Q1
.
..
-X1
. ..
PENL3L2L1
3
M
U V W
-M
h
-P1(*)
A1
A2
-Y1(*)
A1
A2
-Y2(*)

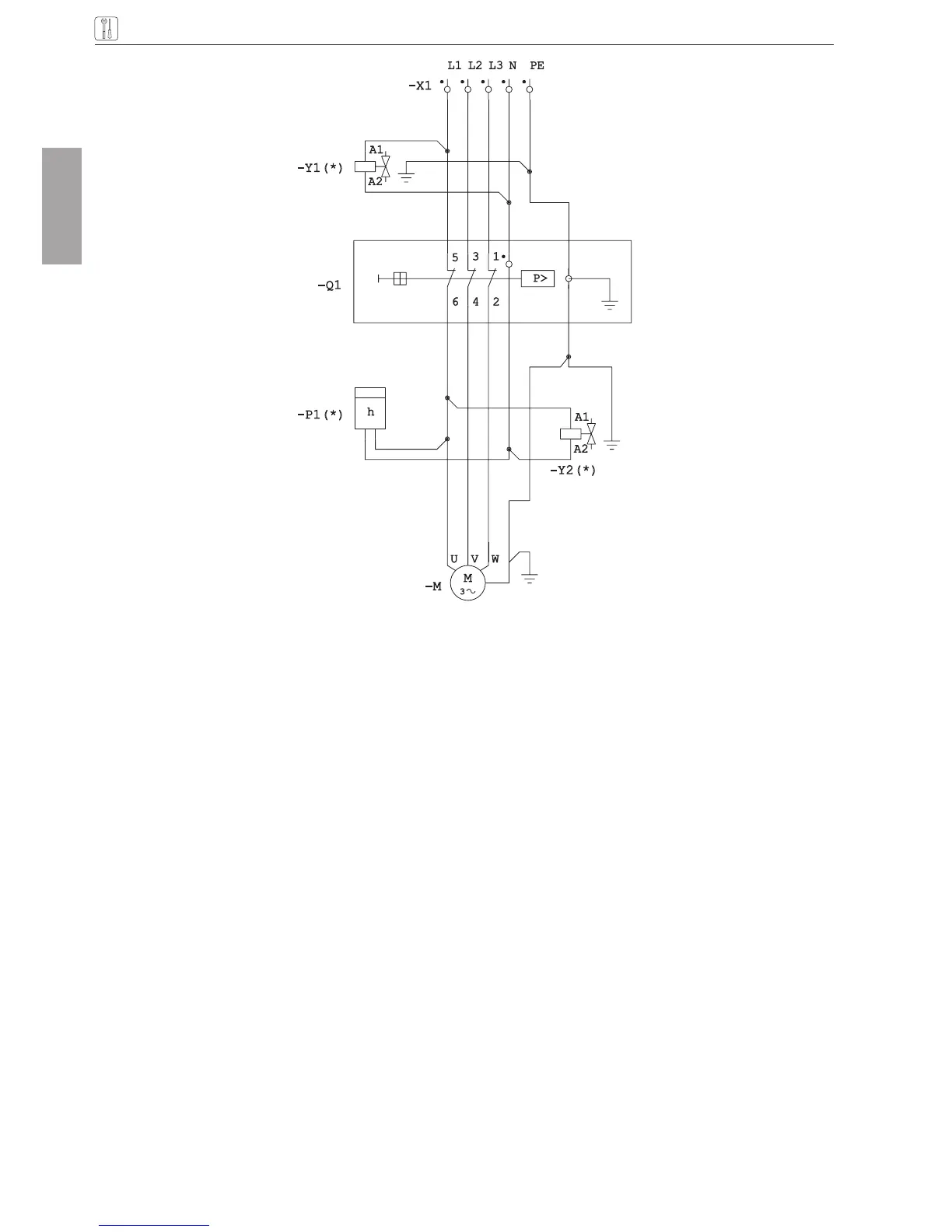

Figure 38: Installation of a compressor unit with three-phase AC motor in a compressor station
-X1 Mains connection
-Y1 Solenoid valve
-Y2 Solenoid valve
-Q1 Pressure switch
-P1 Operating-hour meter
-M1 Compressor motor
EN
