Dux Prodigy 4 - Specifications Overview; Technical Data and Dimensions

Owner’s Manual – Prodigy 4 & 5
4
H3109 3109 Rev. L
Specifications
Specifications 135L 170L
Capacity (L) 135 135 170 170
Gas Type Natural Gas Propane Natural Gas Propane
4 Star Net Weight Empty (kg) 72 72 86 86
5 Star Net Weight Empty (kg) 73 73 87 87
Relief Valve Pressure (kPa) 1400 1400 1400 1400
Injector Size (mm) 2.35 1.40 2.55 1.55
Gas Supply Pressure Min 1.13 kPa 2.75 kPa 1.13 kPa 2.75 kPa
Gas Supply Pressure Max 3.50 kPa 3.50 kPa 3.50 kPa 3.50 kPa

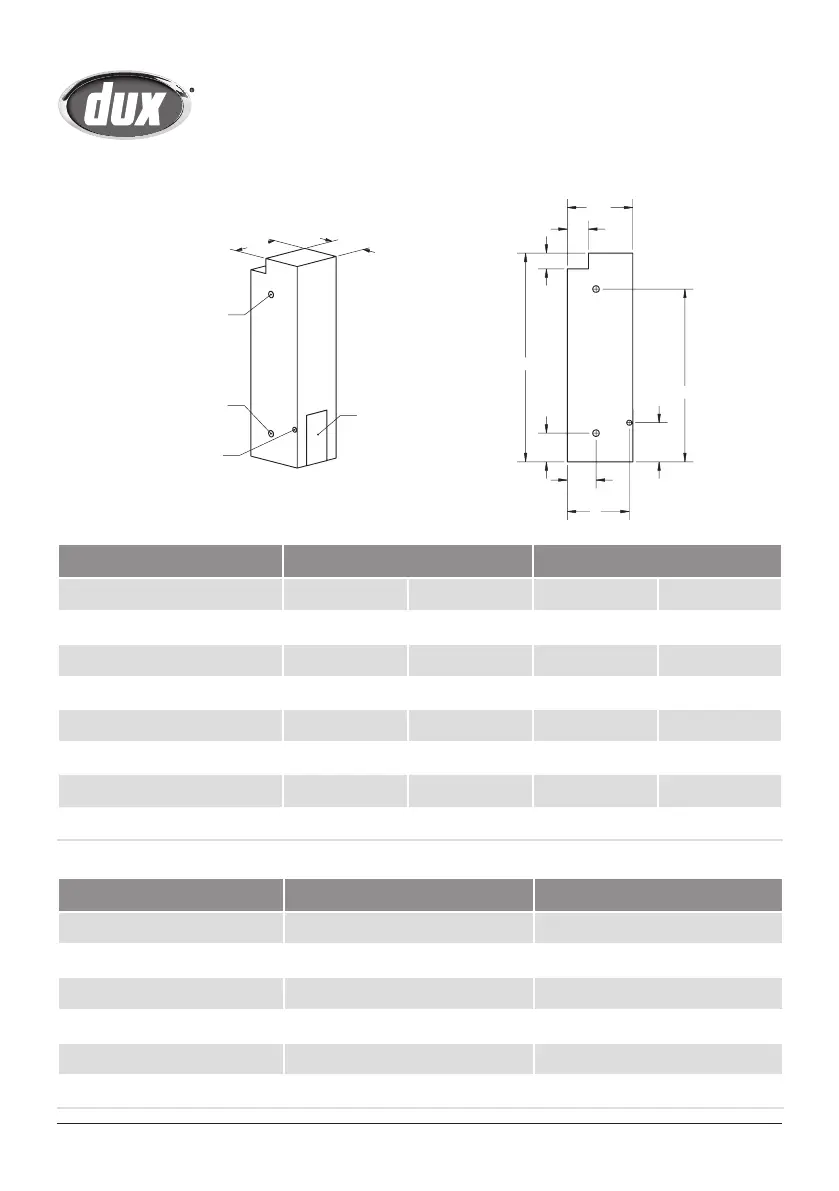

Nominal Dimensions 135L 170L
A – Overall Height (mm) 1600 1895
B – Outlet Height (mm) 1325 1620
C – Inlet Height (mm) 220 220
D – Gas Entry Height (mm) 300 300
E – Inlet/Outlet Offset (mm) 220 220
F – Gas Entry Offset (mm) 475 475
340
422
ACCESS COVER
HOT WATER OUTLET
COLD WATER INLET
GAS ENTRY HOLE
PTR SOCKET ON
RIGHT HAND SIDE
A
D
C
B
120
E
F
162
502
Gas Consumption (MJ/h) data is marked on the product data label which is fixed to the water heater.
