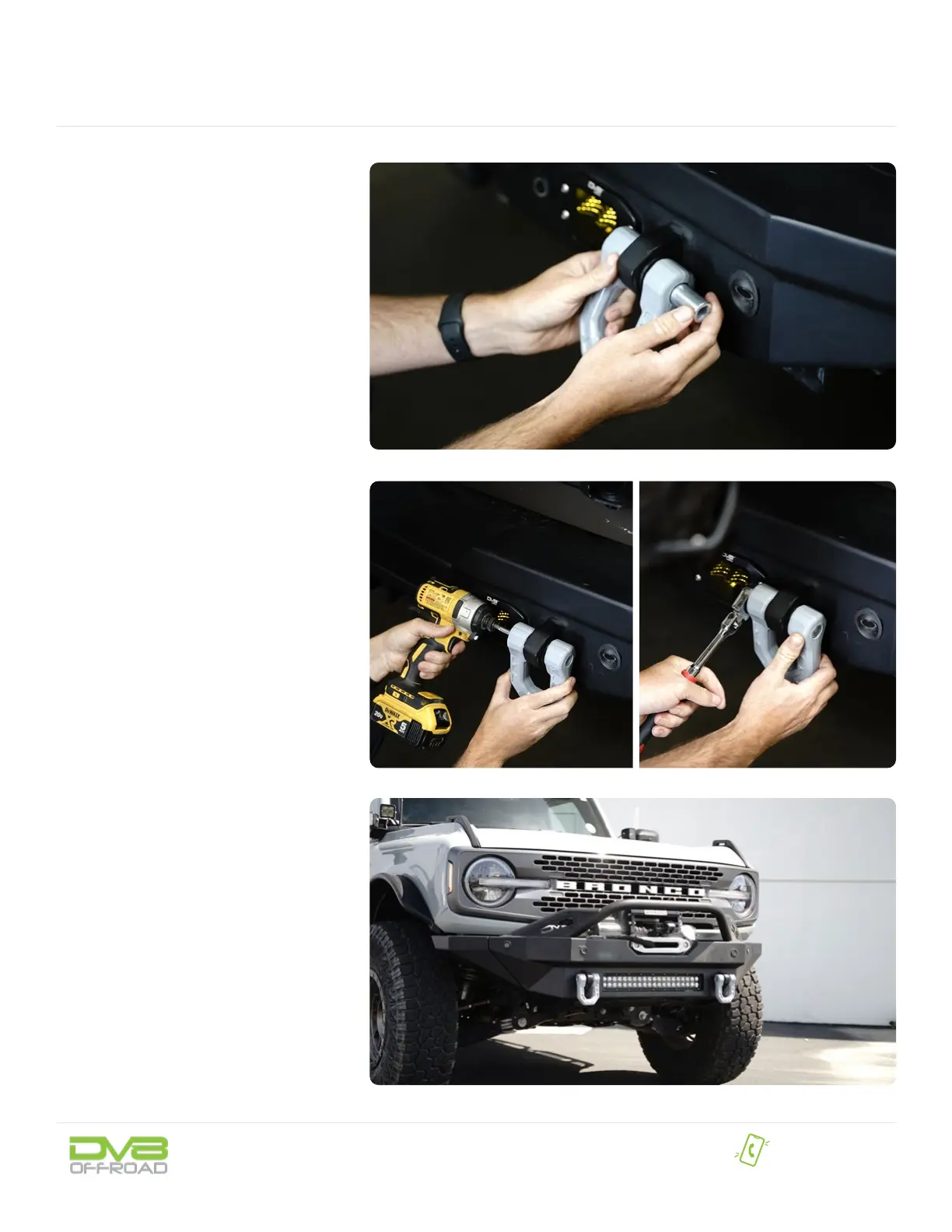

STEP 3 | Once isolators have been
selected, hold up the shackle and
isolators, and feed the pin through the
shackle.
Once it bottoms out, begin screwing it
into the shackle.
STEP 4 | Using a 3/8” ratchet/chuck,
being to tighten the pin into the shackle
until secure. The pin should be tight
enough that the pin cannot be loosened
by hand.
NOTE: The opening in the pin may have
some slack around a 3/8” rachet/chuck
since it is also designed to be used
with factory tire changing posts (not all
applications will work).
STEP 5 | Double check both pins are
secure, and you are ready to put your new
Elite Series D-Ring to the test!
