14
ArEA
,
DIA
,
XDIM
and
YDIM
SUB MENUS

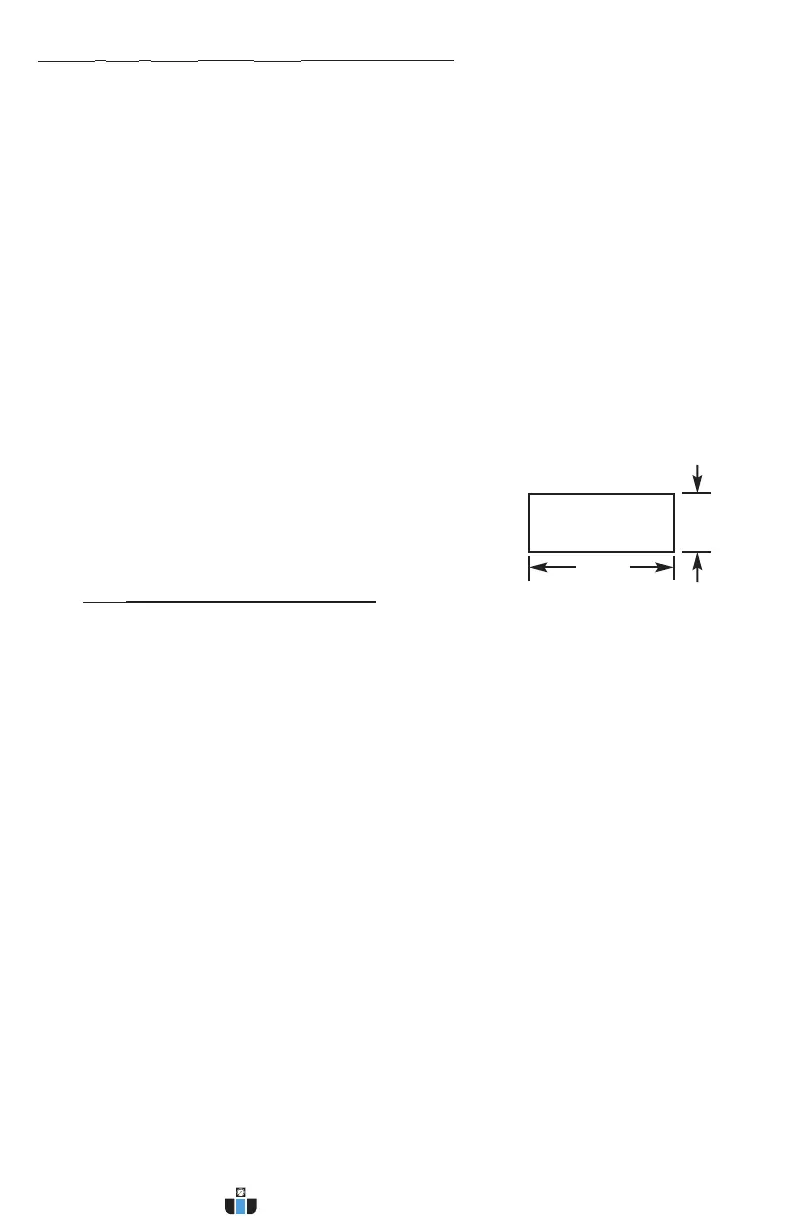

These SUB MENUS become accessible if the instrument is set for flow. When meas-
uring flow, the area of the duct must be specified. Tables 3 and 4 show the input
range vs maximum flow and duct size. For a rectangular duct the maximum size is
specified in square feet or meters. For a circular duct the maximum size is specified
as the diameter. X, Y and circular dimensions are entered in feet with 0.01 foot res-
olution for
FLOr = LO
and 0.1 foot resolution for
FLOr = HI
, or entered in millimeters
with 1 millimeter resolution.
ArEA
- Area, select
CIR
for a circular duct or
RECT
for a rectangular
duct. If a circular duct is selected, the
DIA
SUB MENU will be activated. If a
rectangular duct is selected, the
XDIM
and
YDIM
SUB MENUS will be acti-
vated.
DIA
- Diameter, enter the diameter of a duct
XDIM
- Enter the “X” dimension of a duct
YDIM
- Enter the “Y” dimension of a duct
OUt
(Output) MAIN MENU
The
OUt
MENU selects the output type of the instrument. The SUB
MENUS are:
CtrL
- Control type
ALrE
- Alarm reset, manual or auto
ISP
- SP1 reverse or direct acting
AL.H
- Alarm inhibit
AL
- Alarm type
ALDL
- Alarm delay
Y
X
