DX Engineering DXE-RTR-2 - Diagram 2: Active Receive with RX I;O Transceivers

23

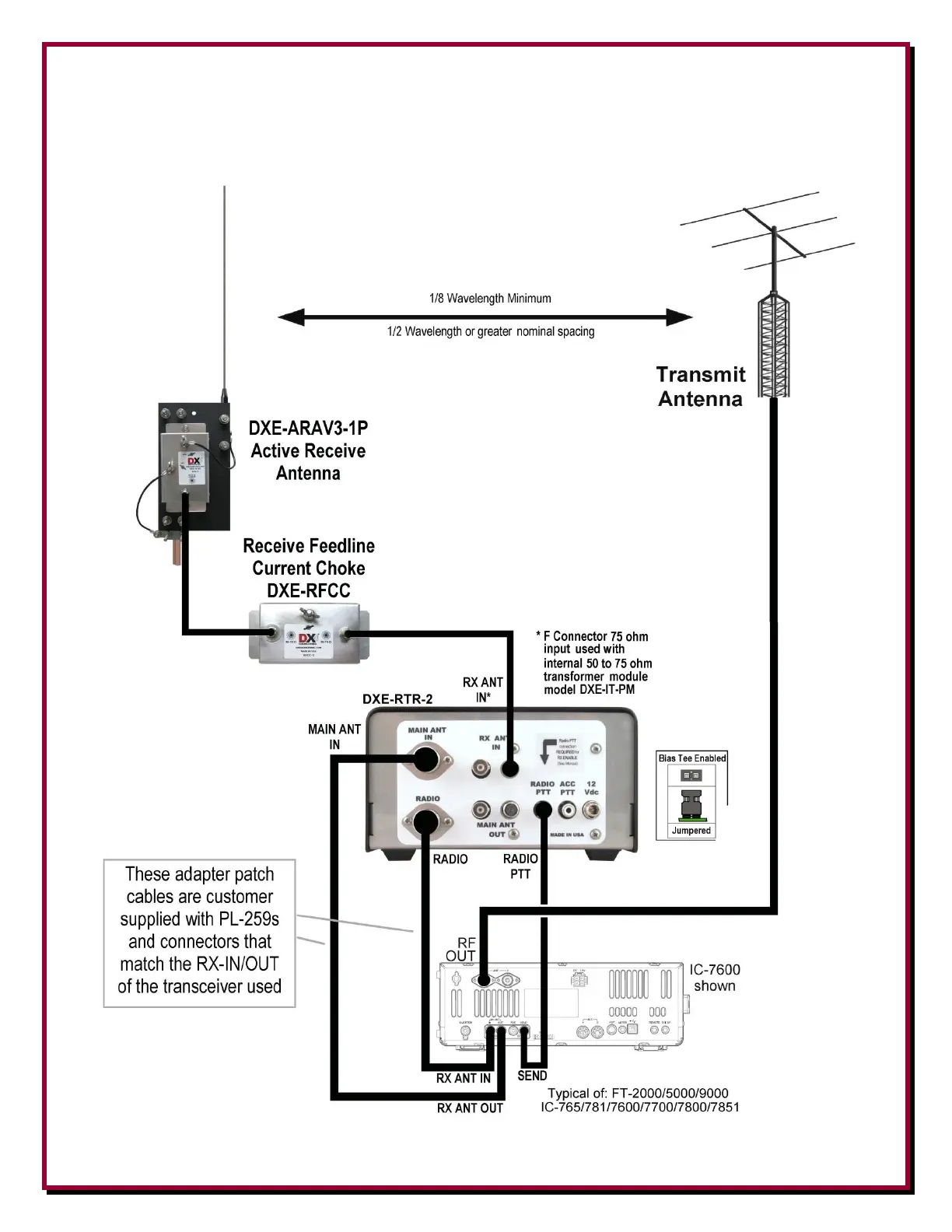

Diagram 2 - Active Receive to a transceiver equipped with RX Inputs and Output ports. Allows
use of an active or passive receive antenna with added receive signal strength using the DXE-RPA-
2-PM Preamplifier Plug-In Module.
