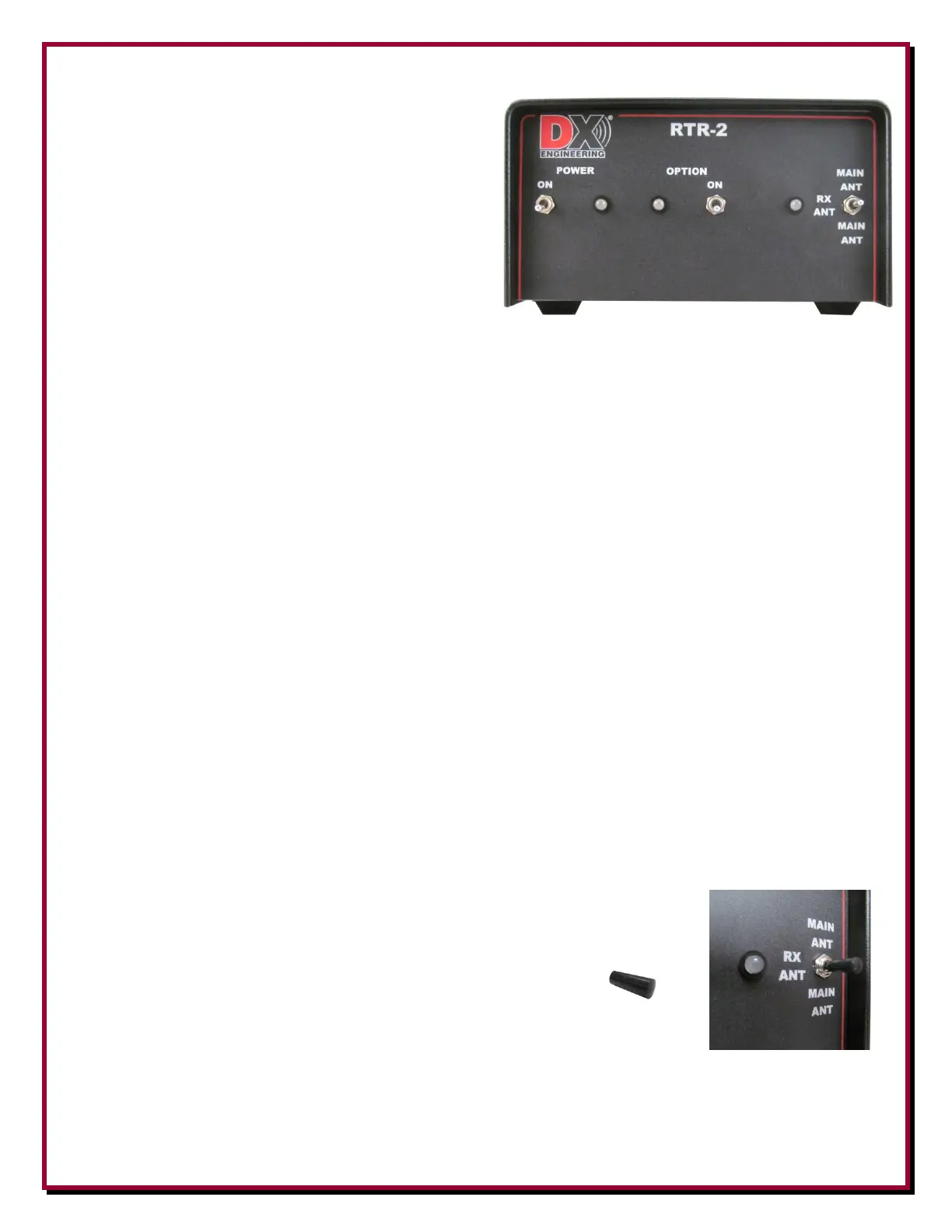

DXE-RTR-2 Front Panel
PWR ON: Toggle Switch - RTR-2 power
ON and off. +13.8 Vdc power is supplied
via the rear panel center positive connector.
PWR LED indicator: LED (Light Emitting
Diode) illuminates Green to indicate the
RTR-2 POWER ON is turned on. With
power connected to the unit, when the
POWER ON toggle switch is turned off,
the LED will illuminate yellow.
OPTION: Green LED. Illuminates green when OPTION toggle switch is turned ON
OPTION ON: Toggle Switch turns power on for the internal Option 3 slot. Option 3 slot is for the
optional DXE-RPA-2PM Receive Preamplifier Plug-in Module.
RX ANT: Mode - Two color LED (Red, Blue, or off) indicator illuminates Blue to indicate the
RTR-2 is in the receive mode (and there is a keying cable connected). When the LED is red, it
indicates you are in the MAIN ANT transmit mode. This LED extinguishes when the keying cable
is not connected or when the unit is turned off.
MAIN ANT - RX ANT - MAIN ANT: Three-position toggle switch provides manual control of
the RTR-2- antenna selections:
MAIN ANT (up) - Manually switches RADIO to the MAIN ANT for receiving with the
transmitting antenna. RADIO remains connected to MAIN ANT during transmit. Mode
LED is red when keying cable is connected and POWER is ON.
RX ANT (center) - Switches the RADIO to the RX ANT for receive mode and allows
automatic switching of the RADIO to the MAIN ANT during transmit. Mode LED is blue.
MAIN ANT (momentary on when pressed down) - Manually switches RADIO to MAIN
ANT momentary for a fast check of reception on the transmitting MAIN ANT (mode LED is
red).
For those that want a slightly larger switch handle on the RTR three-position
toggle switch, a black switch cap has been included with the RTR-2. Push this
cap fully in place as shown.
