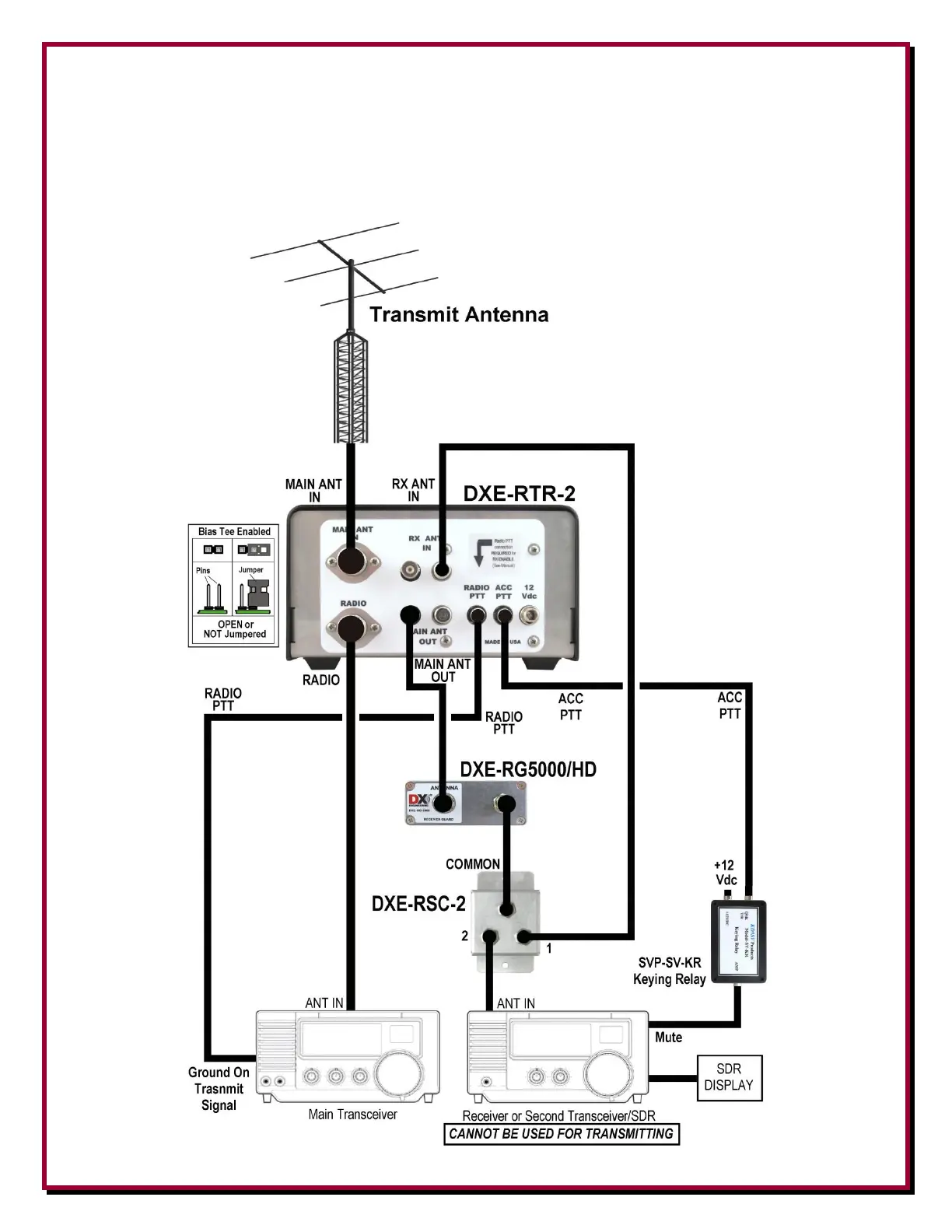

Diagram 9 - Connections to share a transmit antenna between two radios for
simultaneous reception and safe transmit switching. Supports the addition of an
SDR spectrum display to a standard transceiver. External mute relay may be
required. External Receiver Guard DXE-RG-5000HD is recommended.
