REMOVING THE MASK FROM
HARD GOGGLE
WARNING: Never use the goggle without the mask and ear pieces securely
attached. Improper attachment of mask can lead to serious injury.
TO REMOVE THE MASK FROM THE GOGGLE FRAME:

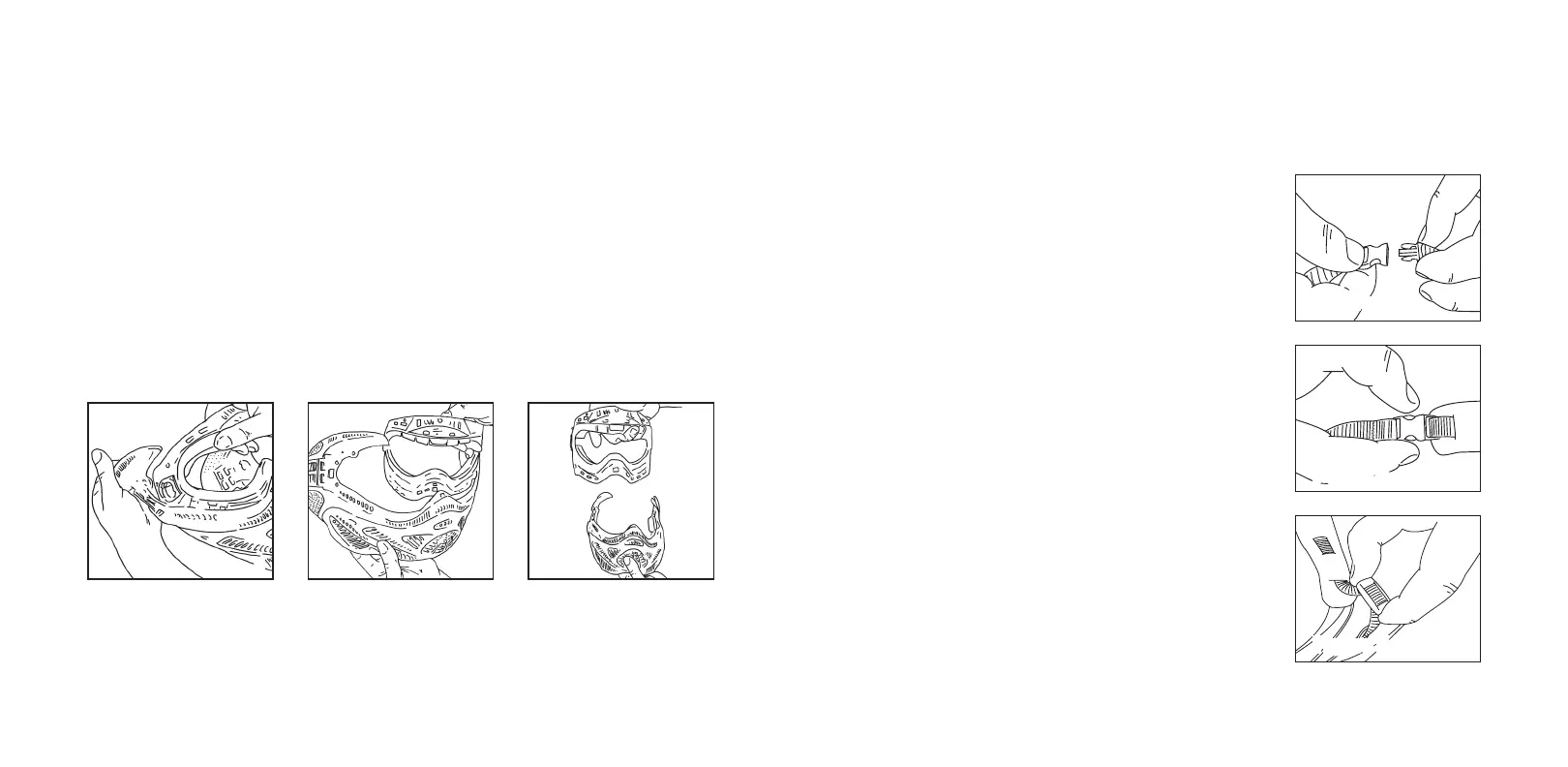

1 Hold the hard goggle in one hand.
[See Figure 1]
2 Beginning at top corners, pull mask up and away from hard goggle until removed from
end retention tabs.
[See Figure 2]
3 Repeat on opposite side.
TO INSTALL THE MASK ON THE GOGGLE FRAME:
1 Hold the hard goggle in one hand.
2 Beginning at top corners, insert mask into retention tabs on each end of hard goggle.
3 Repeat on opposite side.
4 Grab hard goggle and align tabs into mask holes.
5 Mask should fit snugly to hard goggle.
Inspect the mask attachment carefully. Make sure that there are no gaps between the mask
and the goggle frame.
1 2 3
ATTACHING THE CHIN STRAP
1 To connect the strap, hold each end of the buckle and line
them up so that the forks are pointing toward the opening
of the other buckle. Insert the fork part of the buckle into
the other one until you hear a little snap noise; that noise will
indicate that your chin strap is locked. Once you have heard
that click, your chin strap is now ready for use.
[See Figure 1]
2 To release the strap simply pinch the two rounded bumps
on the buckle until they are lower then the side wall of the
buckle. Once the bumps are lower, pull one end of the strap
away from the other until the buckle is completely separated,
then your strap will be released.
[See Figure 2]
3 To adjust the size of the strap simply pinch the side locker
from end to end and rock the locker back and forth until the
strap becomes looser.
To tighten it grab one part of the strap and then slide the
locker down toward the mask. This will cause the strap to get
tighter.
