PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 50 minutes with two people
Tools Required for Assembly and leak testing (not included): Phillips screwdriver, spray bottle.
SAFETY INFORMATION
• DO NOT use the grill unless it is completely assembled and all parts are securely fastened and tightened.
• Keep all combustible items and surfaces at least 36 in. (91.44 cm) away from the grill at all times.
• DO NOT touch metal parts of grill until it has completely cooled (about 45 minutes) to avoid burns, unless
you are wearing protective gear (pot holders, gloves, BBQ mittens, etc.).
• DO NOT alter this grill in any manner.
• Clean and inspect the hose before each use. If there is evidence of abrasion, wear, cuts, or leaks, the
hose must be replaced prior to operating the appliance. The replacement hose assembly will be that
whichisspeciedbythemanufacturer,listedintherepairpartslistinthismanual.
• Move gas hoses as far away as possible from hot surfaces and dripping hot grease.
• Keep the grill’s valve compartment, burners and circulating air passages clean. Inspect the grill before
eachuse.Donotobstructtheowofgasorventilationair.
• The use of alcohol, prescription or non-prescription drugs may impair the operator’s ability to properly
assemble or safely operate the grill.
• DO NOT leave a lit grill unattended. Keep children and pets away from the grill at all times.
• DO NOTplacethisgrillonanytypeoftabletopsurface.Thegrillshouldbeplacedonaatandlevel
surface.
• DO NOT use the grill in high winds.

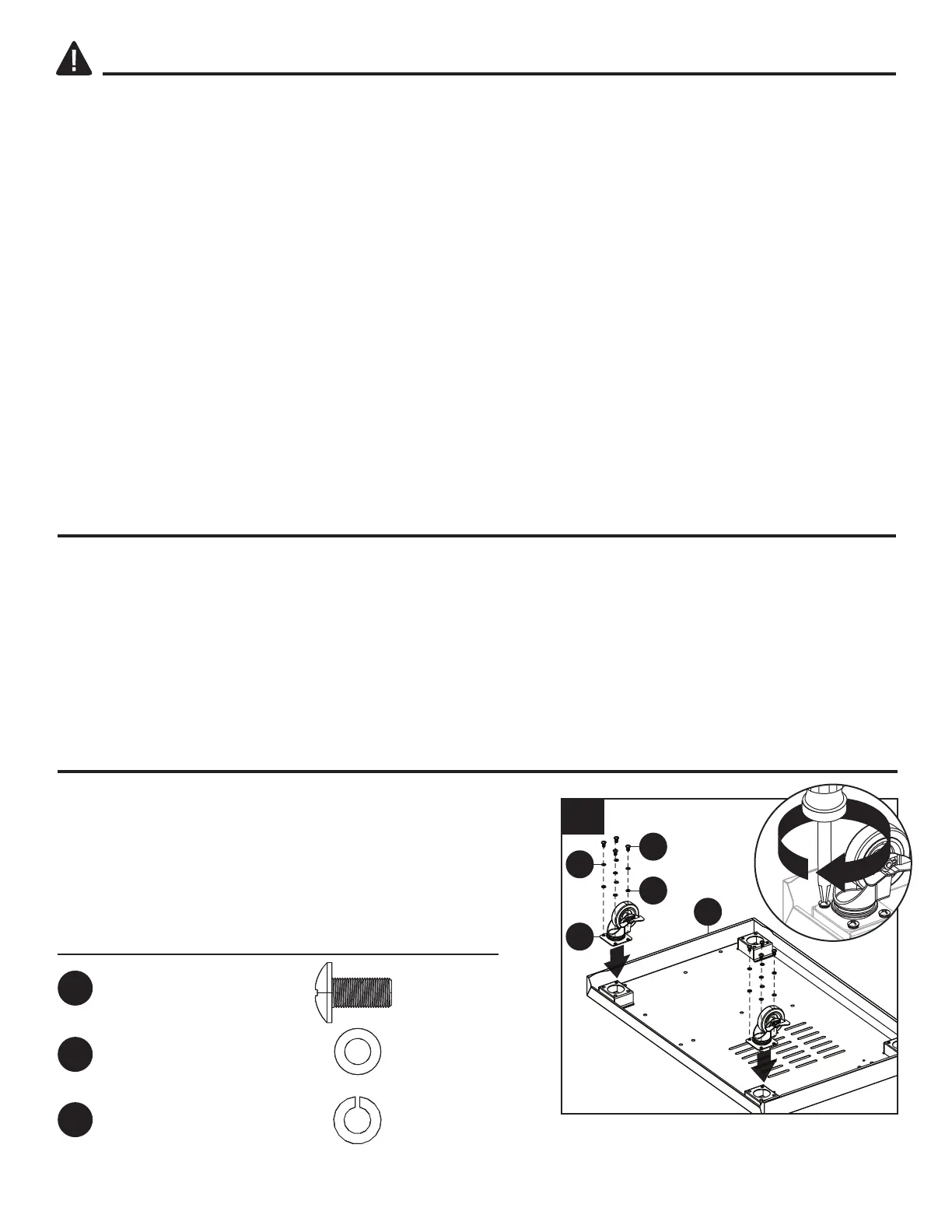

ASSEMBLY INSTRUCTIONS
1. Attach two locking casters (B) to the rear of the
bottom shelf (A) and secure using four plain
washers (BB), four spring washers (CC), and
fourM6x12screws(AA)foreachlocking
caster (B).
1
1
2
CC
B
AA
BB
A
1
Hardware Used
M6x12Screw
Plain washer
Spring washer
x8
x8
x8
AA
BB
CC
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA
DD
EE
GG
HH
BB
CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA
DD
EE
GG
HH
BB
CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA
DD
EE
GG
HH
BB
CC
M6x16 Screw
Qty. 10
FF
