Dyna-Glo DGA550SSP - Page 9

10
ASSEMBLY INSTRUCTIONS
Hardware Used
Hardware Used
M6x12Screw
M6x12Screw
x3
x4
AA
AA
2
2
1
1
3
AA
G
E
D
9
2
2
2
1
1
3
F
AA
A
D
E
8

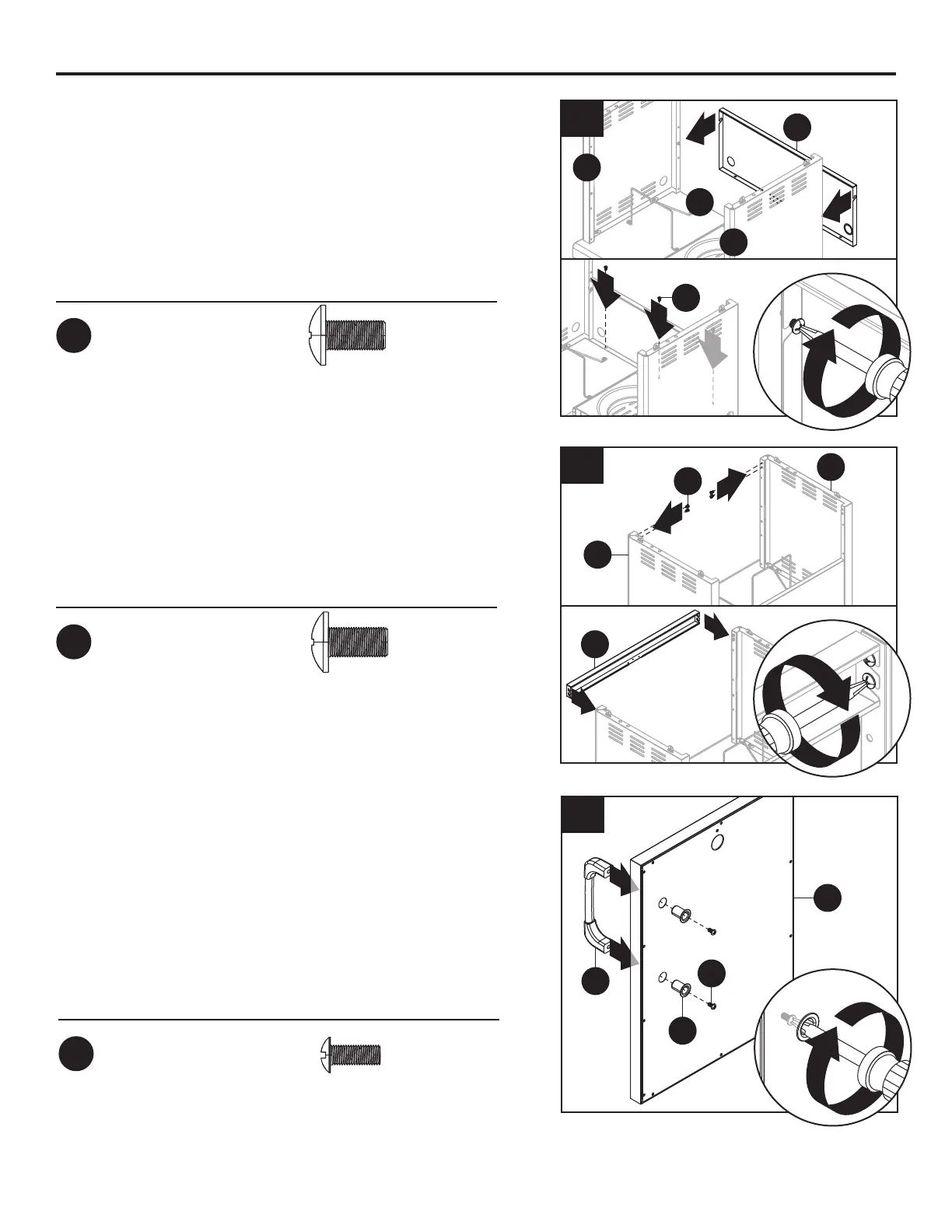

8. Attach the cart rear panel (F) by sliding the
keyholes in the cart rear panel (F) over the
inserted screws. Slide the cart rear panel (F) down
to meet bottom shelf (A). Secure the cart rear
panel (F) to the bottom shelf (A) with three screws
(AA). Tighten all screws, including the two screws
in cart side panels (D & E).
9. PartiallyinsertfourM6x12screws(AA)intothe
cart side panels (D & E). Attach the upper door
brace (G) by sliding the cut-outs in the upper door
brace (G) over the four screws (AA) and tightening
all four screws (AA).
1
1
2
H
J
K
GG
10
10.RemovepreassembledM4x10screws(GG)
from the door handles (J). Insert two door handle
sleeves (K) into the holes located on the back
oftheleftdoorassembly(H).InserttwoM4x10
screws (GG) into the door handle sleeves (K)
and into the threaded holes in the door handle
(J). Tighten the screws. Repeat with right door
assembly (I).
Hardware Used
M4x10Screw
x4
GG
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA
DD
EE
GG
HH
BB
CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA
DD
EE
GG
HH
BB
CC
M6x16 Screw
Qty. 10
FF
M6x12 Screw
Qty. 40
M4x10 Screw
Qty. 12
M6x20 Screw
Qty. 4
M4x10 Screw
Qty. 4
NOTE: Preassembled
with door handle.
Plain Washer
Qty. 16
Spring Washer
Qty. 16
M6x25 Screw
Qty. 2
NOTE: Preassembled
with lid handle.
AA
DD
EE
GG
HH
BB
CC
M6x16 Screw
Qty. 10
FF
