22
Figure 2
Figure 1

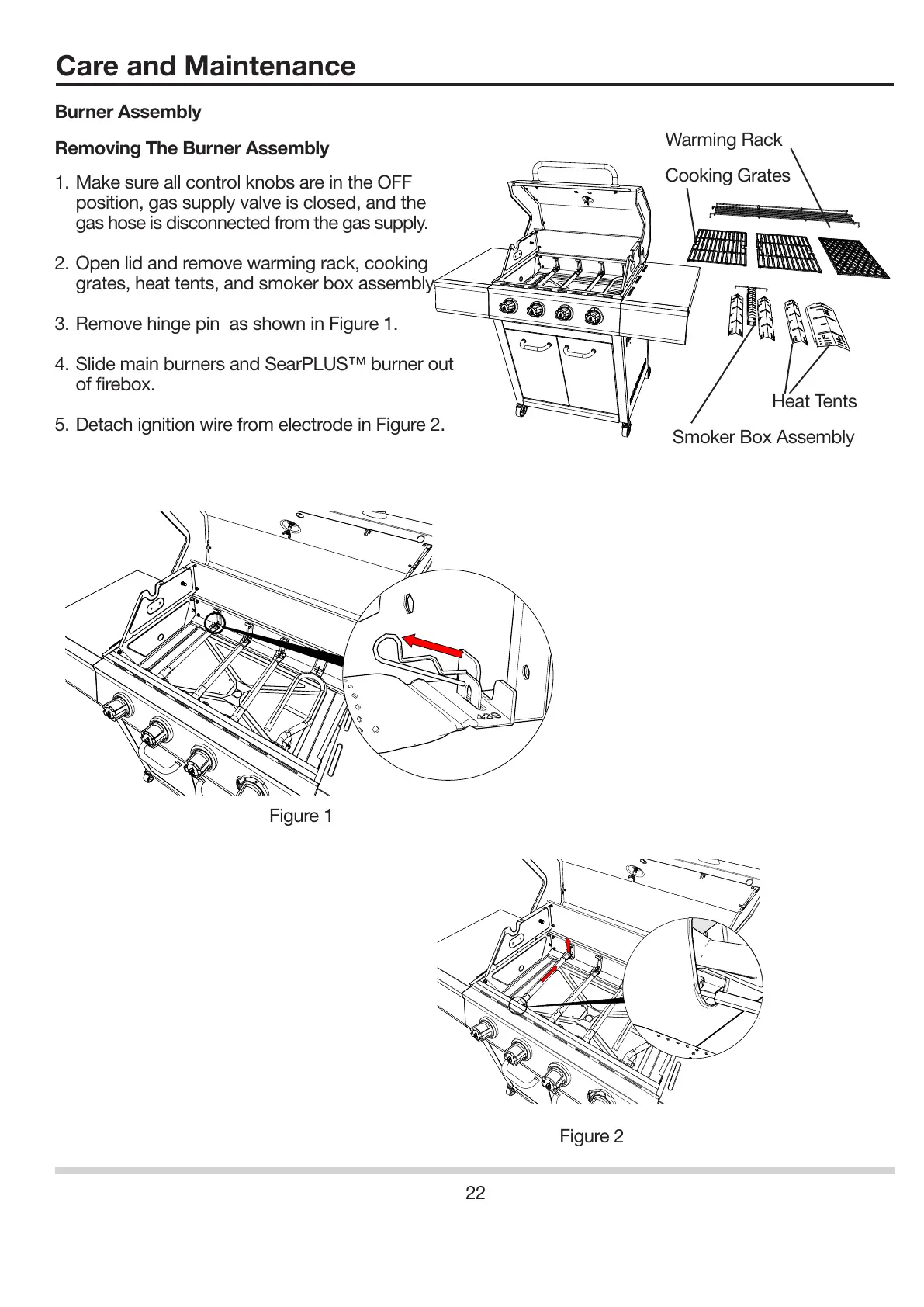

Burner Assembly
Removing The Burner Assembly
1. Make sure all control knobs are in the OFF
position, gas supply valve is closed, and the
gas hose is disconnected from the gas supply.
2. Open lid and remove warming rack, cooking
grates, heat tents, and smoker box assembly.
3. Remove hinge pin as shown in Figure 1.
4. Slide main burners and SearPLUS™ burner out
of rebox.
5. Detach ignition wire from electrode in Figure 2.
Care and Maintenance
Warming Rack
Cooking Grates
Heat Tents
Smoker Box Assembly
