6

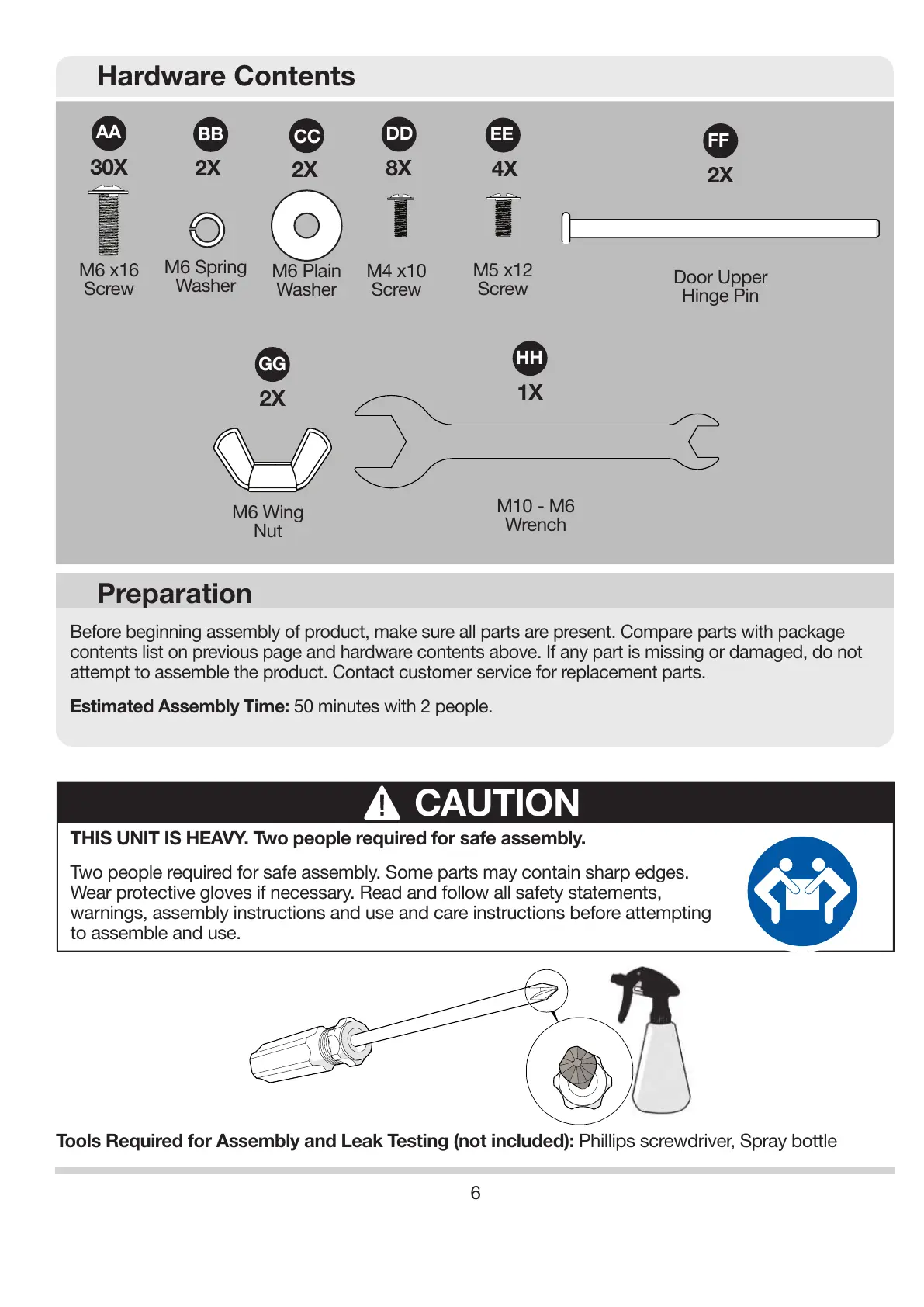

Hardware Contents
Preparation
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list on previous page and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 50 minutes with 2 people.
Tools Required for Assembly and Leak Testing (not included): Phillips screwdriver, Spray bottle
CAUTION
THIS UNIT IS HEAVY. Two people required for safe assembly.
Two people required for safe assembly. Some parts may contain sharp edges.
Wear protective gloves if necessary. Read and follow all safety statements,
warnings, assembly instructions and use and care instructions before attempting
to assemble and use.
AA
DD
FF
M6 x16
Screw
30X
2X
8X
2X
BB
M6 Wing
Nut
2X
GG
M4 x10
Screw
Door Upper
Hinge Pin
M6 Spring
Washer
CC
2X
M6 Plain
Washer
1X
HH
M10 - M6
Wrench
EE
4X
M5 x12
Screw
To Next Page
