10

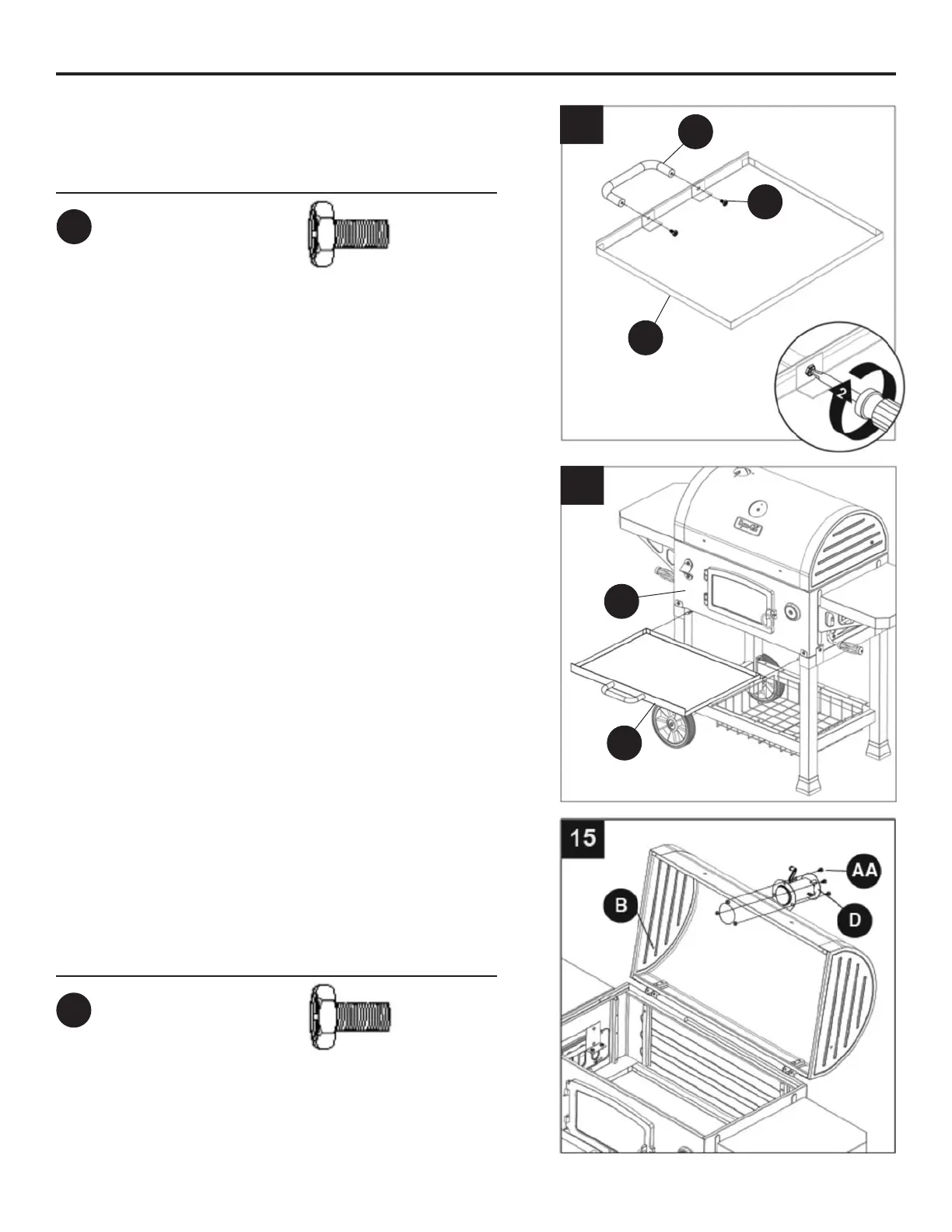

ASSEMBLY INSTRUCTIONS
14. Insert ash tray (J) into lid and rebox
assembly (B).
15. Attach smoke stack assembly (D) to lid and
rebox assembly (B) using three M6x12 bolts
(AA).
NOTE: Make sure the smoke stack damper
adjustment handle faces the front of the grill.
Hardware Used
M6x12 Bolt
x 3
AA
13. Attach ash tray handle (K) to ash tray (J) using
two M6x12 bolts (AA).
Hardware Used
M6x12 Bolt
x 2
AA
13
14
J
J
B
K
AA
