9

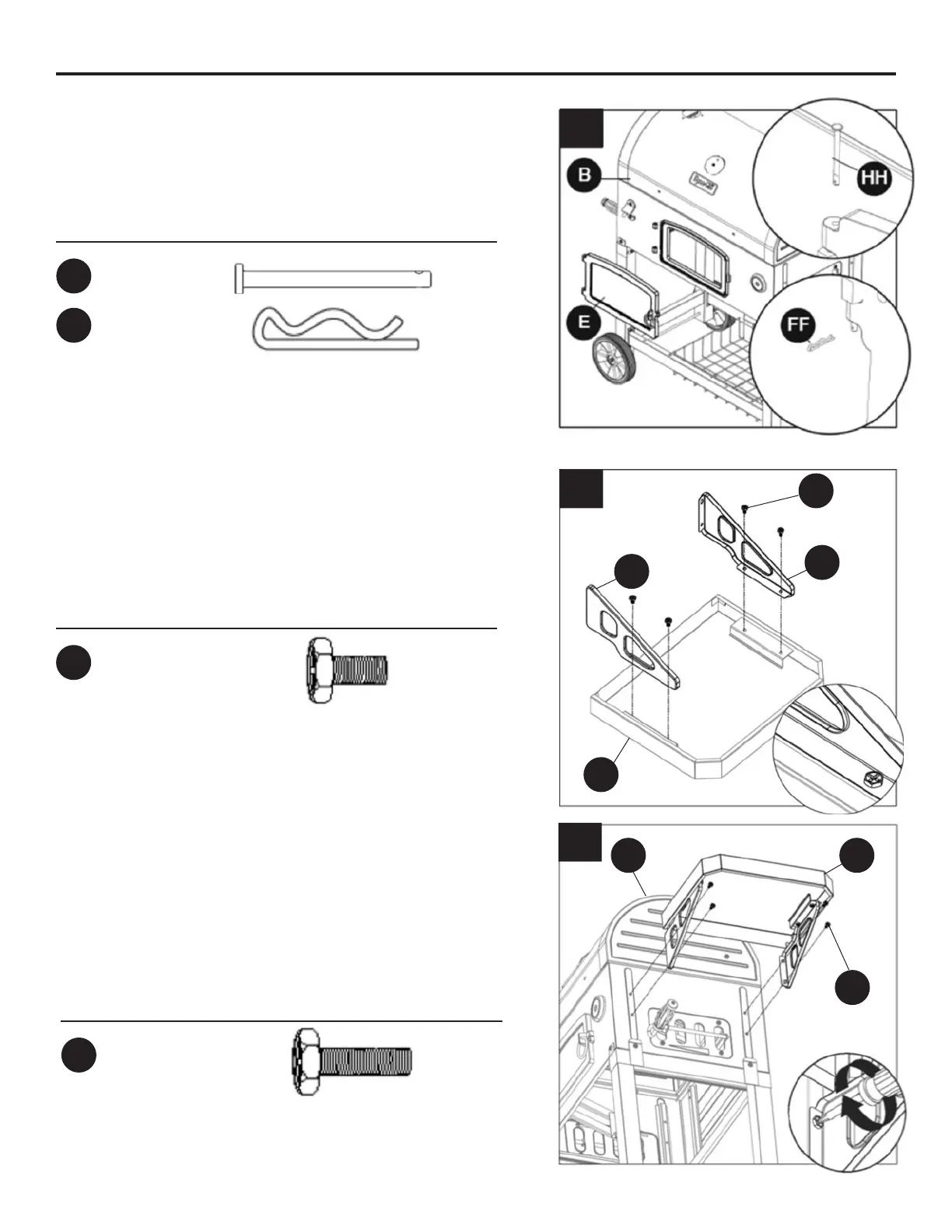

ASSEMBLY INSTRUCTIONS
10. Attach charcoal access door (E) to lid and
rebox assembly (B). Insert two hinge bolts
(HH) into hinges on charcoal access door (E)
and secure with two cotter pins (FF).
Hardware Used
Cotter Pin
Hinge Bolt
x 2
x 2
FF
HH
12. Attach right side shelf (A) to lid and rebox
assembly (B) using four M6x20 bolts (BB).
Repeat on left side with remaining side shelf (A).
NOTE: First secure two upper M6x20 bolts (BB),
then lower M6x20 bolts (BB).
Hardware Used
M6x20 Bolt
x 8
BB
10
12
BB
AB
11. With shelf upside down, attach side shelf
support – left rear/right front (W) and side shelf
support – left front/right rear (I) to side shelf
(A) using four M6x12 bolts (AA) on each side.
Repeat for remaining shelf (A).
Hardware Used
M6x12 Bolt
x 8
AA
11
A
W
AA
I
