ASSEMBLY INSTRUCTIONS

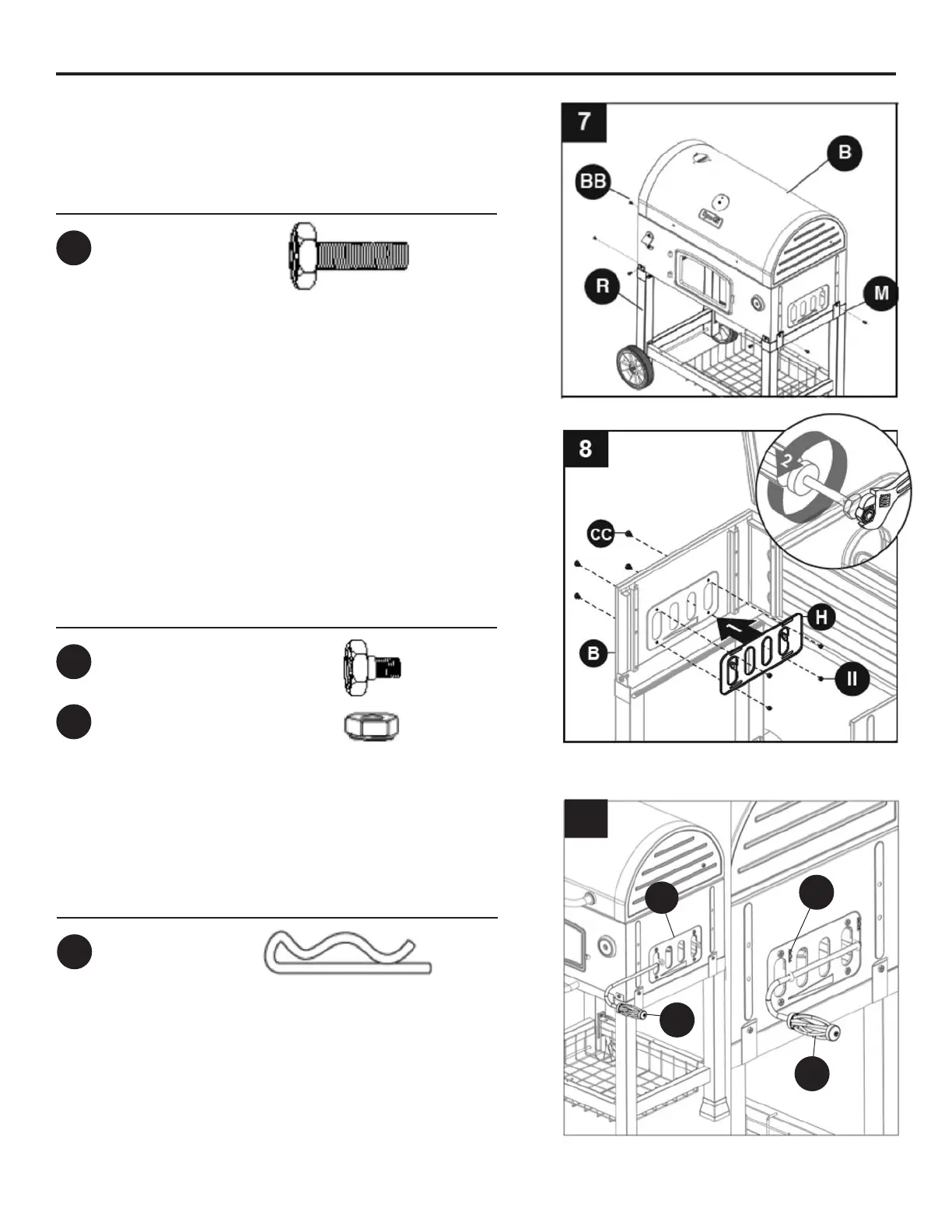

7. Secure lid and rebox assembly (B) on top of
left leg assembly (R) and right leg assembly (M)
using six M6x20bolts (BB).
8. Attach damper (H) to inside of lid and rebox
assembly (B) using four M5 shoulder bolts (CC)
and four M5 lock nuts (II). Repeat for remaining
damper (H).
NOTE: For clarity, illustration is shown with front
of lid and rebox assembly (B) removed.
Hardware Used
Hardware Used
M6x20 Bolt
M5 Shoulder Bolt
M5 Lock Nut
x 6
x 8
x 8
BB
CC
II
9. Insert damper handle – right (G) into the two holes
on right side damper (H). Secure with two cotter
pins (FF). Repeat for damper handle – left (V).
Hardware Used
Cotter Pin
x 4
FF
9
G
FF
G
H
