ASSEMBLY INSTRUCTIONS

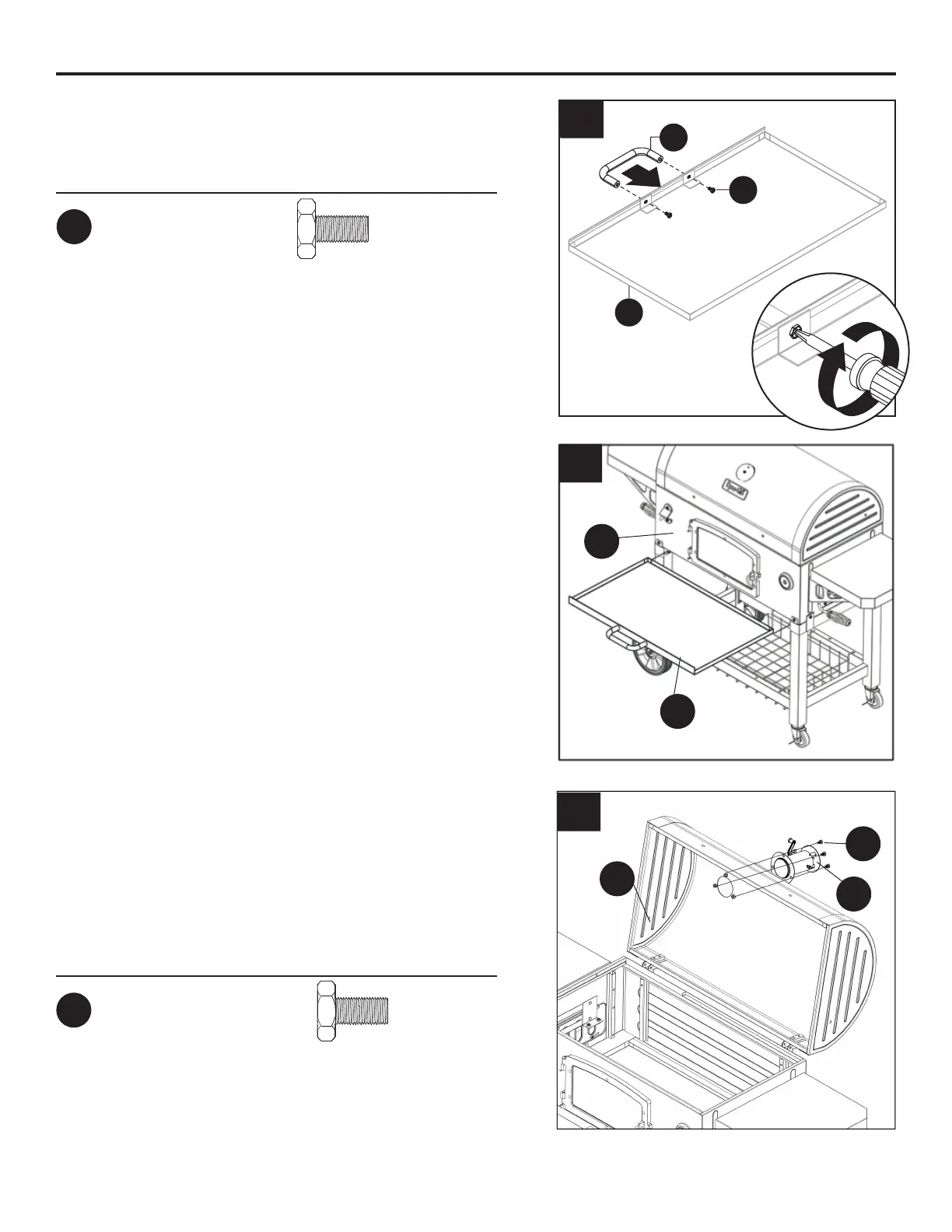

14. Insert ash tray (J) into lid and rebox
assembly (B).
15. Attach smoke stack assembly (D) to lid and
rebox assembly (B) using three M6x12 bolts
(AA).
NOTE: Make sure the smoke stack damper
adjustment handle faces the front of the grill.
Hardware Used
M6x12 Bolt
x 3
AA
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
14
J
B
15
B
D
AA
1
2
AA
10
J
K
13. Attach ash tray handle (K) to ash tray (J) using
two M6x12 bolts (AA).
Hardware Used
M6x12 Bolt
x 2
AA
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
13
