Dyna-Glo DGN576DNC - Page 11

Hardware Used
11
ASSEMBLY INSTRUCTIONS
1
2
3
17
F
FF
B

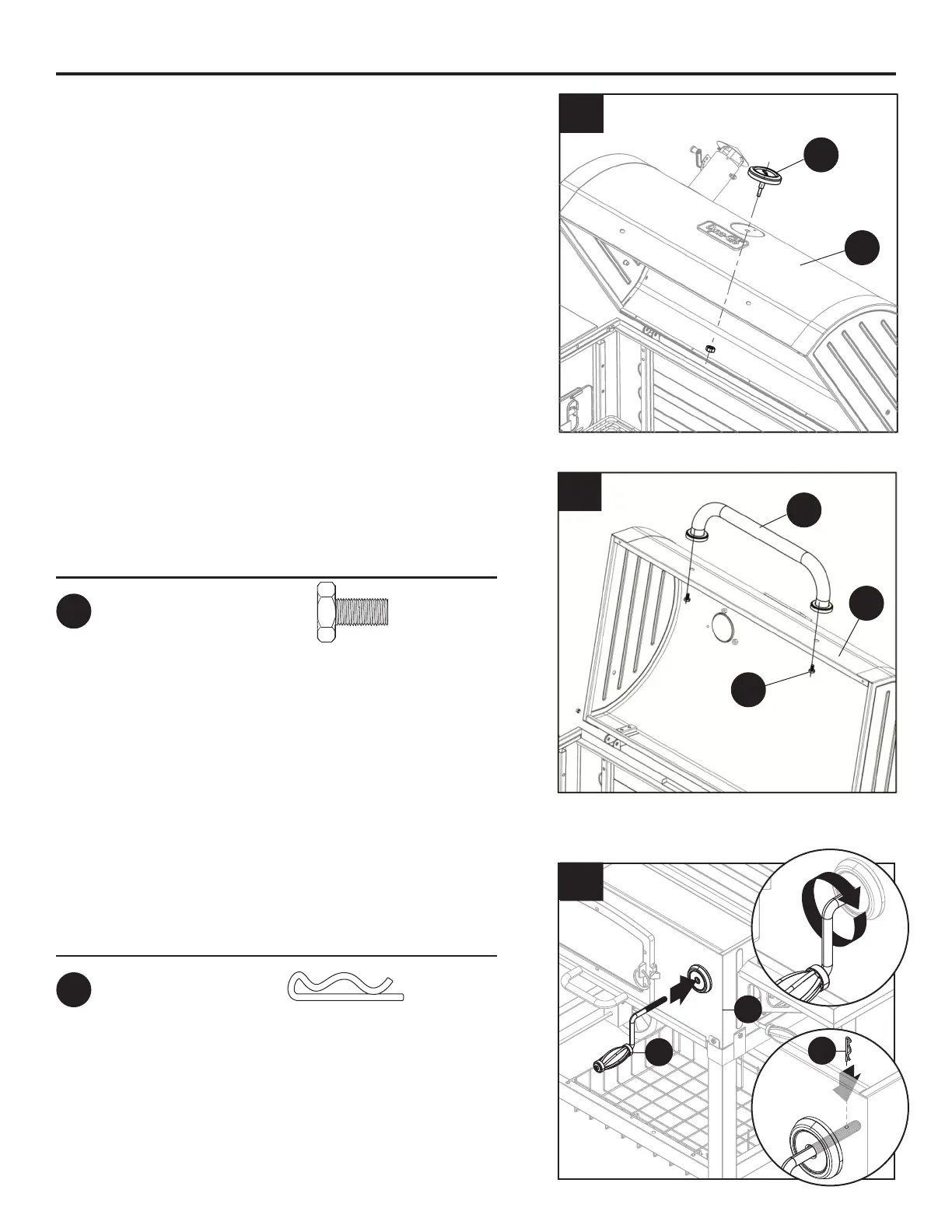

16. Attach temperature gauge (X) to lid and rebox
assembly (B) using pre-assembled nut .
18. Thread crank handle (F) into lid and rebox
assembly (B). Secure with one cotter pin (FF).
Hardware Used
Cotter Pin
x 1
FF
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
16
B
X
18
17. Attach lid handle assembly (C) to lid and rebox
assembly (B) using two M6x12 bolts (AA).
17
B
AA
C
M6x12 Bolt
x 2
AA
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
