Dyna-Glo DGN576DNC - Page 12

20
12

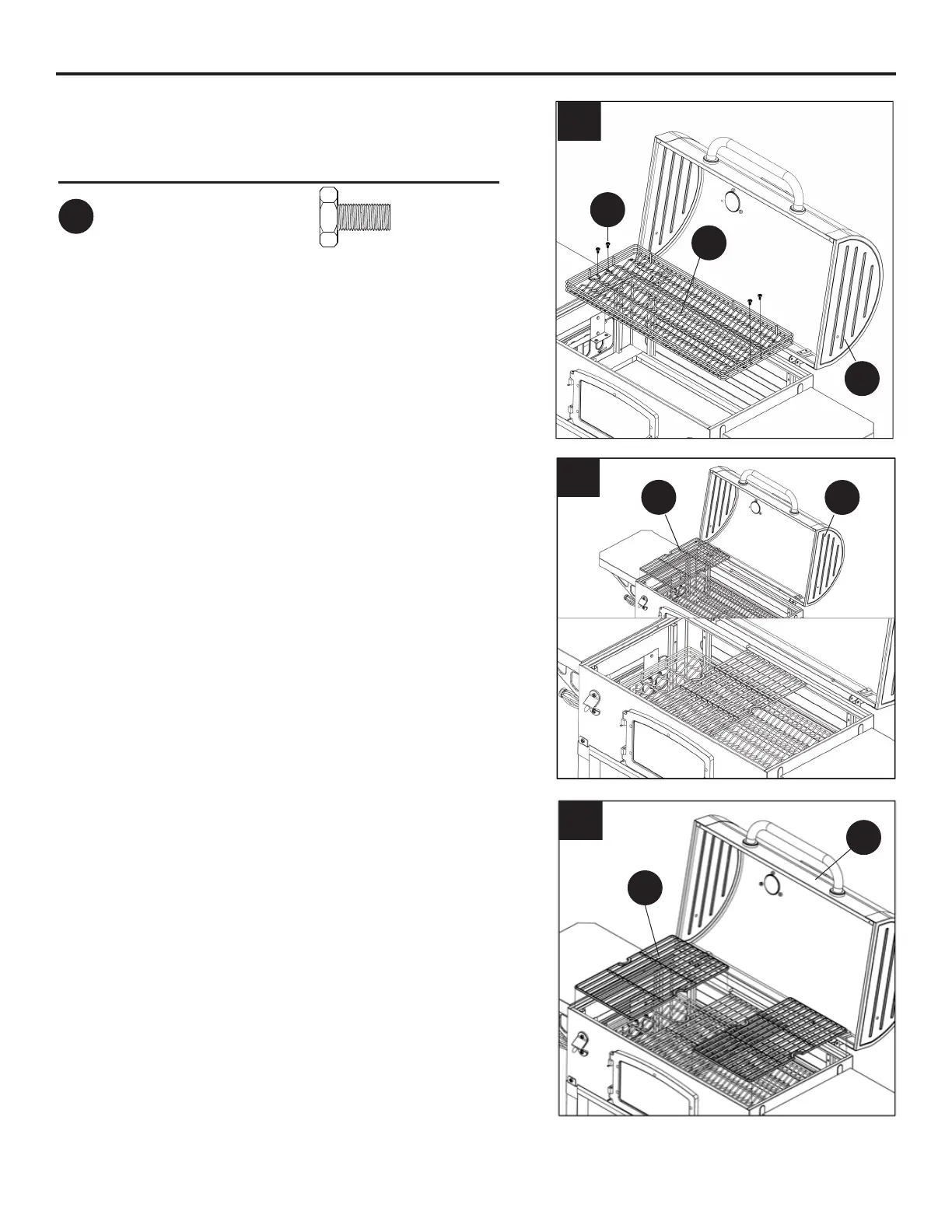

ASSEMBLY INSTRUCTIONS
19. Attach charcoal tray (S) to inside of lid and
rebox assembly (B) using four M6x12 bolts (AA).
20. Place one grate (T) onto the far left side of
grate frame inside the lid and rebox assembly
(B). Slide to center of grill.
21. Place a second grate (T) on the lower grate
frame of the lid and rebox assembly (B) (far left
side). Place the third grate (T) on the upper
grate frame of the lid and rebox assembly (B)
as shown.
19
S
AA
B
Hardware Used
M6x12 Bolt
x 4
AA
M6x12 Bolt
Qty. 27
M6x20 Bolt
Qty. 14
M5 Shoulder
Bolt
Qty. 8
M8 Washer
Qty. 2
M8 Nut
Qty. 2
Wheel Axle
Sleeve
Qty. 2
Hinge Bolt
Qty. 2
M6 Lock Nut
Qty. 3
M5 Lock Nut
Qty. 8
M6x30 Bolt
Qty. 2
AA
BB CC DD EE
GG HH II
JJ
LL
Wrench
Qty. 1
Cotter Pin
Qty. 7
FF
KK
B
T
21
B
T
