Dyna-Glo DGPH402SS - Page 11

11

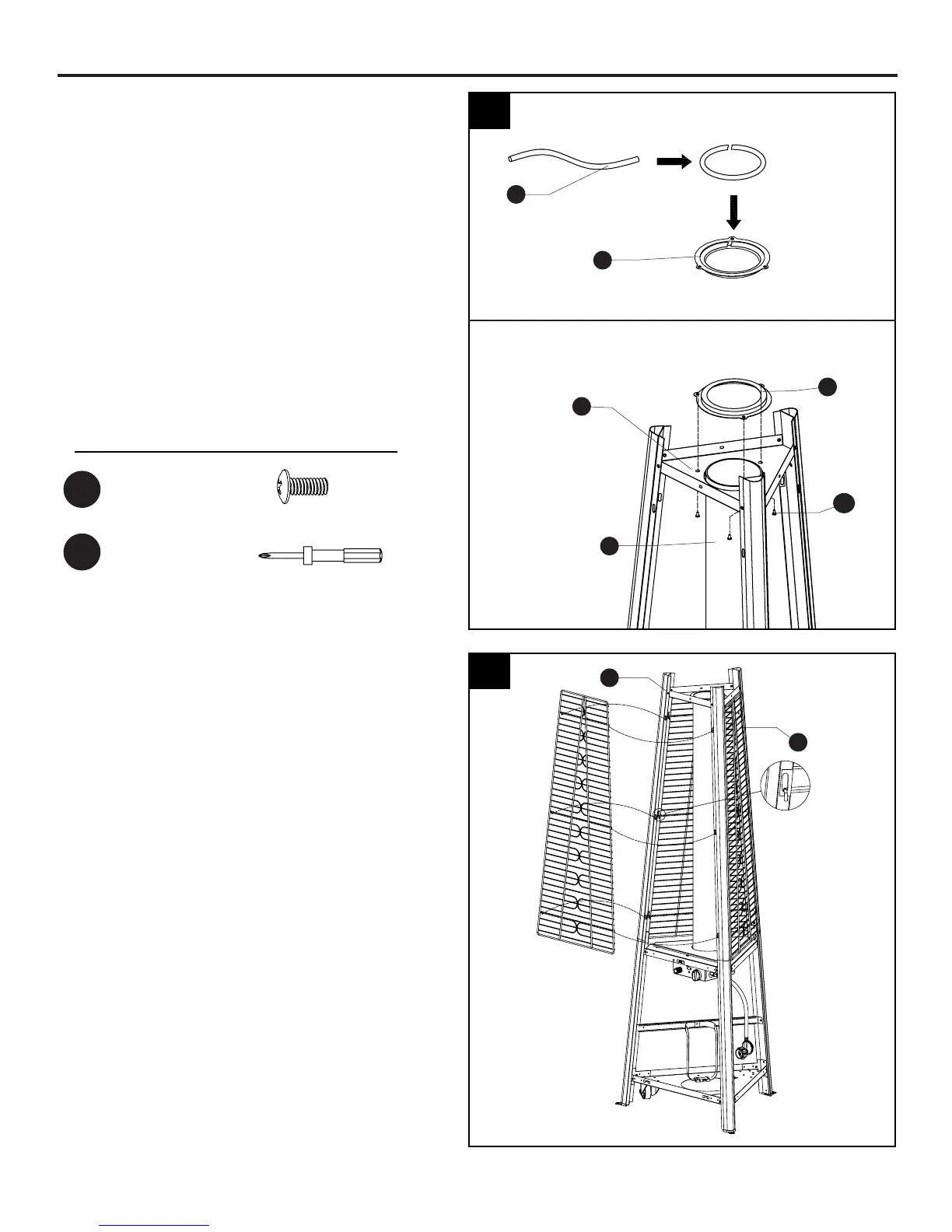

9. Wearing gloves, shape the ceramic ber
belt (D) into a ring and put it inside the
upper plate cover (C).
Place the upper plate cover assembly (with
ceramic ber belt inside) over the top of the
glass tube (F). Press to ensure the ceramic
ber belt (D) attaches to the outer edge of
the glass tube (F).
Align the three holes of the upper plate
cover (C) with the corresponding holes in
the upper plate (E). Secure with three
M5 x 12 mm screws (EE). Tighten with the
Phillips screwdriver (OO).
10. Hang the hooks of the protective guards
(O) onto the holes in the upper supports
(G) as illustrated.
ASSEMBLY INSTRUCTIONS
Hardware Used
9
10
Phillips
screwdriver
M5 x 12 mm Screw
x 3
EE
OO
D
C
F
O
E
EE
G
WARNING: Wear gloves when assembling.
DO NOT touch the ceramic ber belt (D)
with bare hands.
C
