10

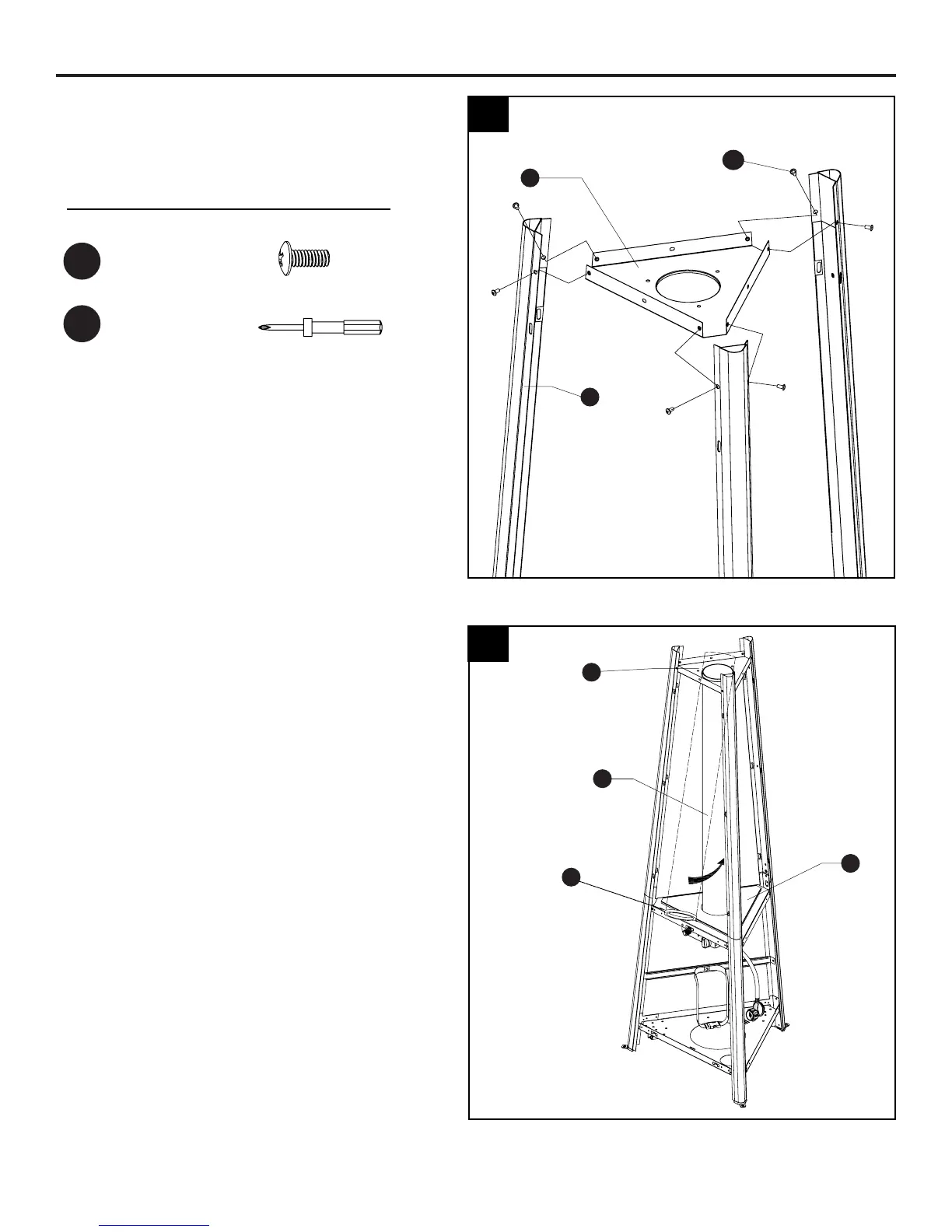

7. Attach the upper plate (E) to the upper
supports (G) with six M5 x 12 mm screws
(EE) as illustrated. Tighten with the Phillips
screwdriver (OO).
8. Fit the black silicone ring (H) to the lower
edge of the glass tube (F). Carefully install
the glass tube (F) by inserting it through the
center hole in the upper plate (E). Slide the
glass tube (F) into the center hole in the
control box assembly (I).
Check and ensure the glass tube (F) is
positioned properly and is completely
covering the center hole in the control box
assembly (I).
ASSEMBLY INSTRUCTIONS
BLACK SILICONE
RING
WARNING! The black
silicone ring must be in place
prior to operating the heater.
Hardware Used
7
8
E
G
EE
Phillips
screwdriver
M5 x 12 mm Screw
x 6
EE
OO
H
F
E
I
To Next Page
