9

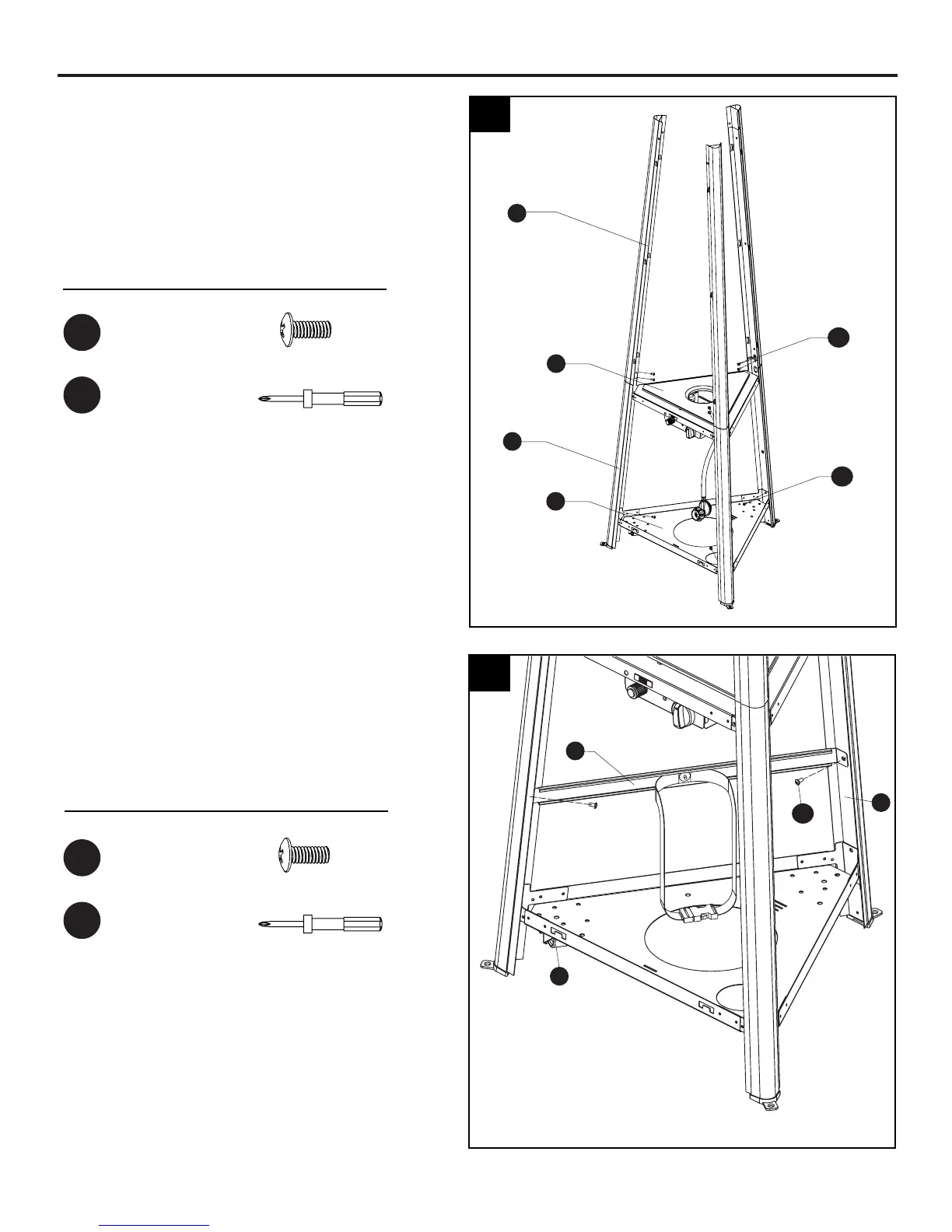

5. Secure the bottom plate (R) and the lower
supports (K) with three M5 x 12 mm screws
(EE) as illustrated.
Secure the control box assembly (I), the lower
supports (K) and the upper supports (G) with
six M5 x 12 mm screws (EE) as illustrated.
Tighten all screws with the Phillips
screwdriver (OO).
6. Note: Make sure to attach the block belt on
the same side as the wheel assembly (Q).
Attach the block belt (J) to the lower supports
(K) with two M5 x 12 mm screws (EE). Tighten
with the Phillips screwdriver (OO).
ASSEMBLY INSTRUCTIONS
Phillips
screwdriver
Phillips
screwdriver
M5 x 12 mm Screw
M5 x 12 mm Screw
x 9
x 2
Hardware Used
Hardware Used
EE
EE
OO
OO
5
K
I
R
G
EE
6
EE
Q
J
K
EE
