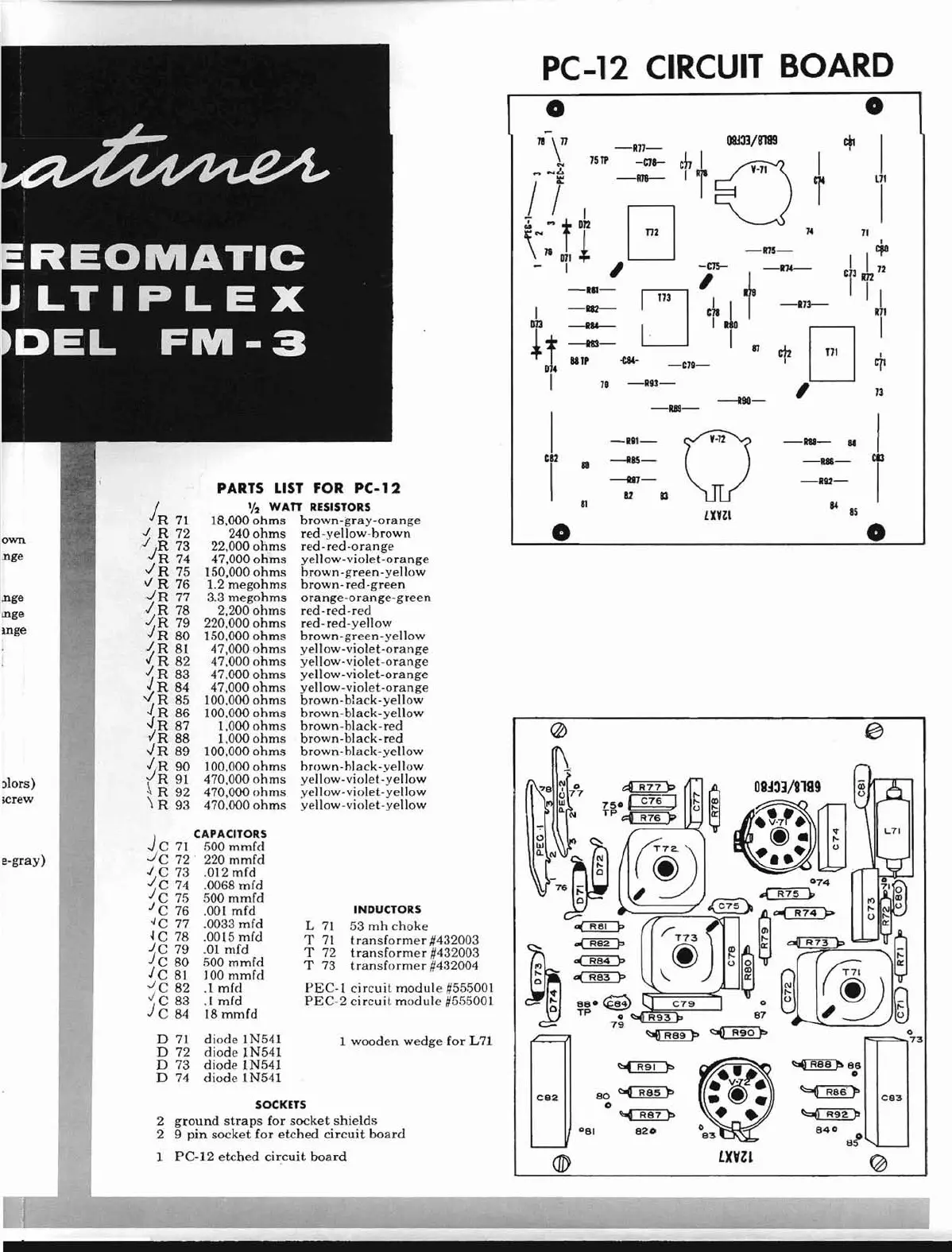

PC-12 CIRCUIT BOARD
C82
I
Ii
I
1 wooden wedge for L71
INDUCTORS
L 71 53 mh choke
T 71 transformer #432003
T 72 transformer #432003
T 73 t.ransformer #432004
PECor circuit module #55.5001
PEC-2 circuit module #555001
PARTS LIST FOR P(-12
'!2 WATT RESISTORS
18.000 ohms brown-gray-orange
240 ohms red-yellow-brown
22.000 ohms red-red-orange
47,000 ohms yellow-violet-orange
150,000 ohms hrown-green-yellow
1.2 megohms brown-red-green
3.3 megohms orange-orange-green
2.200 ohms red-red-red
220.000 ohms red-red-yellow
150.000 ohms brown-green-yellow
47.000 ohms yellow-violet·orange
47.000 ohms yellow-violet-orange
47.000 ohms yellow-violet-orange
47.000 ohms yellow-violet-orange
100.000 ohms brown· black-yellow
100.000 ohms brown-black-yellow
1,000 ohms brown-black-red
1.000 ohms brown-black-red
100.000 ohms brown·hlack-yellow
100.000 ohms hrown-black-yellow
470.000 ohms yellow-violet-yellow
470.000 ohms yellow-violet· yellow
470.000 ohms yellow-violet·yellow
J
CAPACITORS
e 71 500 mmfd
Je 72 ' 220 mmfd
j e 73 .012 mfd
~ e 74 .0068 mfd
j e 75 500 mmfd
e 76 .001 mfd
"e 77 .0033 mfd
~ e 78 .00[5 mfd
J) e 79 .01 mfd
e 80 500 mmfd
Je81100mmfd
je 82 .1 mfd
e 83 .1 mfd
Je 84 18 mmfd
D 71 diode IN541
D 72 diode IN541
D 73 diode IN541
D 74 diode LN541
SOCKETS
2 ground straps for socket shields
2 9 pin socket for etched circuit board
1 PC-12 etched circuit board
J
R
71
J R 72
./ R 73
J
R
74
JR 75
II R 76
JR 77
JR 78
JR 79
JR 80
;
JR 81
R 82
j R 83
JR 84
VR 85
JR 86
-JR 87
.JR 88
JR 89
yR 90
\ R 91
-\ R 92
\ R 93
)lors)
lcrew
e-gray)
nge
lIlge
mge
own
nge
