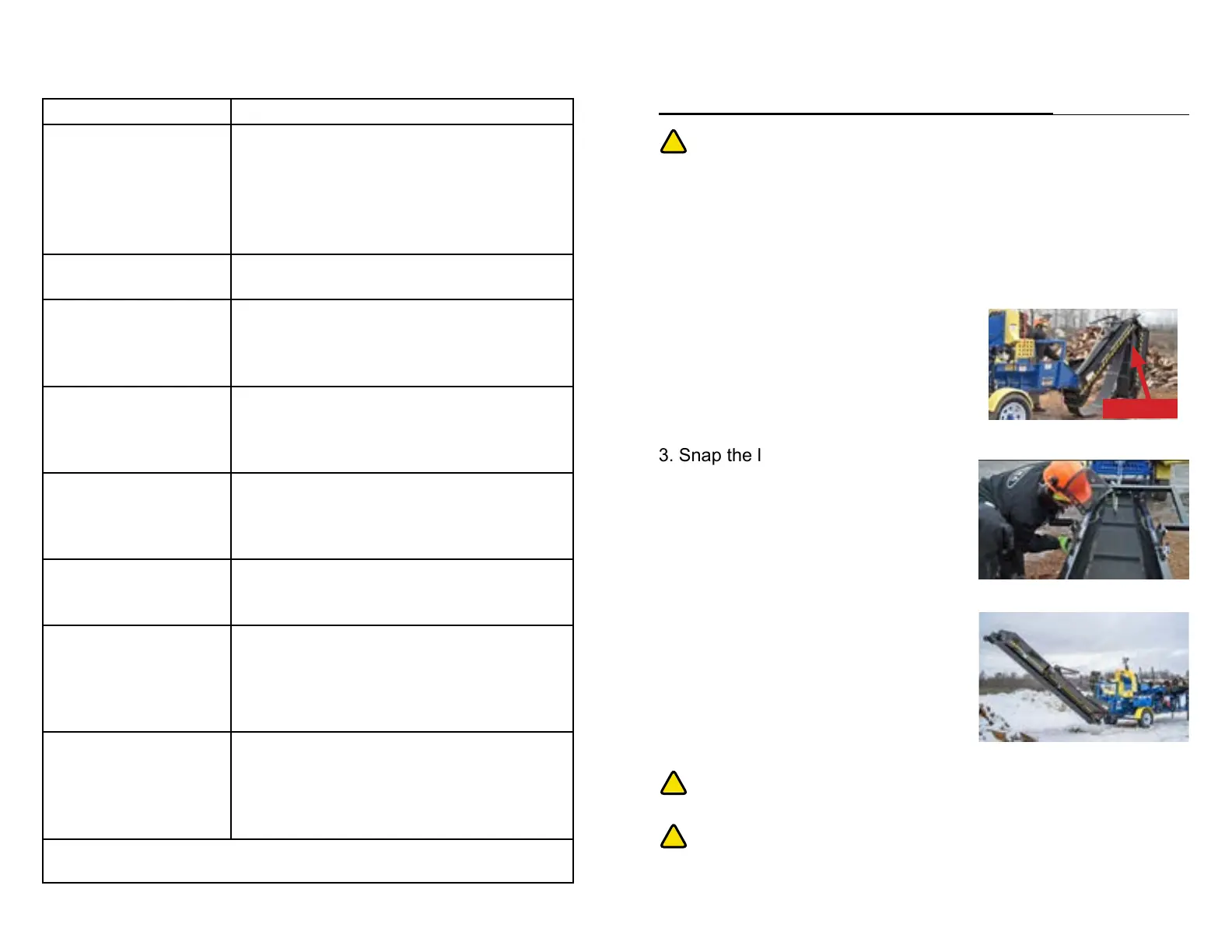

SC-14 • TROUBLE SHOOTING
PROBLEM SOLUTION
SAW MOTOR STALLS The pressure on the saw feed cylinder may
be too high. It should be approximately 75
psi. See Fig. 14. The soft start spring may
be set too hard or the saw chain may be
dull. Check splitter pressure to make sure it
is in correct parameters.
THE SPLITTER
STALLS
The pressure may be too low. This should
be between 2500-3000 PSI. See Fig. 12.
SAW MOTOR
STARTS HESITANTLY
OR SLOWLY
The relief valve on the clamp may be set
too low. It should be set at 600 psi. See Fig.
13. The aluminum cap on top of the selector
valve may need to be cleaned.
SAW LACKS POWER The relief valve may be set too low on the
splitter valve. The aluminum cap on top of
the selector valve may need to be cleaned.
See Fig.12.
THE SAW BAR DOES
NOT CUT ALL THE
WAY THROUGH THE
LOG
Increase saw feed pressure to 110 psi
Replace bar and chain.
A worn bar will cause a good chain to bind.
SPLITTER DETENT
NOT HOLDING TILL
FULLY RETRACTED
With hydraulic oil warmed to operating
temperature. Adjust detent adjustment bolt
in until it holds.
THE SAW BAR HITS
GUARD WHEN IT
RETURNS
The saw bar pivot needs adjustment
forward. Check that the softstart plates are
even on the top when the sawbar is in the
up position. see g.15
Adjust the saw feed clevis up.
ENGINE STARTS
HARD
Use fresh clean fuel. Do not use ethanol
type fuels.
Check and replace air and fuel lters.
Check spark plugs(on gas models).
Check glow plugs(on diesel models).
SC-15 • SET UP
SETTING UP YOUR FIREWOOD PROCESSOR
Read and understand this entire section for proper and safe
set up.
To set up the rewood processor conveyor, follow these steps:
1. Lower conveyor with the electric winch until the wheels touch
the ground. Remove the belt pin. See Fig 1.
!
Fig. 2
Fig. 3
NEVER stand underneath the conveyor.
ALWAYS USE SAFETY CHAIN ON CONVEYOR!
!
!
Remove Pin
2. Pull the upper conveyor portion
out, see Fig 1, then nish lowering
the conveyor.
3. Snap the locks securely into place,
see Fig 2.
4. Raise the conveyor to a convenient
height, see Fig 3 then fasten the
safety chain.
5. Lower stabilizer leg to the lowest
hole, then lower the jack until you
have weight on both legs.
FIG 19 NEED PIC
OF SELECTOR
ON PG 35
To Next Page
