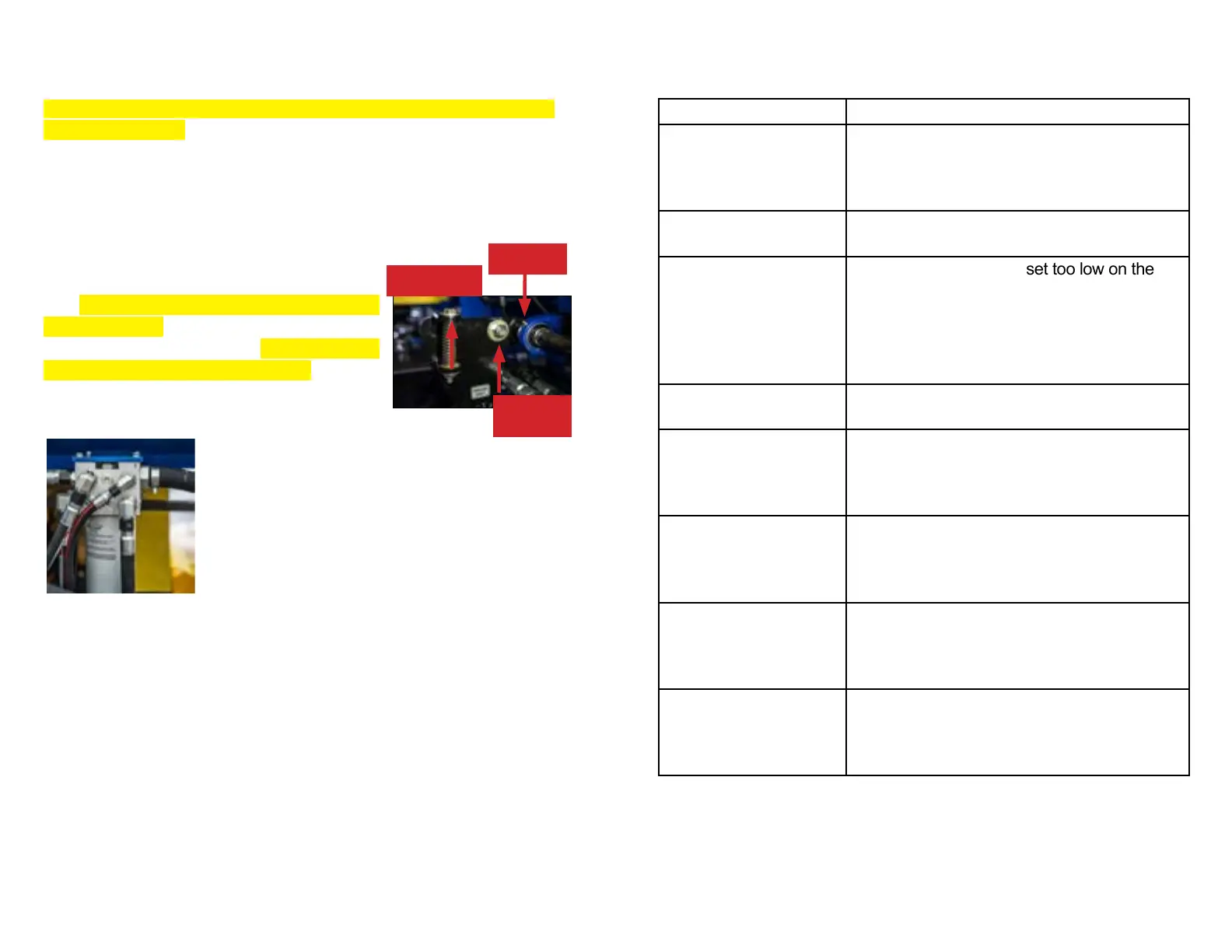

PROBLEM SOLUTION
SAW MOTOR STALLS The pressure on the saw feed cylinder may
be too high. It should be approximately 110
psi. See Fig. 14. The soft start spring may
be set too hard. The saw chain may be dull.
THE SPLITTER
STALLS
The pressure may be too low. This should
be between 2500-3000 psi. See Fig. 12.
SAW MOTOR
STARTS HESITANTLY
OR SLOWLY
The relief valve may be set too low on the
saw down feed. See Fig. 14. The relief valve
on the clamp may be set too low. It should be
set at 600 PSI. See Fig. 13 The engine may
not be properly accelerated. The aluminum
cap on the selector valve needs cleaning.
SAW LACKS POWER The relief valve may be set too low on the
pump.
THE SAW BAR DOES
NOT CUT ALL THE
WAY THROUGH THE
LOG
The saw chain is dull. Increase the saw-
feed pressure to 100 psi
Replace bar and chain.
A worn bar will cause a good chain to bind.
SPLITTER VALVE
DOESN’T HOLD
IN THE RETRACT
DETENT
Warm the oil to operating temperature.
Adjust detent until it holds.
THE SAW BAR HITS
GUARD WHEN IT
RETURNS
The saw bar pivot needs adjustment
forward. This is done on the saw feed
cylinder loosen the clevis on the top of the
cylinder. Fig. 15.
ENGINE STARTS
HARD
Check engine glow plugs.
Use the block heater in cold weather.
Replace fuel lters.
Use fresh,clean, nonbio-deisel fuel
SC-16 • TROUBLE SHOOTING
The bearings should be greased with one shot of grease every
200 hours of use. The engine must be maintained according to
the instructions of the engine manual. The 404 chain needs to be
sharpened or replaced whenever it is dull. If it dulls on one side it
may pull the bar to the side and cause binding. Your SC-16 has
a 25” harvester bar and runs and 89 tooth drive link for its chain.
The hydraulic uid is a standard 46 weight
hydraulic uid. Keep the Soft Start pivot
greased daily. See Fig 15. Change the oil
and lter every 250 hours of use. See Fig
16.
SC-16 • MAINTENANCE
Fig. 16
Fig. 15
Grease
Keep Plates
Even
Do Not
Tighten
To Next Page
