4.9 IO Board
Removing IO Board
Remove IO Board according to the following procedures and Figures 4-23.
1.
Disconnect the following cable from the connector on
IO Board: - IO Board cable from JDB1
2.
Remove three M2.0x3.0x4.5 black Phillips head screw securing IO Board.
3.
Remove the IO panel Myla.

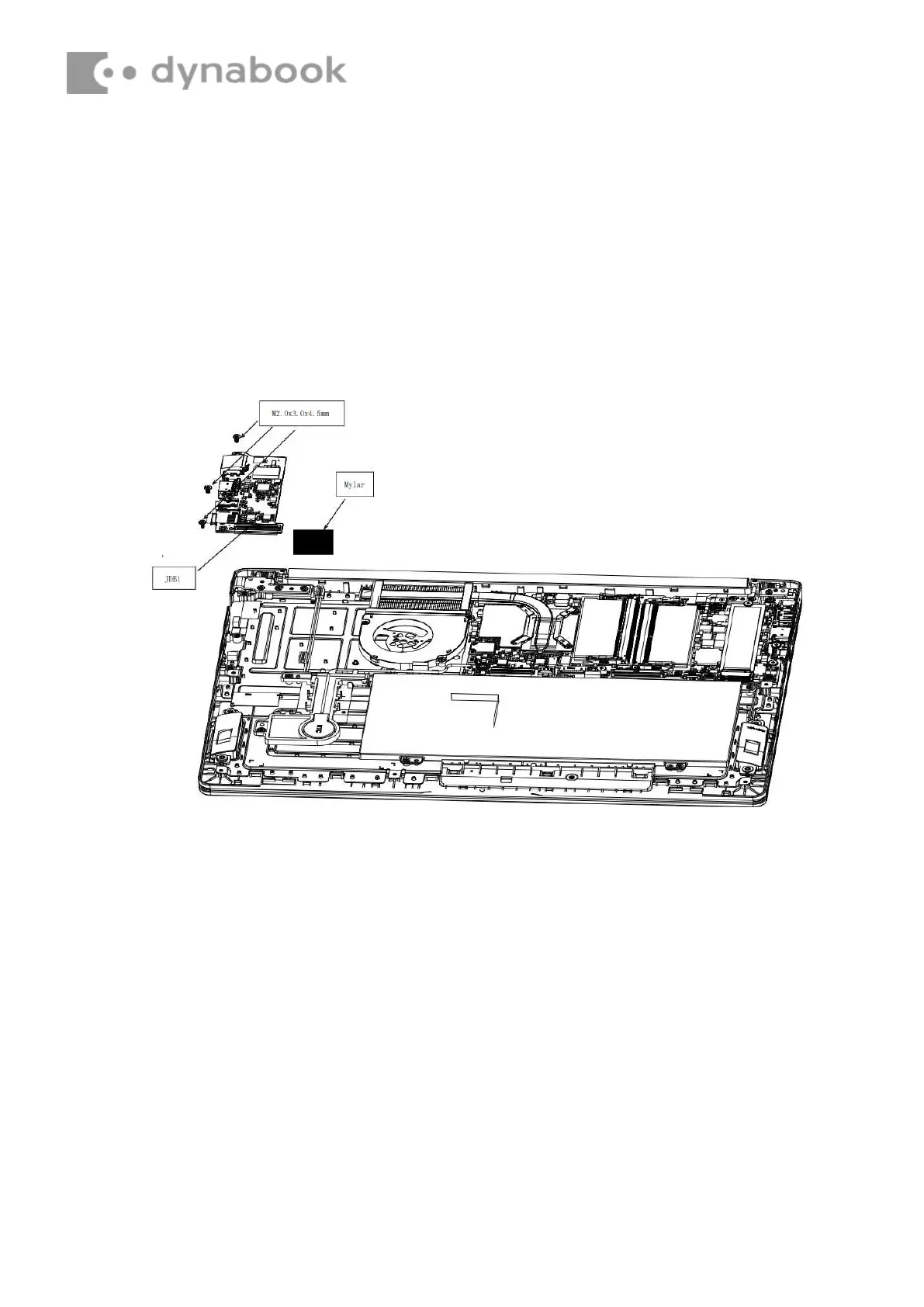

Figure 4-23 Removing IO Board
To Next Page
