4.10 Speaker
Removing Speaker
Remove Speake according to the following procedures and Figure 4-25.
1.
Disconnect Speaker cable from SPK on system board.
2.
Remove left and right Speaker.

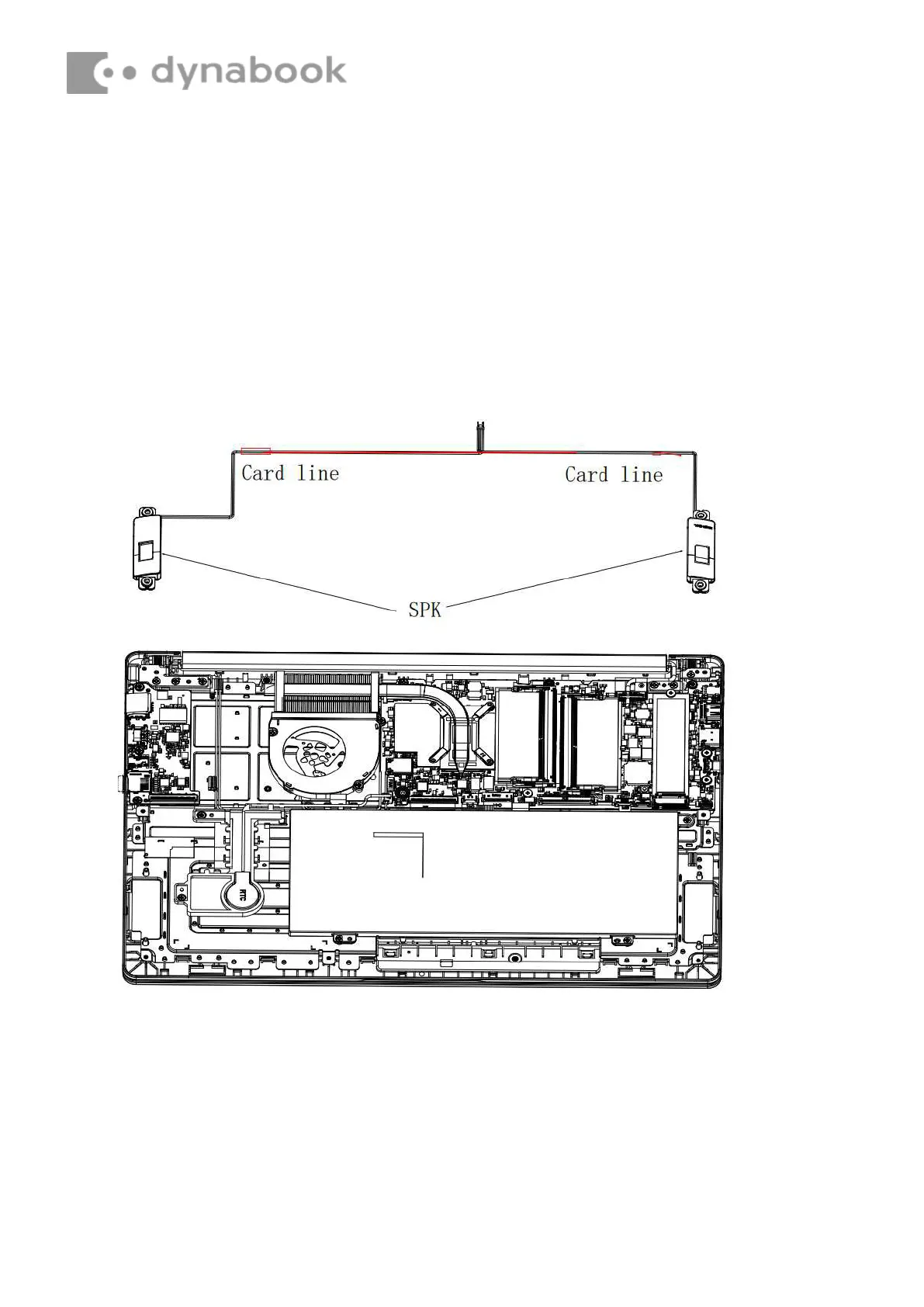

Figure 4-25 Removing Speaker
