1.4 Connectors

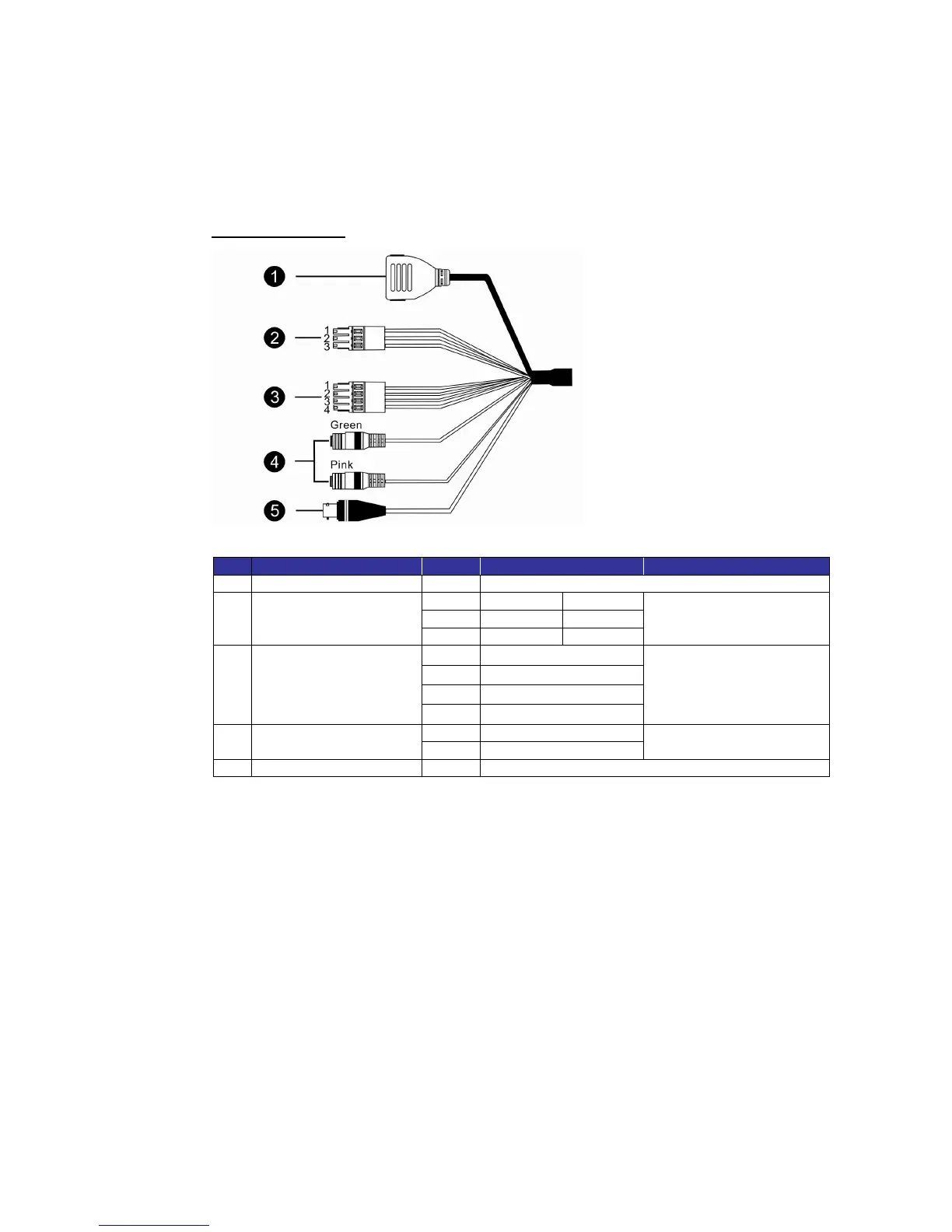

The diagram below shows the IP Dome Camera’s reset button and various
connectors. Definition for each connector will be given as follows.
All-in-one Cable
No
Cable
Pin
Definition
Remarks
1
Network
(with PoE)
- RJ-45 connector with LED
2
Power
(3-pin Terminal Block)
1 AC 24V-1
DC (-)
Power connection 2 GND Reserved
3 AC 24V-2
DC (+)
3
Alarm
(4-pin Terminal Block)
1
ALM_DI－
Alarm connection
2
ALM_DI＋
3
ALM_DO－
4
ALM_DO＋
4 Audio I/O
Pink Line In/ Mic In
Two-way audio
transmission
Green
Line Out
5
BNC
- Analog Video Output
