COBRA-2 APPLICATION GUIDE
COBRA-2 COMPACT LINE-ARRAY SYSTEM FOR SMALLER VENUES
Confi guration Active 2-Way
Cabinet Types
4 x Cobra-Top,
4 x Cobra-PWH
Amplifi ers
2 x LX 3000
Controllers
DSP 260 or DSP 600
Cables
4 x 4-pole long,
4 x 4-pole short
Accessories
CSW 25
Horizontal
Coverage
2 x 120°
Total Amp Power
4 x 1500 W = 6 kW
Typical Distance
30 - 40 m
Options
-
Comments
prewired Amprack include
NF - 32 A AC-Panel

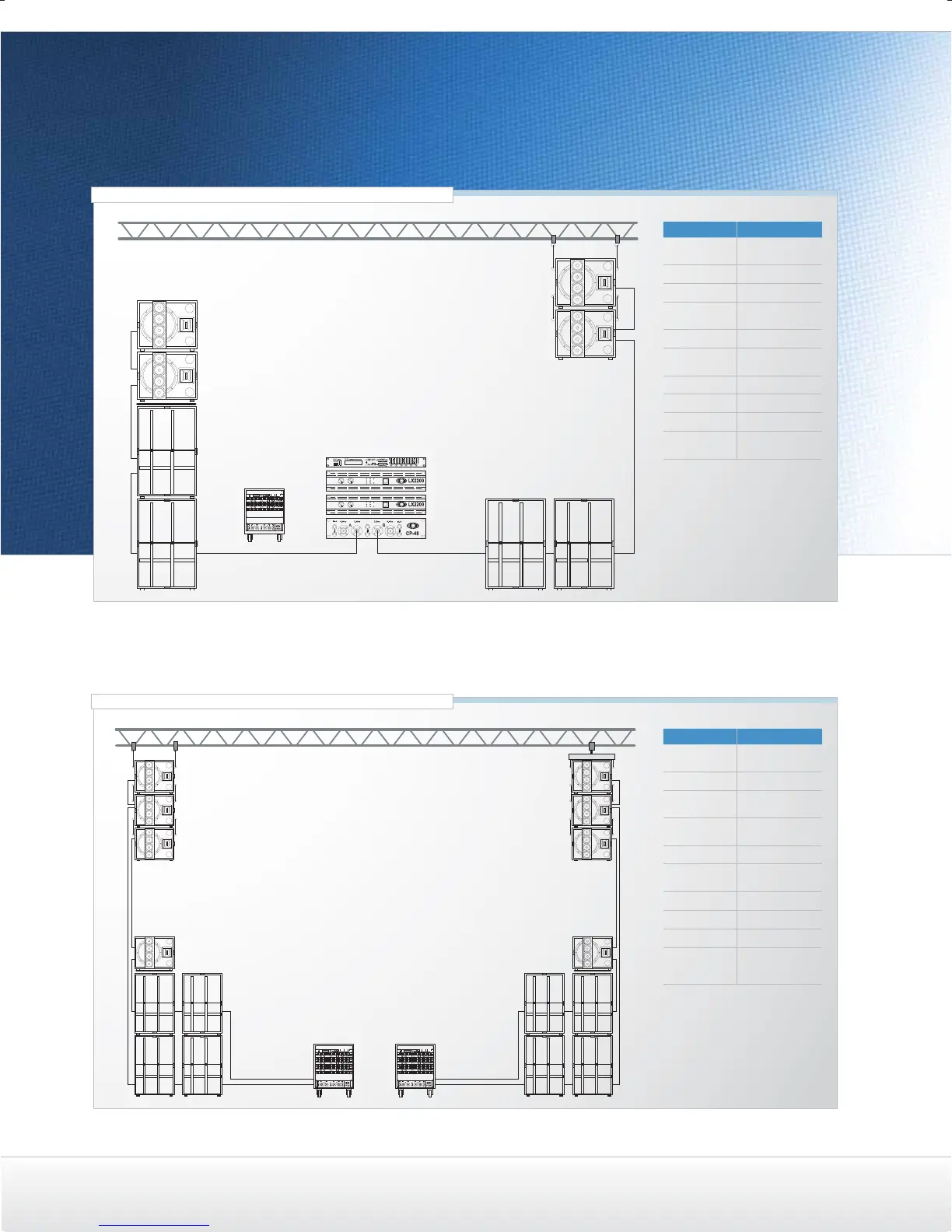

COBRA-2 COMPACT LINE-ARRAY SYSTEM FOR MID-SIZED VENUES
Confi guration Active 2-Way
Cabinet Types
2 x Cobra-Top,
8 x Cobra-PWH
Amplifi ers
6 x LX 3000
Controllers
2 x DSP 260
or DSP 600
Cables
8 x 4-pole long,
8 x 4-pole short
Accessories
-
Horizontal
Coverage
2 x 120°
Total Amp Power
10 x 1500 W = 15 kW
Typical Distance
30 - 50 m
Options
FG 600 (Grid)
Comments
2 x prewired Amprack
incl. NF- & 32 A
AC-Panel
2 x Cobra-Top
2 x Cobra-Top
TC-04
CSW 25
2.5° Wedge
Cobra-PWH
Cobra-PWH Cobra-PWH
FG 600 / CSSGTC-04 / CSST
Cobra-TopCobra-Top
Cobra-TopCobra-Top
Cobra-TopCobra-Top
Cobra-TopCobra-Top
4 x Cobra-PWH 4 x Cobra-PWH
Amp-Rack Amp-Rack
Cobra-PWH
Amp-Rack
4-Channel
DSP 260 or DSP 600
LX 3000
LX 3000
CP-48
