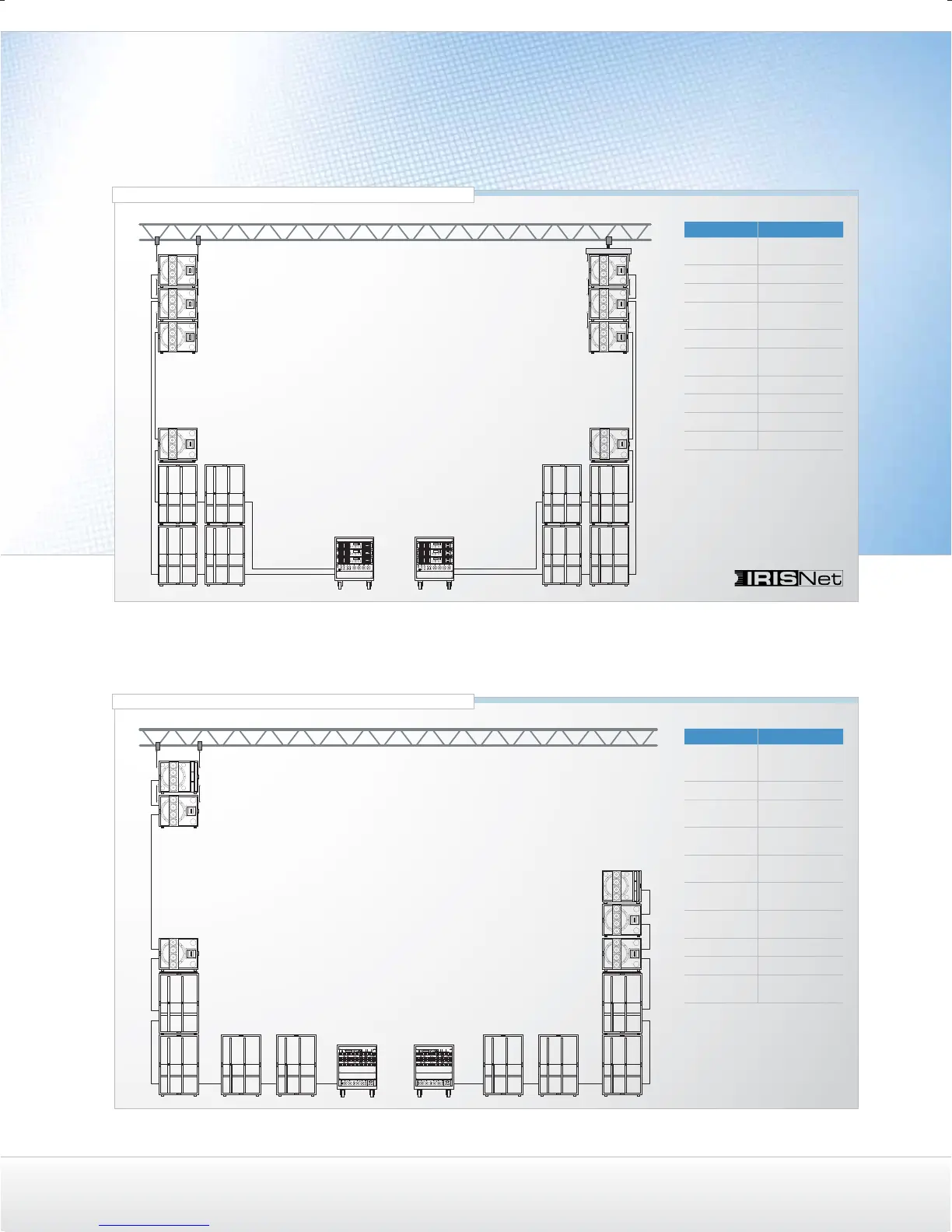

COBRA-4 LINE-ARRAY SYSTEM FOR MID-SIZED VENUES
Confi guration Active 4-Way
Cabinet Types
2 x Cobra-4 Far,
4 x Cobra-4 Top,
8 x Cobra-PWH
Amplifi ers
4 x LX 3000
Controllers
2 x DSP 260
or DSP 600
Cables
6 x 8-pole long,
8 x 8-pole short
Accessories
Rigging Straps CSST,
CSSM
Horizontal
Coverage
2 x 120°
Total Amp Power
2 x 2100 W,
6 x 1800 W= 15kW
Typical Distance
40 - 80 m
Options
-
Comments
2 x prewired Amprack
incl. NF & AC-Panel
COBRA-2 COMPACT LINE-ARRAY SYSTEM FOR MID-SIZED VENUES
Confi guration Active 2-Way
Cabinet Types
2 x Cobra-Top,
8 x Cobra-PWH
Amplifi ers
6 x H 2500
Controllers
6 x RCM-26
Cables
8 x 4-pole long,
8 x 4-pole short
Accessories
-
Horizontal
Coverage
2 x 120°
Total Amp Power
12 x 2500 W= 30 kW
Typical Distance
30 - 50 m
Options
FG 600 (Grid)
Comments
2 x prewired Amprack
COBRA-4 APPLICATION GUIDE
FG 600 / CSSGTC-04 / CSST
Cobra-TopCobra-Top
Cobra-TopCobra-Top
Cobra-TopCobra-Top
Cobra-Top Cobra-Top
4 x Cobra-PWH
4 x Cobra-PWH 4 x Cobra-PWH
Amp-RackAmp-Rack
Cobra-4 Top
Cobra-4 Top
TC-04
2 x Cobra-4 Top
Cobra-4 Far
1 x Cobra-4 Far
CSW 25
2.5° Wedge
4 x Cobra-PWH
