COBRA-4 APPLICATION GUIDE

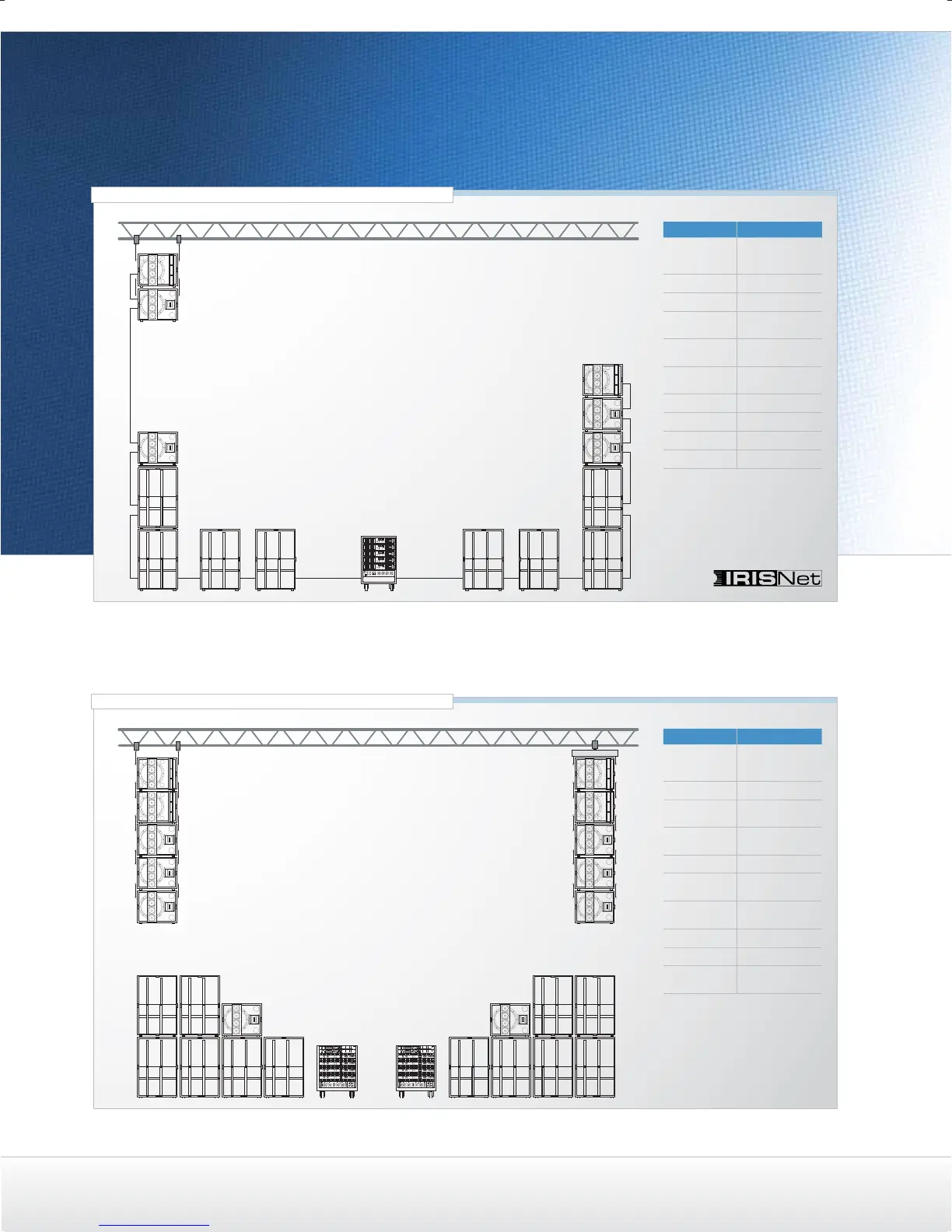

COBRA-4 LINE-ARRAY SYSTEM FOR LARGER VENUES
Confi guration Active 4-Way
Cabinet Types
4 x Cobra-4 Far,
8 x Cobra-Top,
12-16 x Cobra-PWH
Amplifi ers
8 x LX 3000
Controllers
4 x DSP 260
or DSP 600
Cables
12 x 8-pole long,
16 x 8-pole short
Accessories
-
Horizontal
Coverage
2 x 120°
Total Amp Power
4 x 2100 W
+ 12 x 1800 W= 30kW
Typical Distance
40 - 80 m
Options
FG 600 (Grid)
Comments
System can be split into
two separate Systems
COBRA-4 LINE-ARRAY SYSTEM FOR MID-SIZED VENUES
Confi guration Active 4-Way
Cabinet Types
4 x Cobra-4 Far,
4 x Cobra-Top,
8 x Cobra-PWH
Amplifi ers
5 x H 5000
Controllers
5 x RCM-26
Cables
6 x 8-pole lomg,
8 x 8-pole short
Accessories
Rigging Straps CSST,
CSSM
Horizontal
Coverage
2 x 120°
Total Amp Power
10 x 2500 W = 25 kW
Typical Distance
40 - 80 m
Options
-
Comments
-
4 x Cobra-PWH 4 x Cobra-PWH
Cobra-4 Top
Cobra-4 Far Cobra-4 Far
Cobra-4 Far Cobra-4 Far
Cobra-4 Top Cobra-4 Top
Cobra-4 Top Cobra-4 Top
Cobra-4 Top
Cobra-4 Top
Frontfi ll
Cobra-4 Top
Frontfi ll
Amp-Rack
8-Channel
Amp-Rack
8-Channel
Cobra-4 Top
Cobra-4 Top
TC-04
2 x Cobra-4 Top
Cobra-4 Far
1 x Cobra-4 Far
CSW 25
2.5° Wedge
