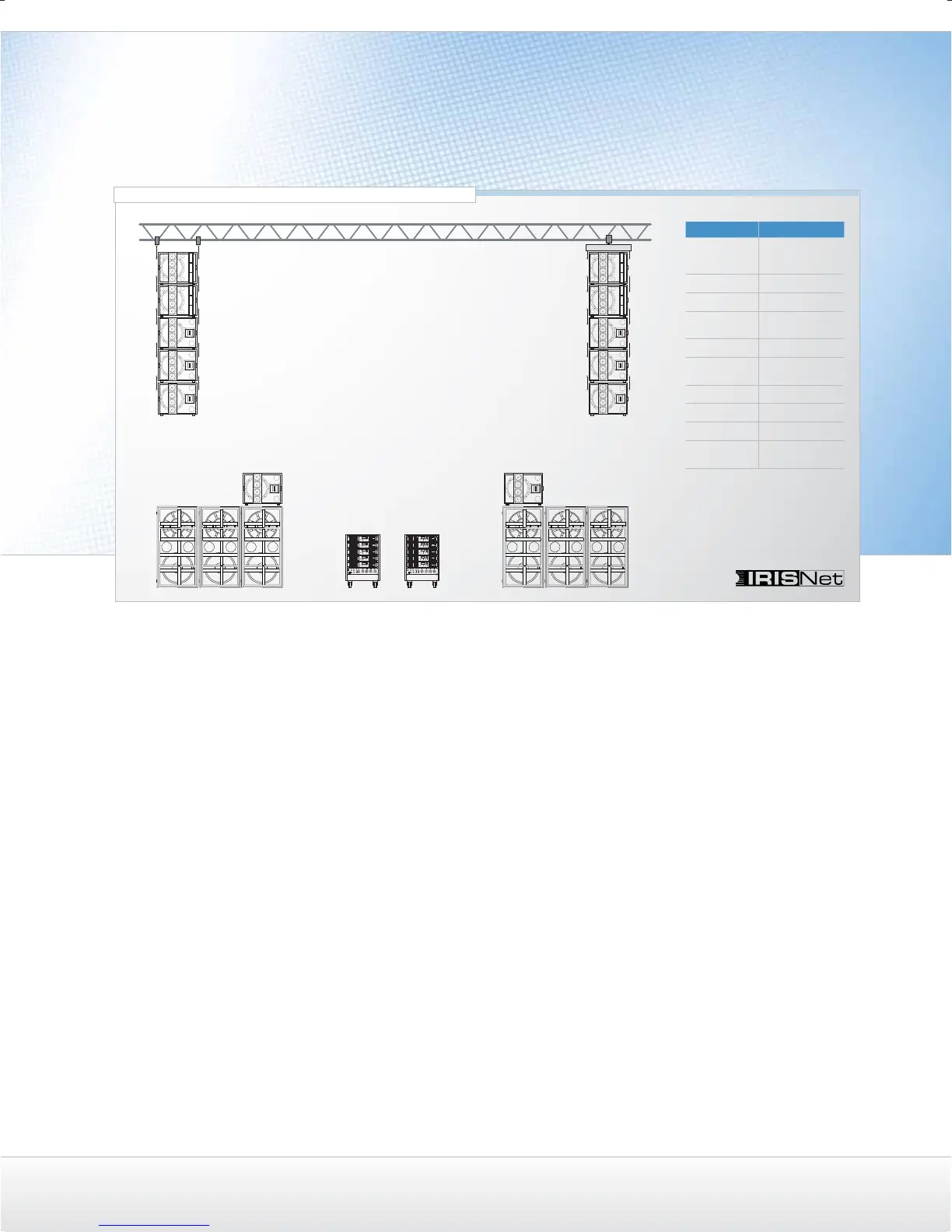

COBRA-4 LINE-ARRAY SYSTEM FOR LARGER VENUES
Confi guration Active 2-Way
Cabinet Types
4 x Cobra-4 Far,
8 x Cobra-Top,
6 x PWH 28
Amplifi ers
10 x H 5000
Controllers
10 x RCM-26
Cables
12 x 8-pole long,
16 x 8-pole short
Accessories
-
Horizontal
Coverage
2 x 120°
Total Amp Power
20 x 2500 = 50 kW
Typical Distance
40 - 80 m
Options
FG 600 (Grid)
Comments
System can be split into
two separate Systems
Cobra-4 Far Cobra-4 Far
Cobra-4 Far Cobra-4 Far
Cobra-4 Top Cobra-4 Top
Cobra-4 Top Cobra-4 Top
Cobra-4 Top
3 x PWH 28 3 x PWH 28
Cobra-4 Top
Cobra-4 Top
Frontfi ll
Cobra-4 Top
Frontfi ll
