7
8
TOOLS REQUIRED:
ASSEMBLY
Your new vehicle requires adult assembly. Because your new vehicle is heavy and
large, we strongly suggest using two people to finish assembly. Set aside around
30 minutes for assembly. Identify all parts before assembly and save all packaging
material until assembly is completed to ensure that no parts are discarded.
17mm Socket Wrench
(included)
WARNING: Children can be harmed by small parts, sharp edges and
sharp points in the vehicle's unassembled state, or by electrical items. In the
unassembled state, this package contains small parts. Adult assembly is required;
children should not handle parts, or help in assembly of the vehicle.
Phillips Screwdriver
(not included)

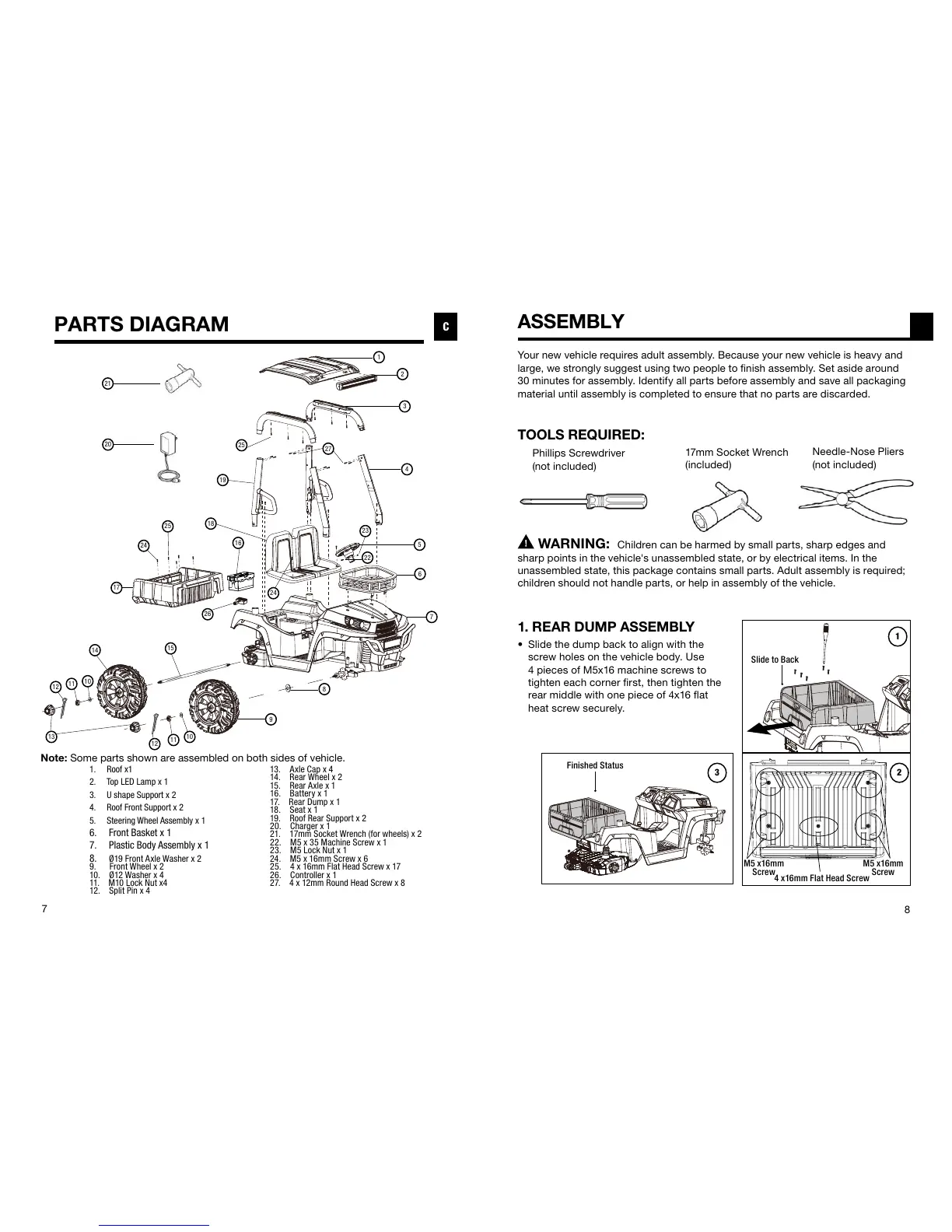

PARTS DIAGRAM
C
1. REAR DUMP ASSEMBLY
• Slide the dump back to align with the
screw holes on the vehicle body. Use
4 pieces of M5x16 machine screws to
tighten each corner first, then tighten the
rear middle with one piece of 4x16 flat
heat screw securely.
Note: Some parts shown are assembled on both sides of vehicle.
1. Roof x1
2. Top LED Lamp x 1
3. U shape Support x 2
4. Roof Front Support x 2
5. Steering Wheel Assembly x 1
6. Front Basket x 1
7. Plastic Body Assembly x 1
8.
Ø19 Front Axle Washer x 2
9. Front Wheel x 2
10. Ø12 Washer x 4
11. M10 Lock Nut x4
12. Split Pin x 4
13. Axle Cap x 4
14. Rear Wheel x 2
15. Rear Axle x 1
16. Battery x 1
17. Rear Dump x 1
18. Seat x 1
19. Roof Rear Support x 2
20. Charger x 1
21. 17mm Socket Wrench (for wheels) x 2
22. M5 x 35 Machine Screw x 1
23. M5 Lock Nut x 1
24. M5 x 16mm Screw x 6
25. 4 x 16mm Flat Head Screw x 17
26. Controller x 1
27. 4 x 12mm Round Head Screw x 8
Needle-Nose Pliers
(not included)
M5 x16mm
Screw
M5 x16mm
Screw
4 x16mm Flat Head Screw
Slide to Back
Finished Status
1
2
3
4
5
22
23
24
24
25
27
25
6
7
8
9
10
12
11
10
14
15
16
18
19
20
21
17
26
12
11
13
1
23
D
To Next Page
