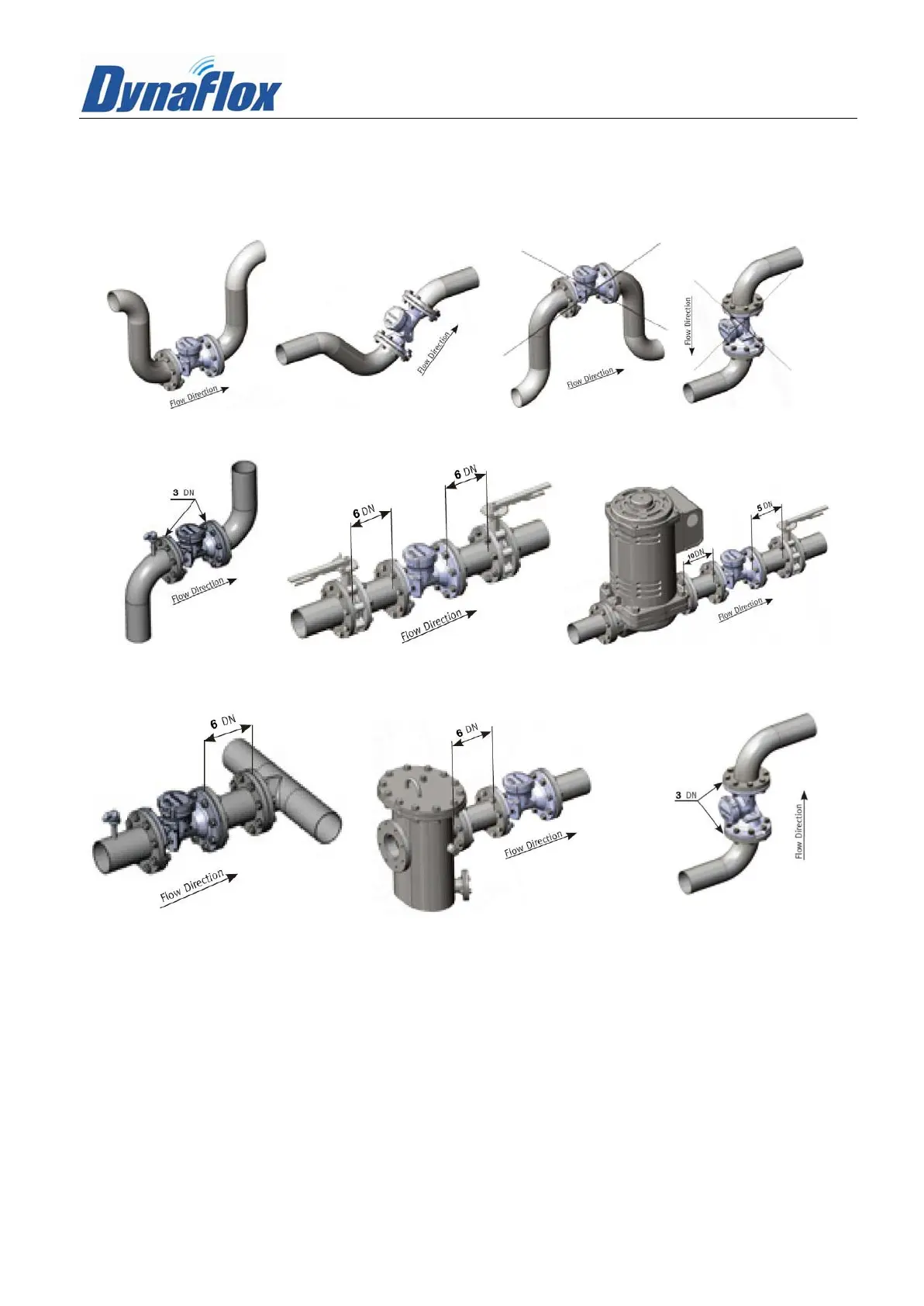

3.2 Location and Position
Only suitable for bulk water meters from DN50 to DN300
A) Proper Installation B) Wrong Installation
C) Recommendations for achieving top performance
3 pipe diameters before and
after elbows (90
o
)
Minimum of 6 pipe diameters before
and after
Minimum of 10 pipe diameters after
pumps
Minimum of 6 pipe diameters before
T connections
Minimum of 6 pipe diameters after
strainers
3 pipe diameters before and after
elbows (90
o
) in vertical installations
