Rhino to RHINO2 Conversion Guide Page 9
Adapting DS52K or DS72K to DS90 / 90-ACT
To adapt a DS52K loom to a DS90 / 90-ACT
loom, use the DS90 MTR/PB ADAPT LOOM
(part no., GLM51981) to connect the motor and
park brakes. This is suitable for motor looms
using Tyco 172134-1 housing.

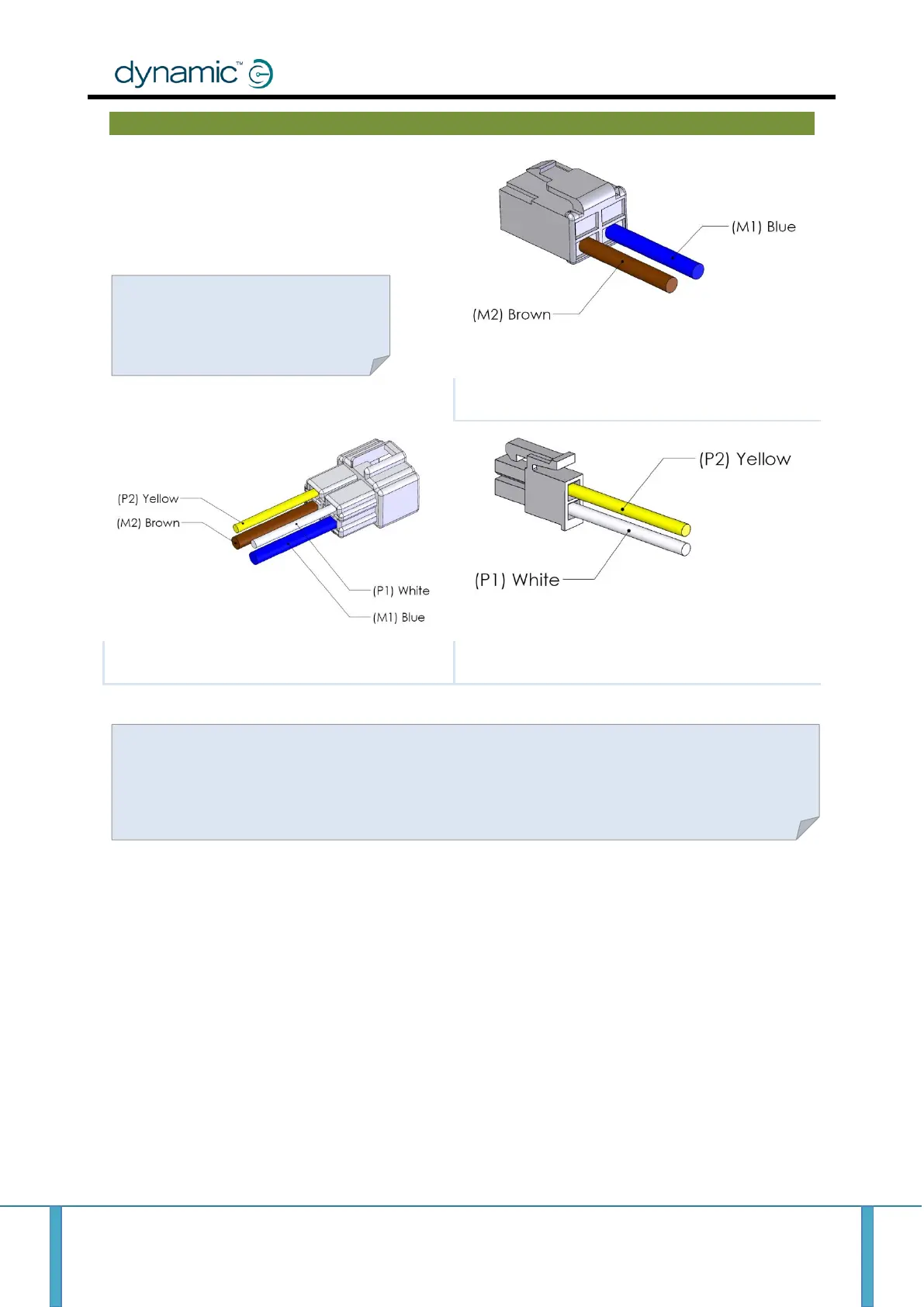

GLM51981: Fit to RHINO2 motor connector
socket
GLM51981: Fit to existing motor loom
connector
GLM51981: Fit to RHINO2 park brake connector
socket
For more information, see the
RHINO2 Installation Manual,
The DS52K, DS72K and DS112K do not require a battery adaptor loom. Simply connect the
existing scooter battery connector directly into the RHINO2 controller’s battery connector.
To Next Page
