GENERAL
DYNAPAC vibrating beams are designed for screeding and compacting concrete of up to plastic consistency.
They consist of a double beam made of light alloy, equipped of a tensioning screw at the end, for the
adjustment of the height.
They are delivered with two carrying handles.
They can be equipped either with electric vibrator (ER505), petrol engine vibrator (BE10) or without vibrator.
The direction of rotation of the electric vibrator can easily be reversed by means of the phase shifter
incorporated in the switch. This has the effect of changing the beam's direction of movement.
Standard lengths starts from 3.25m up to 10.5m. For special lengths or special voltages, get in touch with us.
The electronic and electric devices may contain potentially hazardous substances. Don’t throw
them in nature but evacuate them according to the local regulations and the legislation in force
in the country of use.
According to the European directives 2002/95/CE and 2002/96/CE.

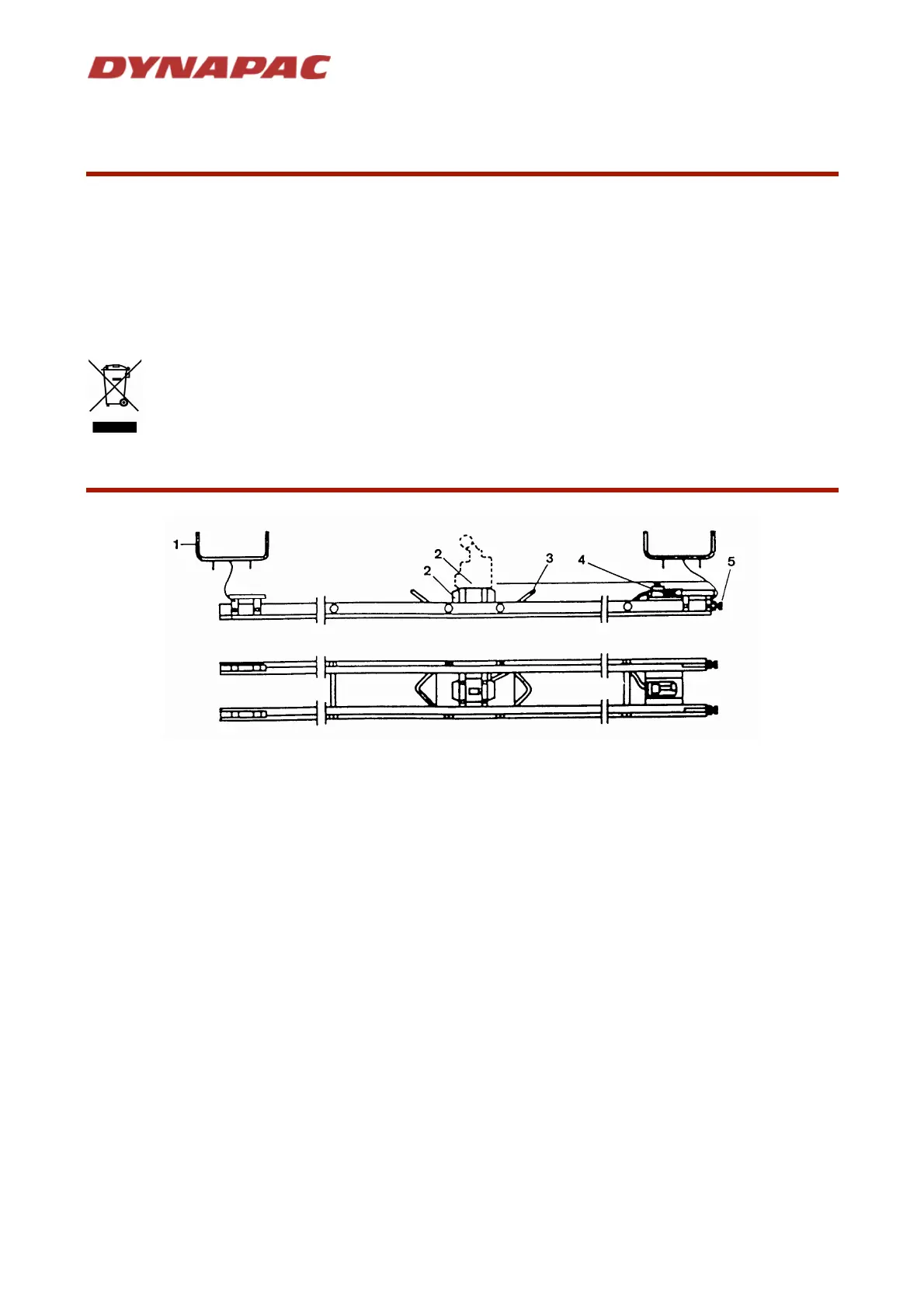

DESIGN
1 Carrying handle 3 Lifting eyelet's 5 Tensioning screw
2 Vibrator 4 Switch
