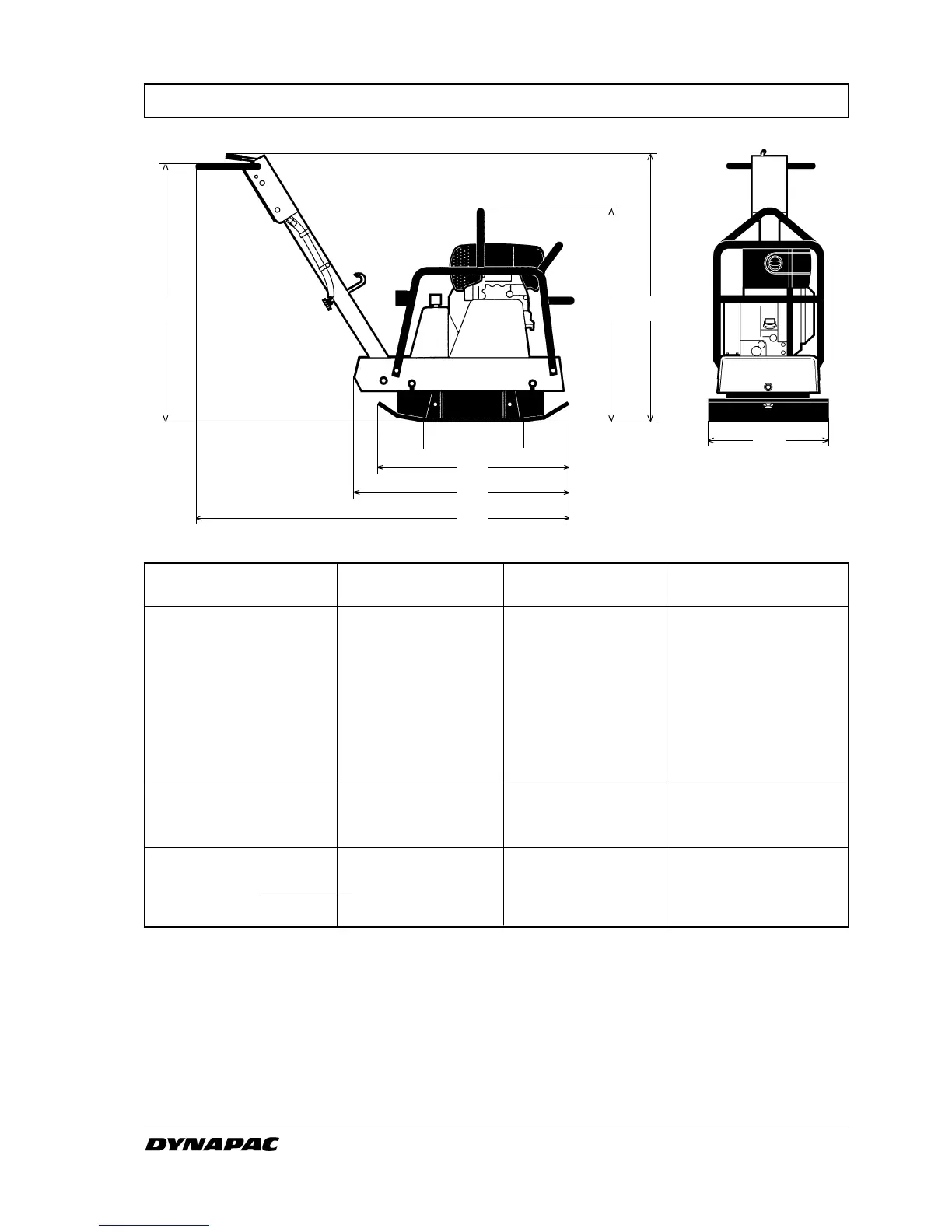

TECHNICAL DATA – DIMENSIONS
LG140 LG160 LG200
A mm (in) 1265 (49.8) 1265 (49.8) 1315 (51.8)
B mm (in) 330
*
) (13.0) 450 (17.7) 500 (19.7)
C mm (in) 1115 (43.9) 1115 (43.9) 1065 (41.9)
D mm (in) 1000 (39.4) 1000 (39.4) 1000 (39.4)
E mm (in) 800 (31.5) 800 (31.5) 780 (30.1)
F mm (in) 765 (30.1) 765 (30.1) 800 (31.5)
G mm (in) 650 (25.6) 650 (25.6) 700 (27.6)
Contact area
m
2
(in
2
) 0,09834 (152.4) 0,1341 (207.9) 0,1735
(268.9)
Accessories Transport device Transport device Transport device
- Polyurethane plate Polyurethane plate
*
)Total width LG140 = 385 mm (15.2 in)
B
E
F
D C
A
G
CONTACT
AREA
L000501A L000502A
