Dynapac LG200 - Daily Maintenance (10 Hours)

20
LG140/160/200 ILG140EN4
MAINTENANCE – SERVICE POINTS
Item in fig. Maintenance see page Comments
1 Check and replenish fuel
4 Check and replenish lube oil 22
Check for oil leakage
Check and tighten engine parts 22
3 Clean / replace air cleaner elements
Every 10 hours of operation (daily)

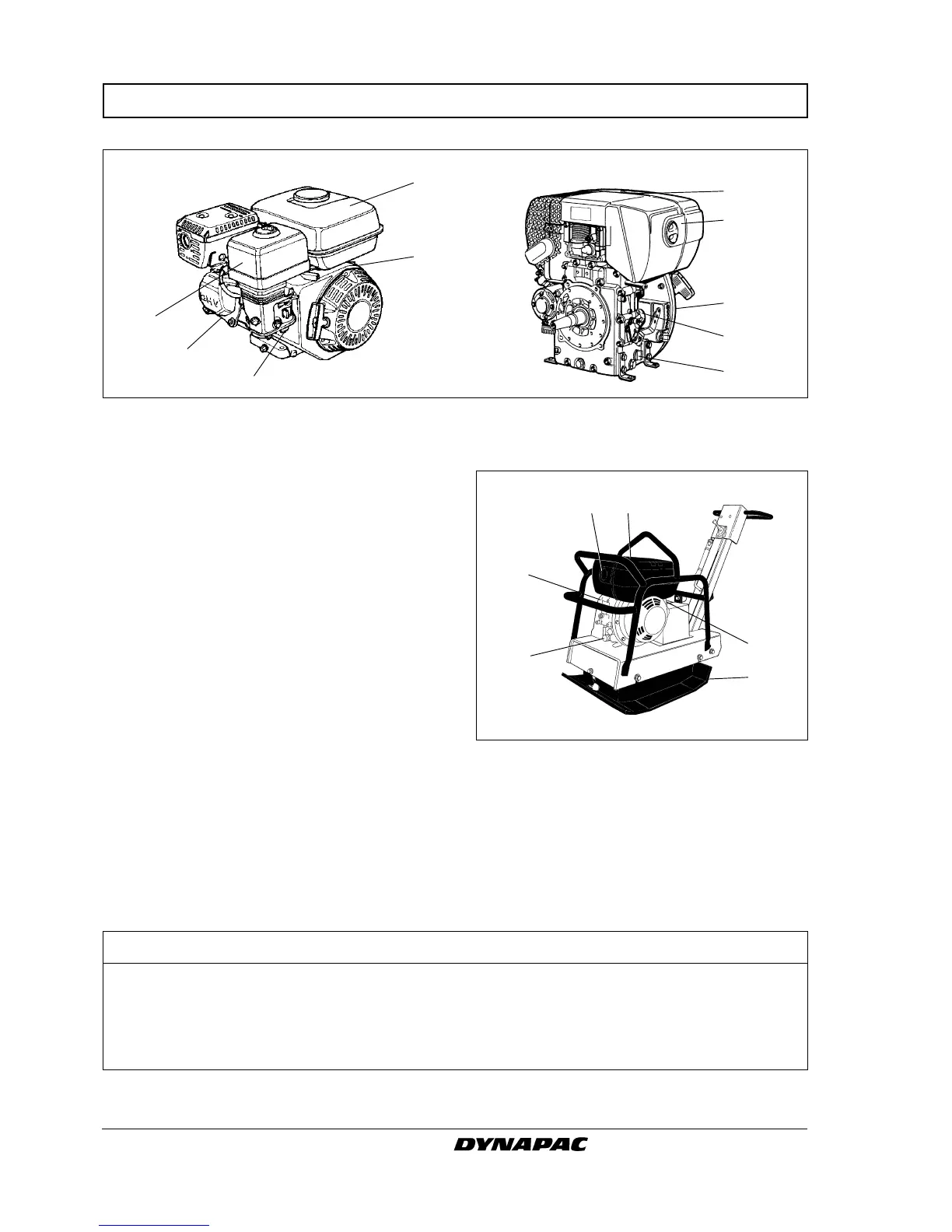

Fig. 1 Honda GX160, GX200 – Hatz 1B20
1. Fuel tank
2. Fuel filter
3. Air filter
4. Engine oil
5. Engine oil filter
6. Oil dipstick
7. Oil drain plug
8. Engine cooling system
Fig. 2
1. Fuel tank
3. Air filter
7. Oil drain plug
9. Eccentric element,
level/drain plug
10. Hydraulic reservoir
11. V-belt
Honda GX160, GX200 – Petrol Engine Hatz 1B20 – Diesel Engine
L000292A
3 1
9
7
1
3
4, 6
2
8
1
3
4, 6
8
5
L000252AL000253A
10
11
