Dynapac LH800 - Maintenance - Service Points Overview; Component Identification; Daily and 20-Hour Maintenance

22 ILH800EN2
Item in fig.1 Maintenance see page Comments
8 Change engine oil 25
4 Clean / replace oil filter See engine manual
2 Clean / replace air cleaner elements See engine manual
Check and adjust the engine valve clearance See engine manual
The first 20 hours of operation
Item in fig.1 Maintenance see page Comments
1 Check and replenish fuel 14
5 Check and replenish engine oil 24
Check for oil leakage
Check and tighten engine parts 24
2 Clean / replace air cleaner elements See engine manual
14 Check transmitter/receiver 24
Every 10 hours of operation / Daily

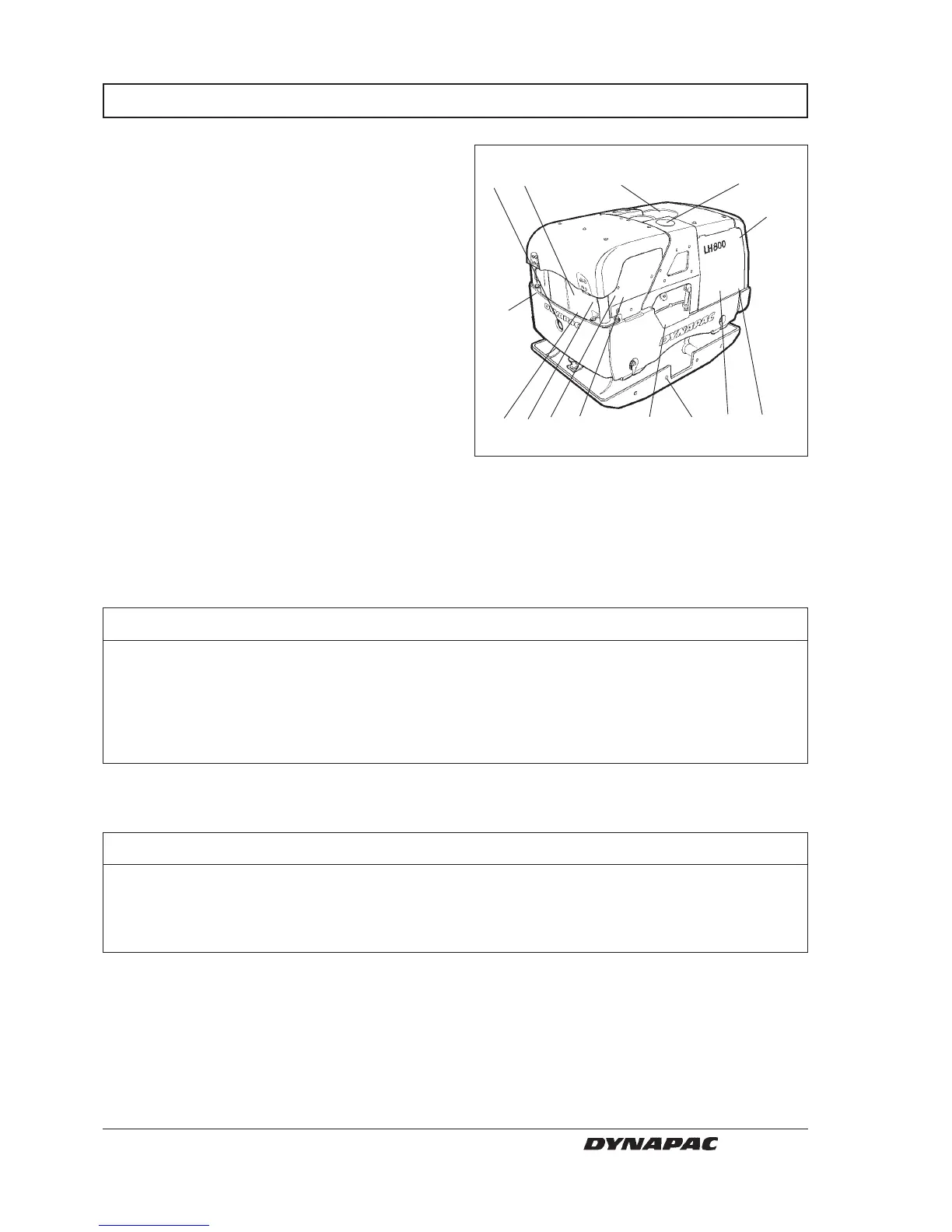

Fig. 1
3542 7
1
1. Fuel tank
2. Intake filter
3. Air filter
4. Engine oil filter
5. Oil dipstick
6. Fuel filter
7. Battery
8. Oil drain plug
9. Eccentric element,
level/drain plug
10. Hydraulic reservoir
11. Hydraulic filter
12. Hose for oil drainage
13. Water separator
14. Transmitter/Receiver
10
12
9
68
11
13
L000323A
14
MAINTENANCE – SERVICE POINTS
