LV-Link A User Manual
©Dyness reserves the copyright of this document
10

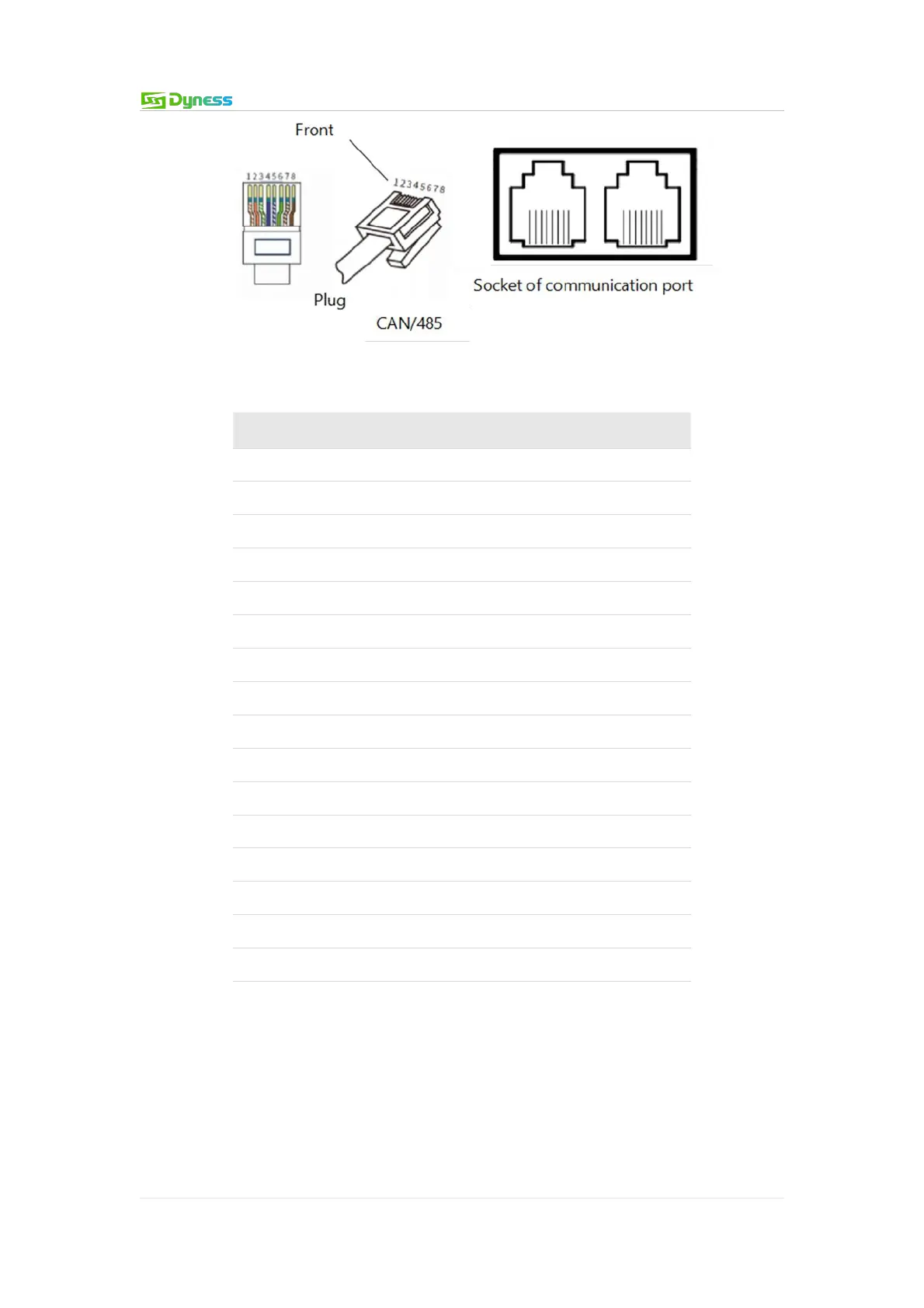

Battery 1 CAN Interface Definition
Foot position
Color
Definition
PIN1
Orange/white
Reserve
PIN2
Orange
Reserve
PIN3
Green/white
Reserve
PIN4
Blue
CAN1H
PIN5
Blue/white
CAN1L
PIN6
Green
Reserve
PIN7
Brown/white
Reserve
PIN8
Brown
Reserve
PIN9
Orange/white
Reserve
PIN10
Orange
Reserve
PIN11
Green/white
Reserve
PIN12
Blue
CAN1H
PIN13
Blue/white
CAN1L
PIN14
Green
Reserve
PIN15
Brown/white
Reserve
PIN16
Brown
Reserve
