LV-Link A User Manual
©Dyness reserves the copyright of this document.
9

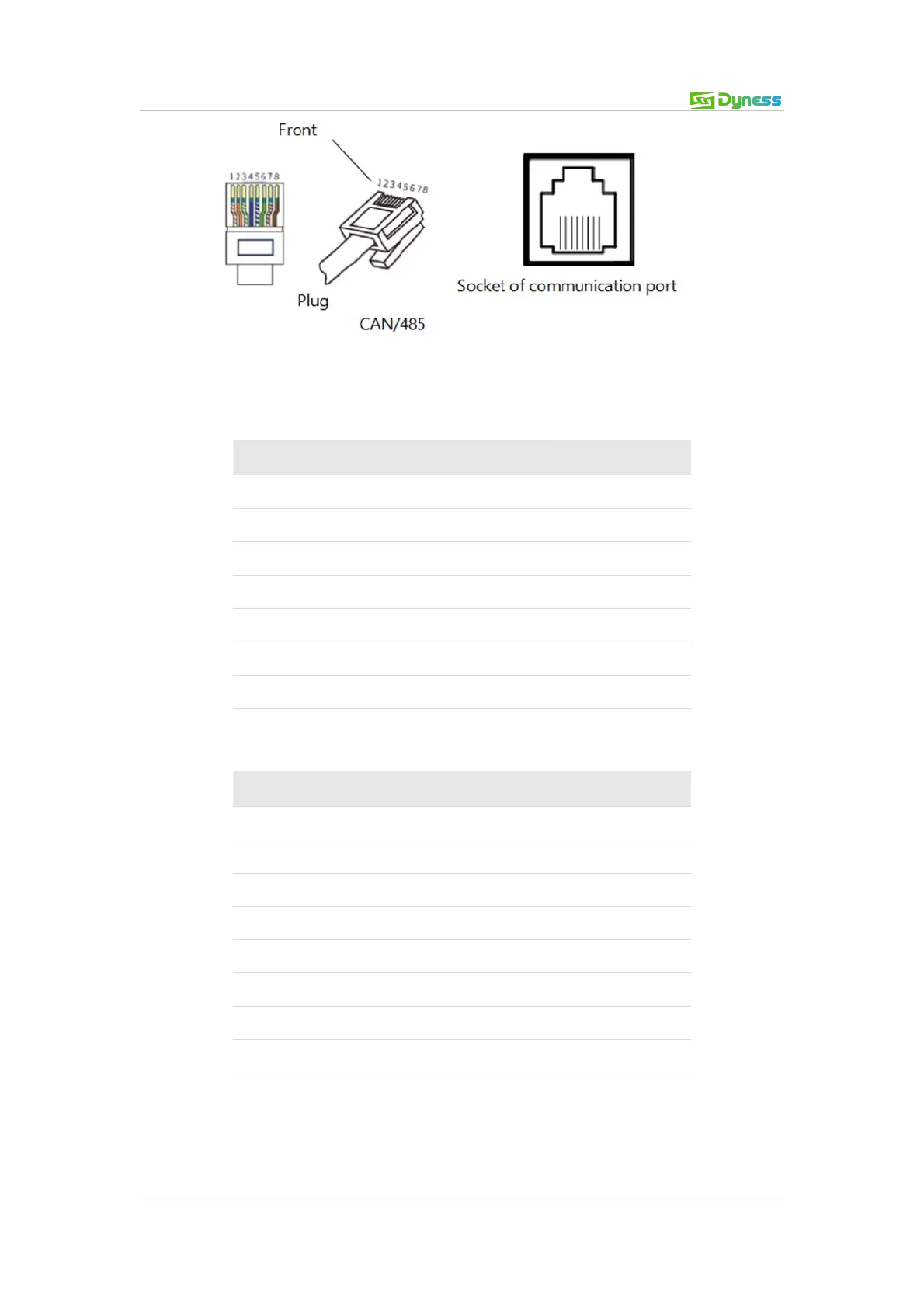

Figure 2-2 CAN/485 Interface Definition
Table 2-5 Inverter CAN Interface Definition
Foot position
Color
Definition
PIN1
Orange/white
Reserve
PIN2
Orange
Reserve
PIN3
Green/white
Reserve
PIN4
Blue
Inverter CANH
PIN5
Blue/white
Inverter CANL
PIN6
Green
Reserve
PIN7
Brown/white
Reserve
Figure 2-6 Inverter RS485 Interface Definition
Foot position
Color
Definition
PIN1
Orange/white
485B
PIN2
Orange
485A
PIN3
Green/white
Reserve
PIN4
Blue
Reserve
PIN5
Blue/white
5V
PIN6
Green
TX
PIN7
Brown/white
RX
PIN8
Brown
GND
