Dyson AM07 Dissambly Instruction

Step 5: Clean the Housing and Intake Holes

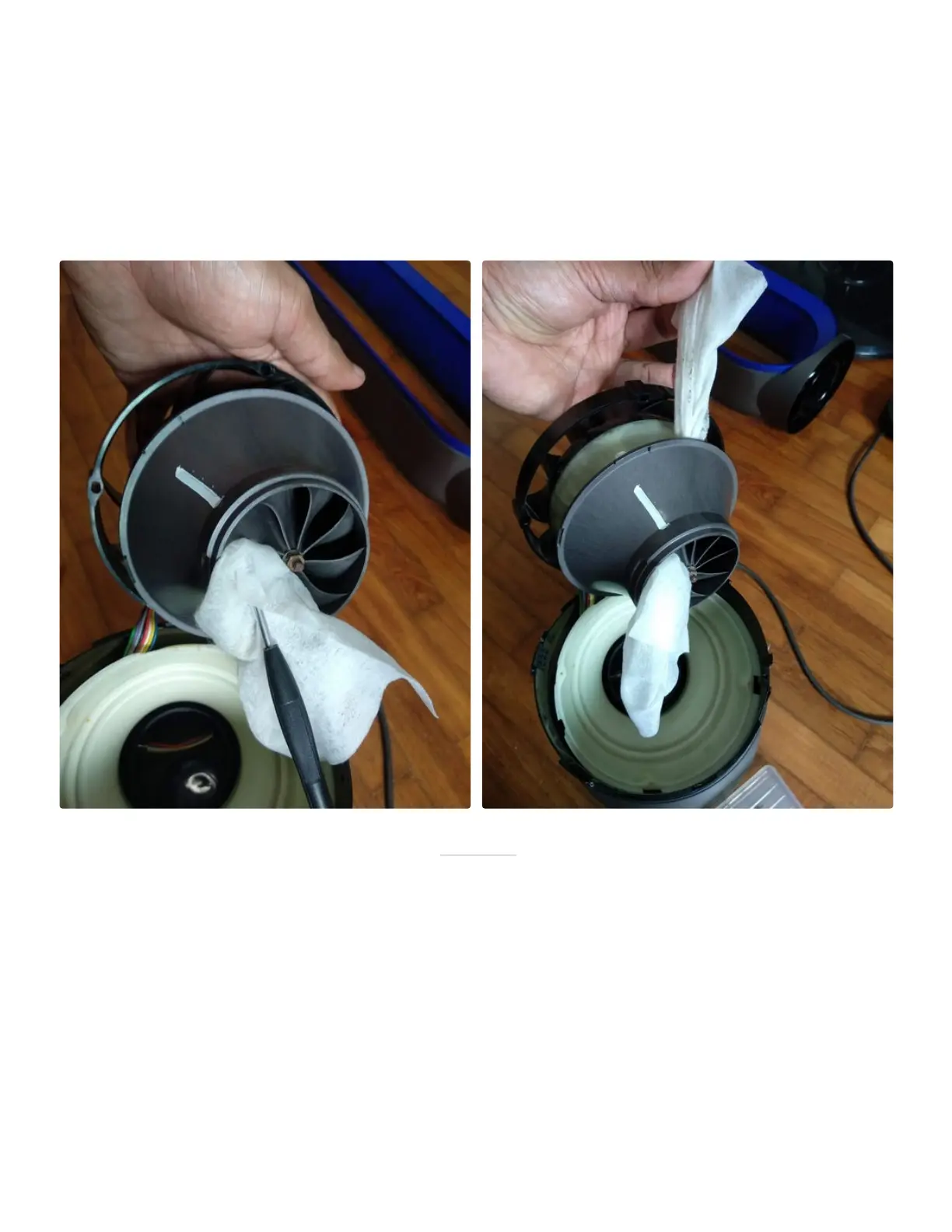

Clean the rotating impeller. One way to do this is to
draw a soft cloth / wet tissue through each channel
with the aid of a screwdriver or blunt stick.
(*recommended*) Take care not to scratch or damage
the impeller in the process.
* Updat e: Ple ase s ee * Updat e : Ple a s e s e e G e rs_v Re ply /Co m mentG e rs_v Re ply /Comme nt
belo w. Impeller may be accide nt a llybelo w. Impeller may be accide nt a lly
dama g ed if t he nut is fo rcibly Undo nedama g ed if t he nut is fo rcibly Undo ne
For an alternate cleaning method, the impeller can be
detached from the motor by further disassembling
the assembly from the back, by unscreing the FOUR
bigger torx screws on top of the stator, exposing the
motor. The impeller can then be washed free of dirt
easily.
Remove the retainer ring for ease of work by slightly prying the three visible snap locks and lifting up the ring at an
angle.
Remove the bottom sponge and clean any visible dirt inside the housing with the aid of a vacuum cleaner.
A bristle brush coupled with a vacuum cleaner will be an eective way of cleaning the air intake holes.
Dyson AM07 Bladeless Fan Disassembly for Cleaning and Maintenance: Page 6

Dyson AM07 Specifications

General

Type	Tower Fan
Air Multiplier Technology	Yes
Oscillation	Yes
Remote Control	Yes
Number of Speed Settings	10
Timer	Yes
Cord Length	1.8 m
Airflow at Max Setting	500 l/s
Power Consumption at Max Setting	56 W
Sleep Timer	Yes
Airflow	500 l/s
Noise Level	64 dB
Oscillation Angle	90 degrees
Height	1007 mm
Weight	2.85 kg
Base Diameter	230 mm
Standby Power Consumption	<0.5W
Color Options	White/Silver
Dimensions	1007 x 230 x 230 mm (H x W x D)
