Dyson AM07 Dissambly Instruction

Very helpful - thanks for the detailed step-by-step and photos. I opted to disassemble the impeller
assembly, including removing the impeller from the motor shaft by unscrewing the nut visible in
your Step 4 photos, and thoroughly washed all the plastic components in hot soapy water. That
adds careful wire routing to the reassembly process but it gets out dirt you just can't reach
otherwise. When I was finished the fan sounded, functioned, and even smelled like new.

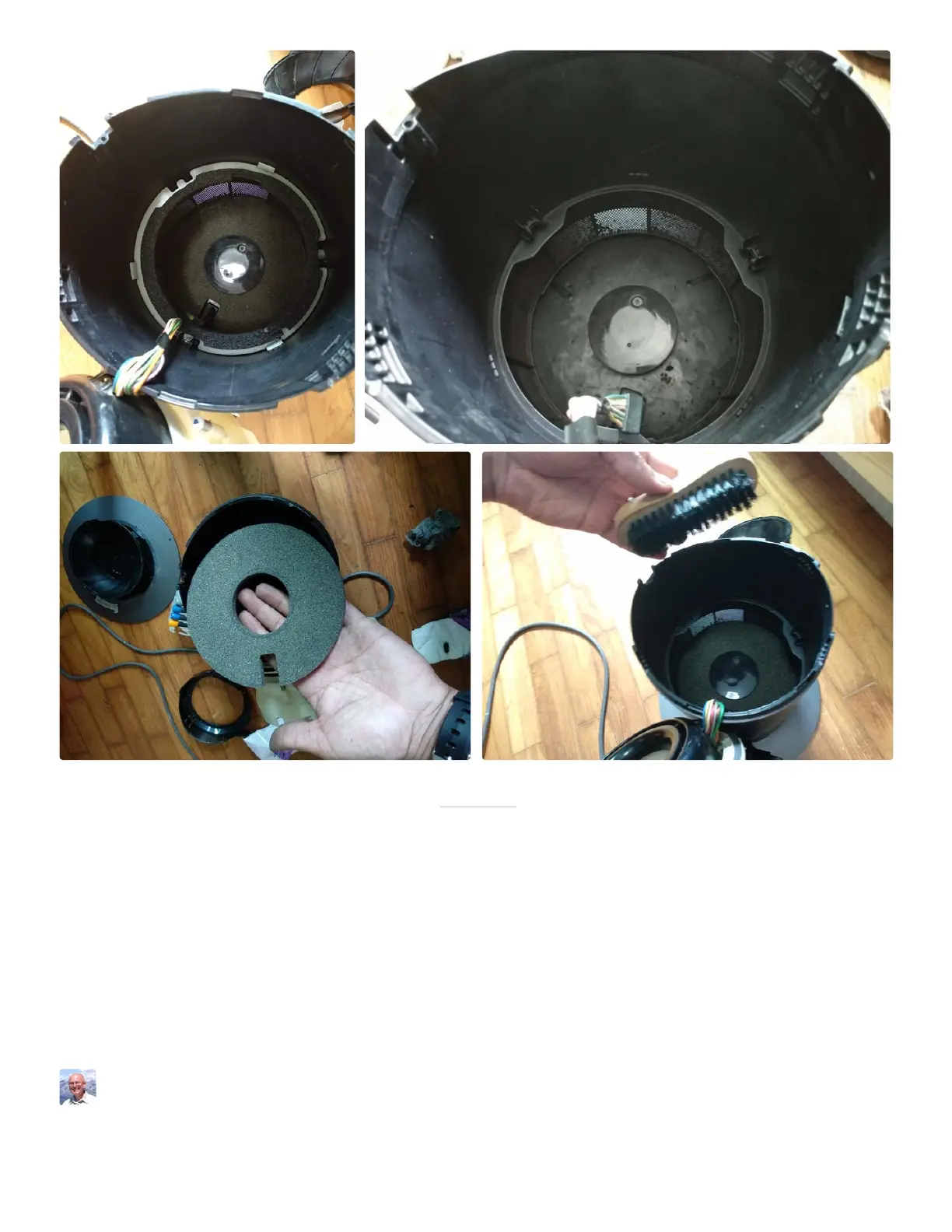

Step 6: Assemble Back Components (Work in Progress)
Assemble all components the same way they were
disassembled. Be sure to ensure they are properly
aligned. Most components are designed to t in only
one way, and any misalignment is noticeable.
There would not be need to force any components. If
you nd something needs to be forced in place, do
check alignment of all the previous parts again.
* the motor assembly sits on three spring loaded pins
that sit on the white circular ring in the previous step.
ensure it is properly aligned and seated.
Dyson AM07 Bladeless Fan Disassembly for Cleaning and Maintenance: Page 7

Dyson AM07 Specifications

General

Type	Tower Fan
Air Multiplier Technology	Yes
Oscillation	Yes
Remote Control	Yes
Number of Speed Settings	10
Timer	Yes
Cord Length	1.8 m
Airflow at Max Setting	500 l/s
Power Consumption at Max Setting	56 W
Sleep Timer	Yes
Airflow	500 l/s
Noise Level	64 dB
Oscillation Angle	90 degrees
Height	1007 mm
Weight	2.85 kg
Base Diameter	230 mm
Standby Power Consumption	<0.5W
Color Options	White/Silver
Dimensions	1007 x 230 x 230 mm (H x W x D)
