Changing/fitting the belt
(machines without brush control)
10
• Turn power off, unplug machine
and allow machine to cool for
1 hour before changing/fitting
belt.
• Ensure soleplate is in correct
position before use.
Remove wand and cyclone assembly
and turn machine upside down.

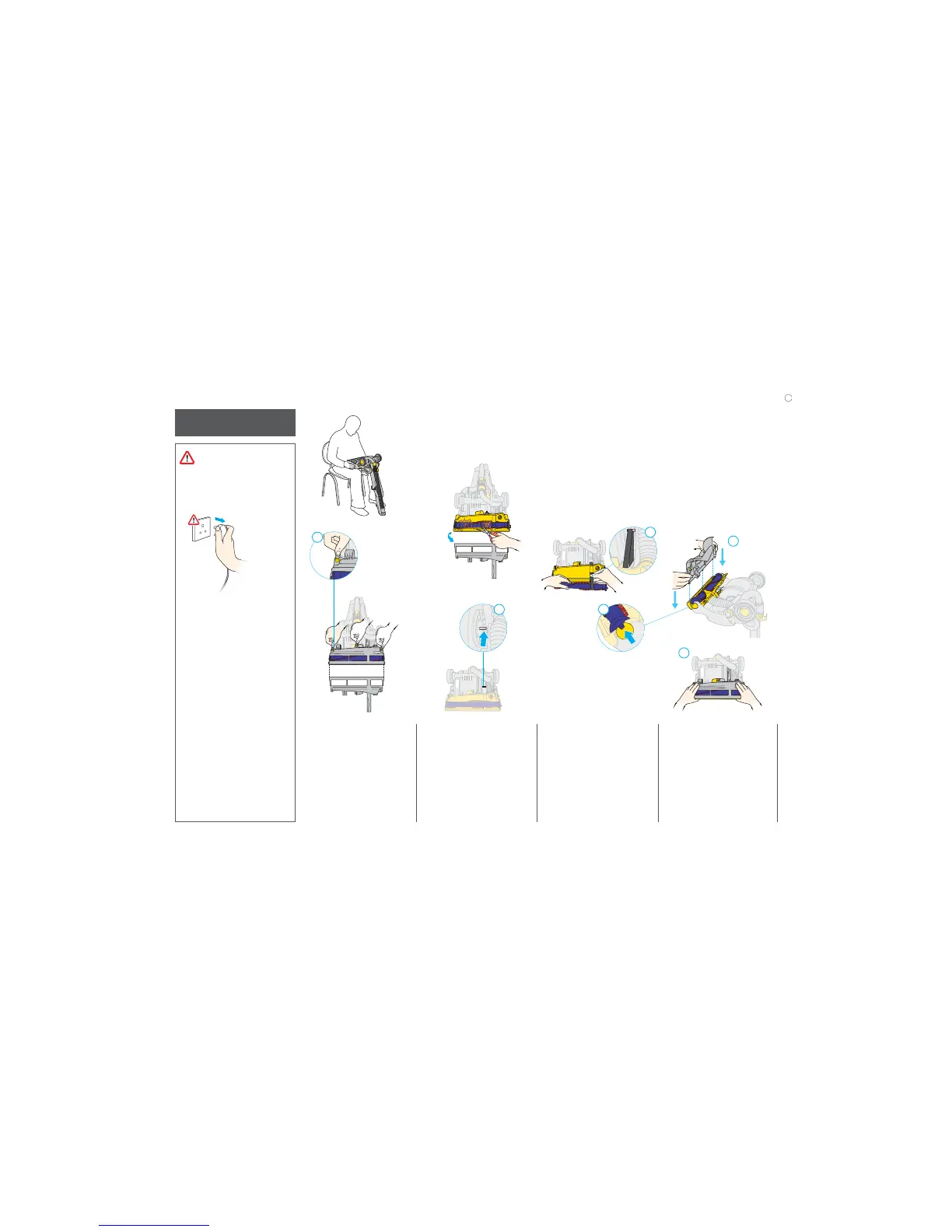

A Undo fasteners using a coin and
remove soleplate.
B Remove fluff and hair from
brushbar and check metal
spindle is clean.
C To replace the belt, remove the
brushbar, loop belt around
brushbar and feed through
hole. Using back of cleaner as a
lever, loop belt around thumb.
Turn the belt 90 degrees, stretch
and release over spindle. Belt
must be free of twists as shown.
D Replace the brushbar and check
end caps are secure. Rotate the
brushbar to centralise belt.
E Rest the 3 tabs on inside of
yellow bumper and replace
soleplate, tightening the
fasteners.
F Ensure soleplate is in correct
position before use.
